Hamm HTC 15
![Hamm](/files/download/image/600x0/fixed_width/e95807c1-fdcc-4bf9-b5e3-6862adc28c95.jpeg)
![Hamm](/files/download/image/600x0/fixed_width/a57c533e-9beb-4a94-8161-034363490496.jpeg)
![Hamm](/files/download/image/600x0/fixed_width/ea8690d8-a42d-4484-932f-5413b2dd6a43.jpeg)
![Hamm](/files/download/image/600x0/fixed_width/8509ec2b-9034-4410-b0a6-c0a158fa9a3a.jpeg)
![Hamm](/files/download/image/600x0/fixed_width/e3430c67-c09d-4efd-9153-afbcc1995d5f.jpeg)
![Hamm](/files/download/image/600x0/fixed_width/ac928677-1ef1-4b9c-9948-a7560b3610c9.jpeg)
![Hamm](/files/download/image/600x0/fixed_width/223f6b0f-fa08-4748-bbc6-8320afcc4426.jpeg)
Make | Hamm |
Model | HTC 15 |
Type | Series HTC |
How can we help?
Description
-
Tip-Over Engine Protection to protect engine
-
High versatility - drum width extensions as standard
-
Easy to transport and maintain
-

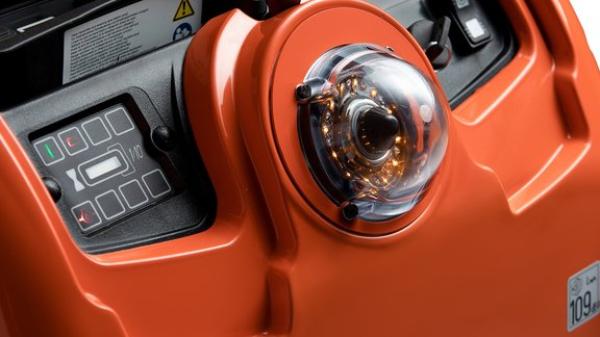

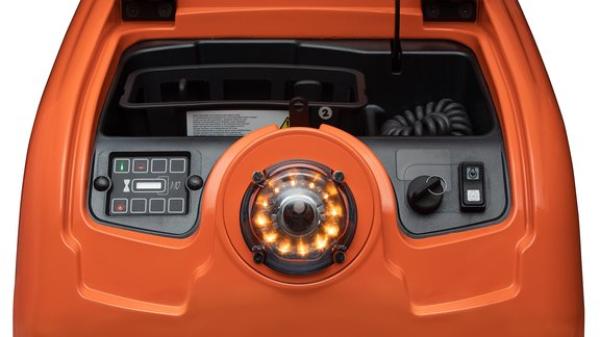

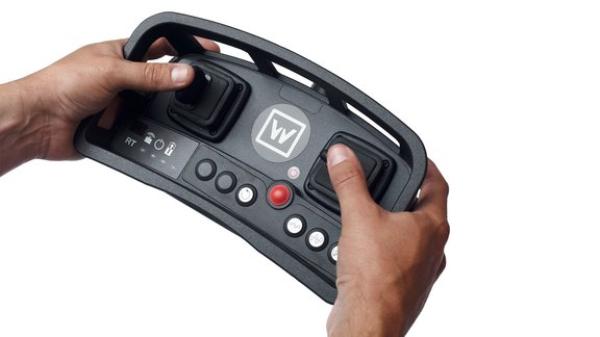

IR remote control with 3 sensors to ensure line of sight
-
Low centre of gravity to lower risk of overturning
Specifications

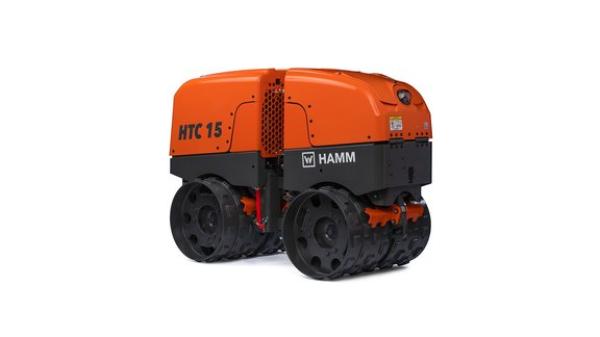

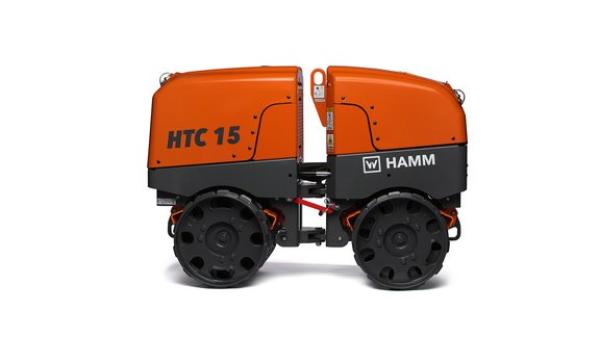

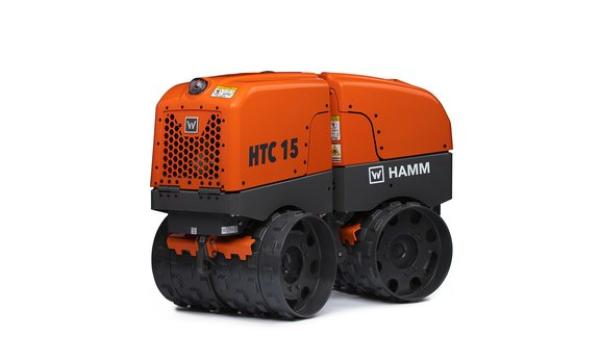

- BASIC DATA - Description: Trench roller with two vibration padfoot drums
- BASIC DATA - Exhaust emissions category: EPA Tier 4
- BASIC DATA - Name: HTC 15
- BASIC DATA - Series: HTC
- DIESEL ENGINE - Cylinders, quantity: 3
- DIESEL ENGINE - Exhaust emission standard: EPA Tier 4
- DIESEL ENGINE - Exhaust gas after-treatment: -
- DIESEL ENGINE - Manufacturer: KOHLER
- DIESEL ENGINE - Model: KDW 1003
- DIESEL ENGINE - Power ISO 14396, HP: 20.07 HP
- DIESEL ENGINE - Power ISO 14396, kW: 14.8 kW
- DIESEL ENGINE - Power ISO 14396, rpm: 3,000 rpm
- DIESEL ENGINE - Power SAE J1349, HP: 19.8 hp
- DIESEL ENGINE - Power SAE J1349, kW: 14.8 kW
- DIESEL ENGINE - Power SAE J1349, rpm: 3,000 rpm
- DRUM DIMENSIONS - Drum diameter, front: 21.7 in
- DRUM DIMENSIONS - Drum diameter, rear: 21.7 in
- DRUM DIMENSIONS - Drum thickness, front: 0.4 in
- DRUM DIMENSIONS - Drum type, front: Padfoot
- DRUM DIMENSIONS - Drum type, rear: Padfoot
- DRUM DIMENSIONS - Drum width, front: 32.3 in
- DRUM DIMENSIONS - Drum width, rear: 32.3 in
- MACHINE DIMENSIONS - Center distance: 39.4 in
- MACHINE DIMENSIONS - Maximum working width: 32.3 in
- MACHINE DIMENSIONS - Total length: 71.9 in
- MACHINE DIMENSIONS - Total width: 32.3 in
- MACHINE DIMENSIONS - Turning radius, inside: 63 in
- SOUND LEVEL - Acoustic power LW(A), measured: 105 db(A)
- SOUND LEVEL - Sound power level L(WA), guaranteed: 109
- TANK CAPACITY/FILLING CAPACITY - Fuel tank, capacity: 6.3 gal
- TRAVEL DRIVE - Climbing ability, without vibration: 50 %
- VIBRATION - Amplitude, front, I: 0.055 in
- VIBRATION - Amplitude, front, II: 0.028 in
- VIBRATION - Amplitude, rear, I: 0.055 in
- VIBRATION - Amplitude, rear, II: 0.028 in
- VIBRATION - Centrifugal force, front, I: 7,695 lbs
- VIBRATION - Centrifugal force, front, II: 15,390 lbs
- VIBRATION - Centrifugal force, rear, I: 7,695 lbs
- VIBRATION - Centrifugal force, rear, II: 15,390 lbs
- VIBRATION - Vibration frequency, front: 2,520 VPM
- VIBRATION - Vibration frequency, rear: 2,520 VPM
- WEIGHTS - Axle load, front: 1,615 lbs
- WEIGHTS - Axle load, rear: 1,615 lbs
- WEIGHTS - Static linear load, front: 49.8 lbs/in
- WEIGHTS - Static linear load, rear: 49.8
