PRINOTH PANTHER T8
| Make | PRINOTH |
| Model | PANTHER T8 |
| Type | Prinoth Tracked Vehicles |
How can we help?
Description

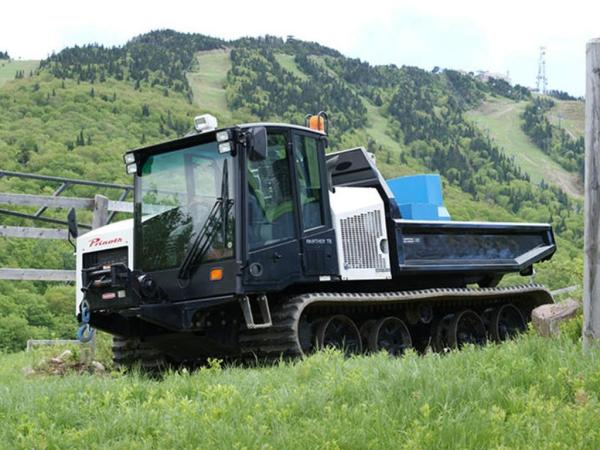

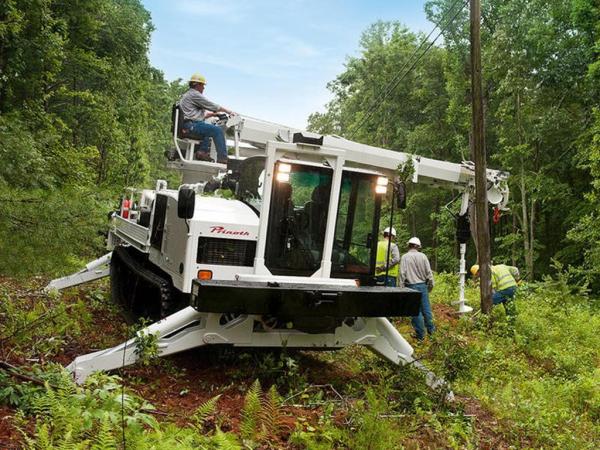

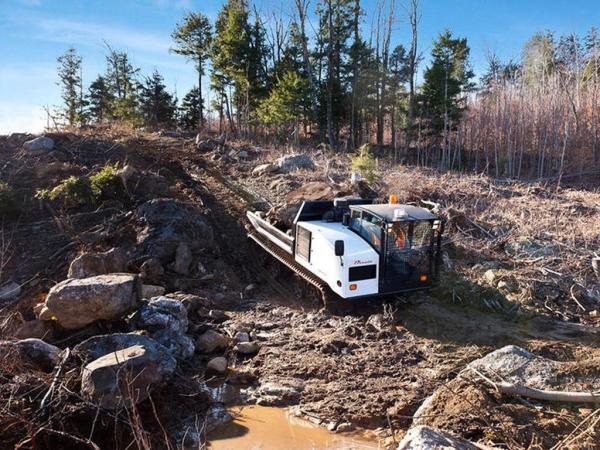

The powerful PRINOTH PANTHER T8 tracked vehicle is the most versatile rubber tracked crawler carrier that fits just about any implement to its 860 mm (34 in.) truck-inspired chassis with little to no modification. The PANTHER T8 effortlessly carries up to 7,260 kg (16,000 lb) worth of heavy equipment, materials and supplies to any worksite while exerting very low ground pressure.
Specifications
- ropstype: Enclosed

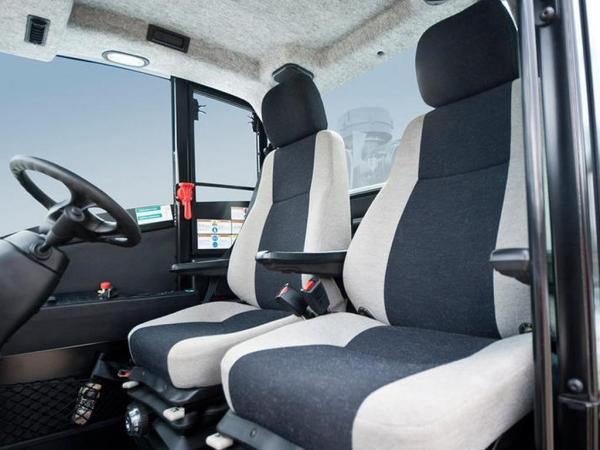

- TECHNICAL DATA - Cab configuration : Spacious wide cab – 1 person / Option: Narrow cab - 1 person
- TECHNICAL DATA - Engine Type / Emission Standard: Caterpillar C7.1 Diesel engine EPA Tier 4 Final / EU Stage V
- TECHNICAL DATA - Gradeability - Uphill & Downhill / Sidehill: 60% (31°) / 40% (21.8°)
- TECHNICAL DATA - Ground Pressure - Vehicle Only: 19.31 kPa (2.80 psi)
- TECHNICAL DATA - Maximum Speed: 11.5 km/h (7.15 mph)
- TECHNICAL DATA - Operating Weight - Unloaded Dump Body : 10,845 kg (23,910 lb)
- TECHNICAL DATA - Overall Dimensions - mm (inches): Width: 2,412 (95) / Length: 5,681 (223.7) / Height: 2,555 (100.6)
- TECHNICAL DATA - Payload Bare Chassis : 8,681 kg (19,138 lb)

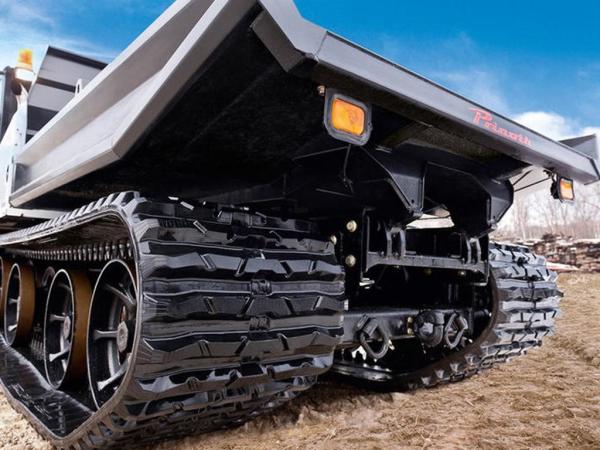

- TECHNICAL DATA - Payload Dump Body: 7,257 kg (16,000 lb)
- TECHNICAL DATA - Power @ 2200 rpm : 168 kw (225 hp)

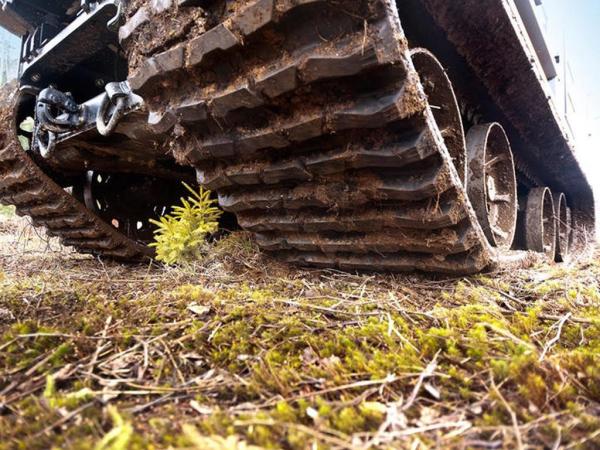

- TECHNICAL DATA - Track Type: Metal-embedded rubber track 700 mm (27.6 in)
