PRINOTH PANTHER T16
| Make | PRINOTH |
| Model | PANTHER T16 |
| Type | Prinoth Tracked Vehicles |
How can we help?
Description
YOUR TRACKED CARRIER WITH 15,195 KG (33,500 LB)

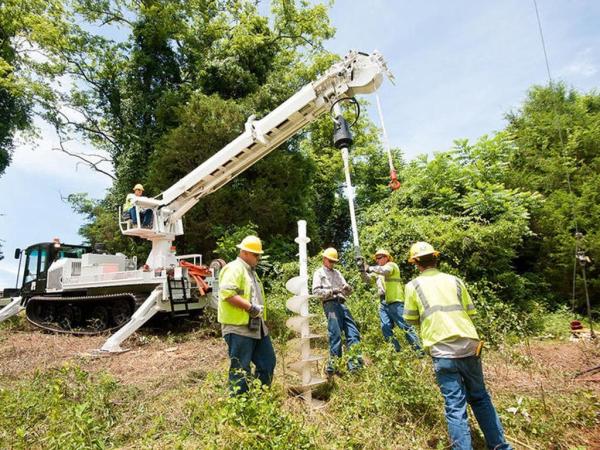

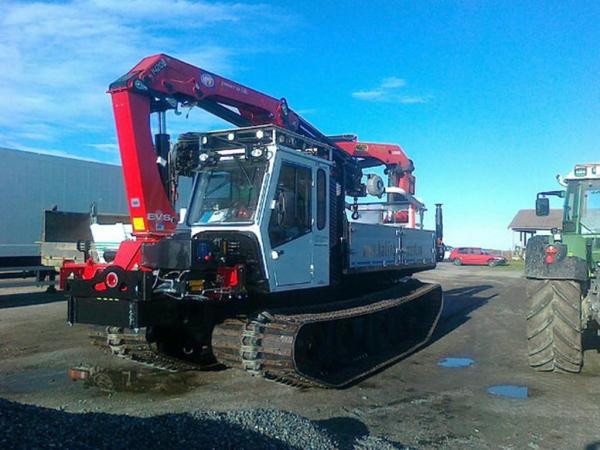

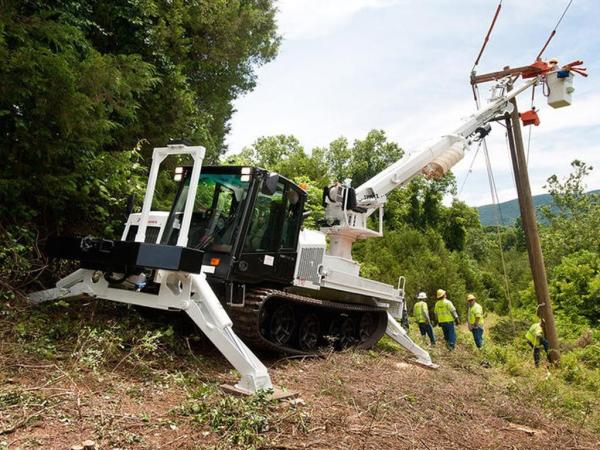

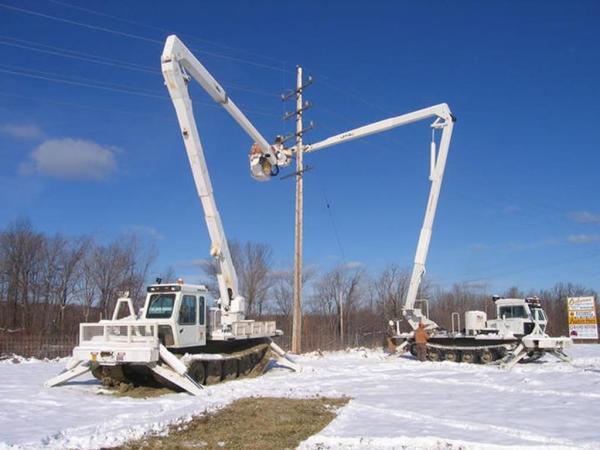

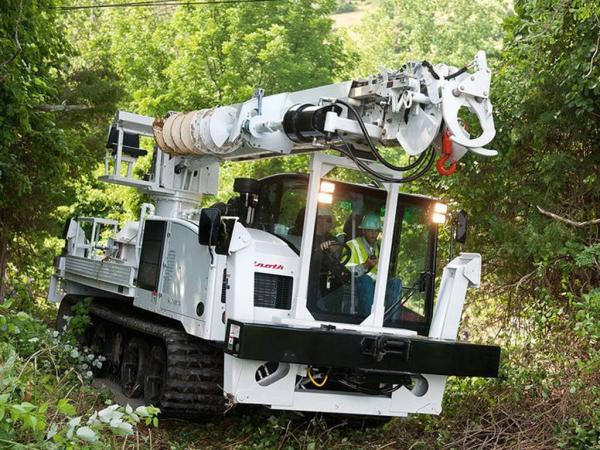

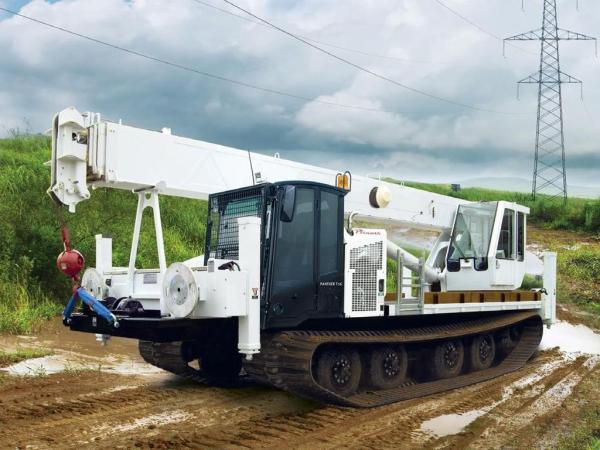

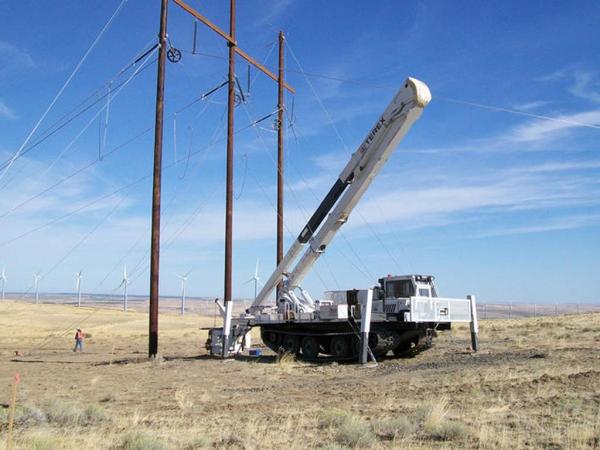

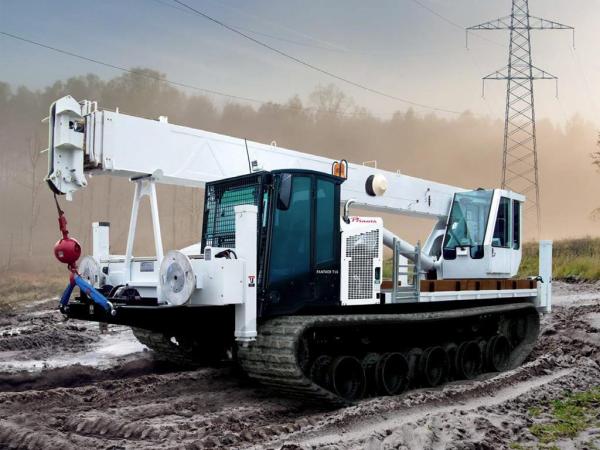

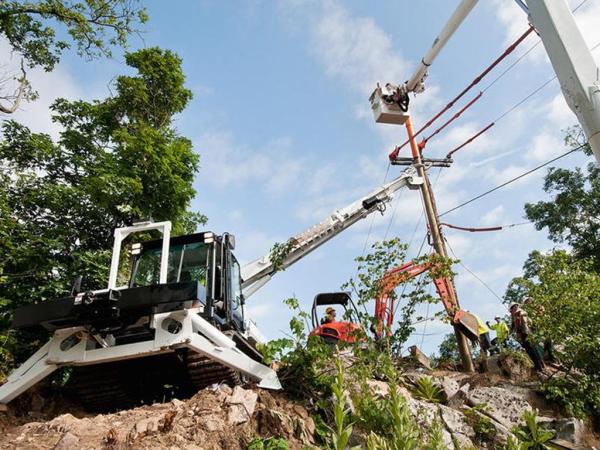

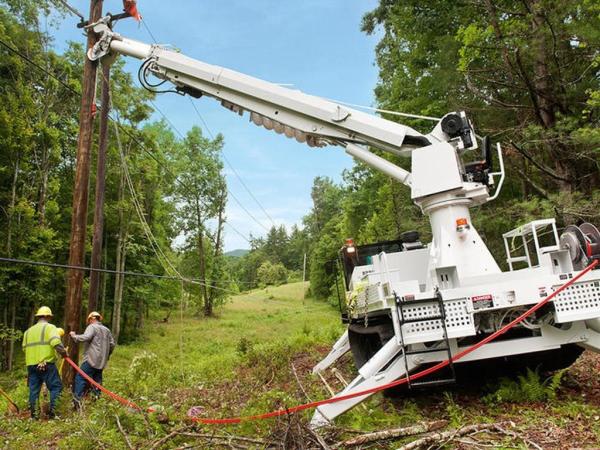

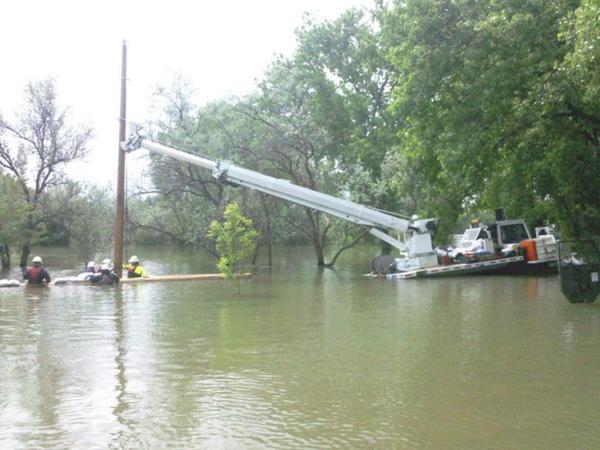

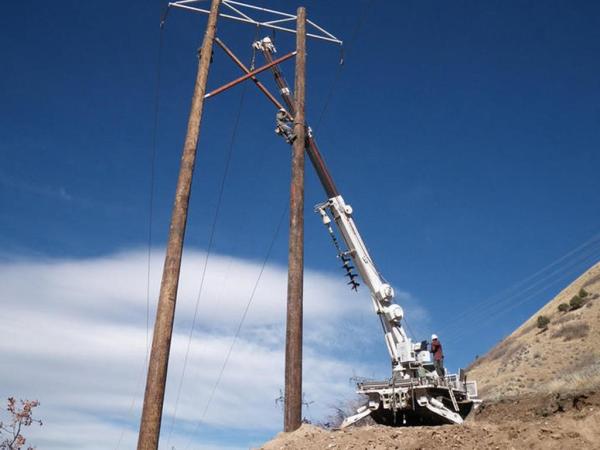

The PANTHER T16 tracked carrier vehicle hauls digger derricks, aerial devices, cranes, drills, and more into the most challenging terrain where ground conditions prohibit the use of a wheeled vehicle. Operators can more easily complete work on rugged terrain as well as in locations that demand low ground pressure and traction. Equipped with the latest microcontroller technology, that monitors everything from oil pressure and vehicle parameters to outside air temperature, the PANTHER T16 is a reliable work tool backed by a powerful Tier 4 Final engine and enhanced safety features.
Specifications
- DDENT TRACKS TECHNICAL DATA - Cab Configuration: 1-person cabin
- DDENT TRACKS TECHNICAL DATA - Controls: Microcontroller, steering wheel, progressive speed control
- DDENT TRACKS TECHNICAL DATA - Engine Type / Emission Standard: Caterpillar C7.1 Acert Turbo diesel / EU Stage IV (EPA Tier 4 Final)
- DDENT TRACKS TECHNICAL DATA - Gradeability - Uphill & Downhill / Sidehill: 60% (31°) / 40% (21.8°)
- DDENT TRACKS TECHNICAL DATA - Gross Vehicle Weight Rating (GVWR) : 30,708 Kg (67,700 lb)
- DDENT TRACKS TECHNICAL DATA - Ground pressure (basic vehicle): 135 g/cm² (1.92 psi)
- DDENT TRACKS TECHNICAL DATA - Maximum Speed: 13 km/h (8 mph)
- DDENT TRACKS TECHNICAL DATA - Overall Dimensions - mm (inches): Width: 3,164 (125) / Length: 7,948 (313) / Height: 2,876 (113)
- DDENT TRACKS TECHNICAL DATA - Power @ 2200 rpm / Torque @ 1400 rpm: 205 kW (275 HP) / 1,257 N·m (927 lb·ft)
- DDENT TRACKS TECHNICAL DATA - Safety Features: ROPS & FOPS
- DDENT TRACKS TECHNICAL DATA - Shipping Weight: 12,549 kg (27,667 lb)
- DDENT TRACKS TECHNICAL DATA - Track Type: D-dent, hardened steel
- DUMP BODY RUBBER TRACKS TECHNICAL DATA - Cab Configuration: 1-person cabin
- DUMP BODY RUBBER TRACKS TECHNICAL DATA - Controls: Micro-controller, steering wheel, progressive speed control
- DUMP BODY RUBBER TRACKS TECHNICAL DATA - Engine Type / Emission Standard: Caterpillar C7.1 Acert Turbo diesel/EU Stage IV (EPA Tier 4 Final)
- DUMP BODY RUBBER TRACKS TECHNICAL DATA - Gradeability - Uphill & Downhill / Sidehill: 60% (31°) / 40% (21.8°)
- DUMP BODY RUBBER TRACKS TECHNICAL DATA - Ground Pressure (basic vehicle): 261 g/cm² (3.71 psi)
- DUMP BODY RUBBER TRACKS TECHNICAL DATA - Maximum Speed: 13 km/h (8 mph)
- DUMP BODY RUBBER TRACKS TECHNICAL DATA - Overall Dimensions - mm (inches): Width: 2,980 (117) / Length: 8,141 (321) / Height: 2,869 (113)
- DUMP BODY RUBBER TRACKS TECHNICAL DATA - Payload: 15,195 kg (33,500 lb)
- DUMP BODY RUBBER TRACKS TECHNICAL DATA - Power @ 2200 rpm / Torque @ 1400 rpm: 225 kW (300 HP) / 1,274 N·m (939 lb·ft)
- DUMP BODY RUBBER TRACKS TECHNICAL DATA - Safety Features: ROPS & FOPS
- DUMP BODY RUBBER TRACKS TECHNICAL DATA - Shipping Weight: 18,397 kg (40,558 lb)
- DUMP BODY RUBBER TRACKS TECHNICAL DATA - Track Type: Metal-embedded rubber track (endless)
- ropstype: Enclosed
- RUBBER TRACKS TECHNICAL DATA - Cab Configuration: 1-person cabin
- RUBBER TRACKS TECHNICAL DATA - Controls: Microcontroller, steering wheel, progressive speed control
- RUBBER TRACKS TECHNICAL DATA - Engine Type / Emission Standard: Caterpillar C7.1 Acert Turbo diesel / EU Stage IV (EPA Tier 4 Final)
- RUBBER TRACKS TECHNICAL DATA - Gradeability - Uphill & Downhill / Sidehill: 60% (31°) / 40% (21.8°)
- RUBBER TRACKS TECHNICAL DATA - Gross Vehicle Weight Rating (GVWR) : 34,019 Kg (75,000 lb)
- RUBBER TRACKS TECHNICAL DATA - Ground Pressure (basic vehicle): 219 g/cm² (3.11 psi)
- RUBBER TRACKS TECHNICAL DATA - Maximum Speed: 13 km/h (8 mph)
- RUBBER TRACKS TECHNICAL DATA - Overall Dimensions - mm (inches): Width: 2,980 (113) / Length: 7,966 (314) / Height: 2,869 (113)
- RUBBER TRACKS TECHNICAL DATA - Power @ 2200 rpm / Torque @ 1400 rpm: 205 kW (275 HP) / 1,257 N·m (927 lb·ft)
- RUBBER TRACKS TECHNICAL DATA - Safety Features: ROPS & FOPS
- RUBBER TRACKS TECHNICAL DATA - Shipping Weight: 15,434 Kg (34,027 lb)
- RUBBER TRACKS TECHNICAL DATA - Track Type: Metal-embedded rubber track (endless)
