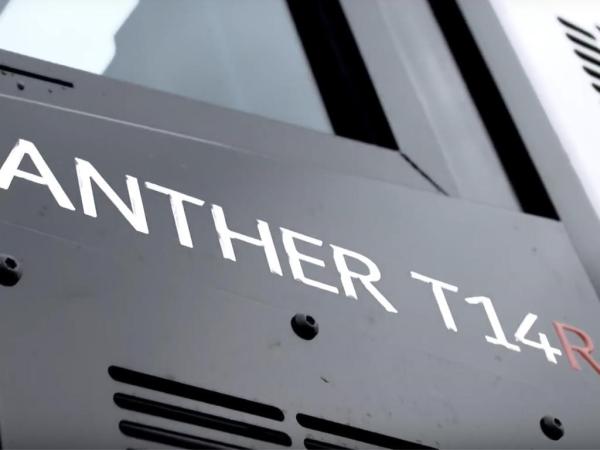

PRINOTH PANTHER T14R
| Make | PRINOTH |
| Model | PANTHER T14R |
| Type | Prinoth Tracked Vehicles |
How can we help?
Description
THE BEST IS NOW EVEN BETTER!

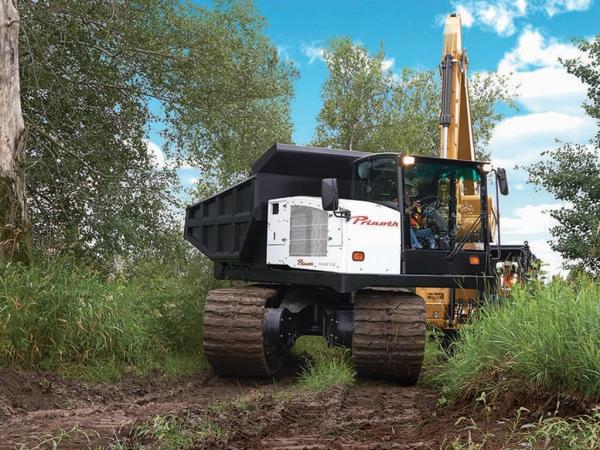

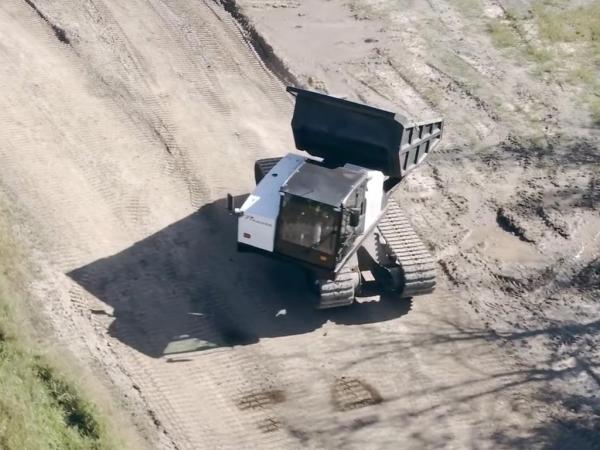

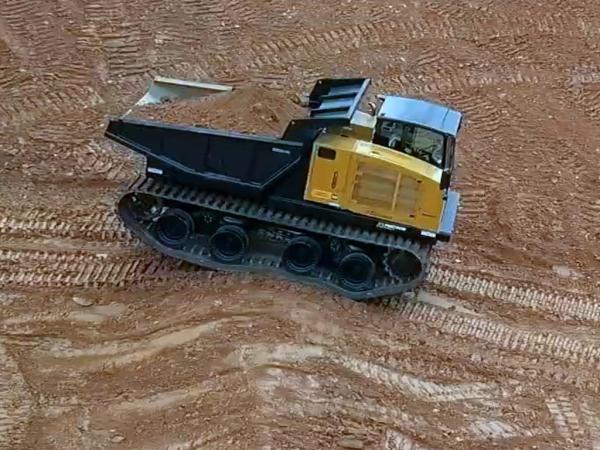

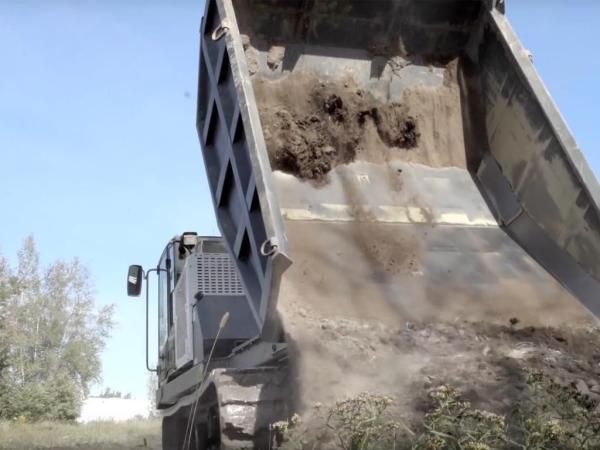

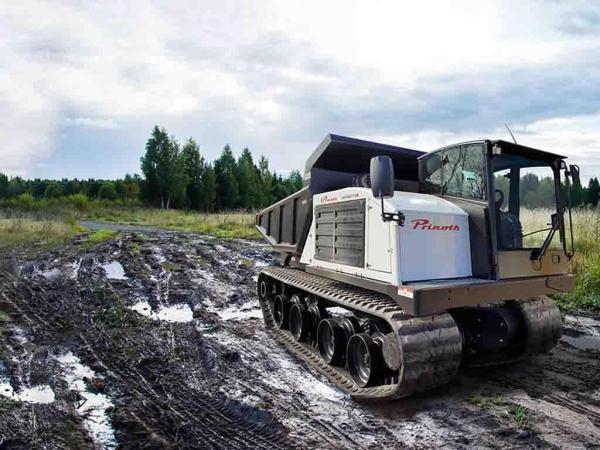

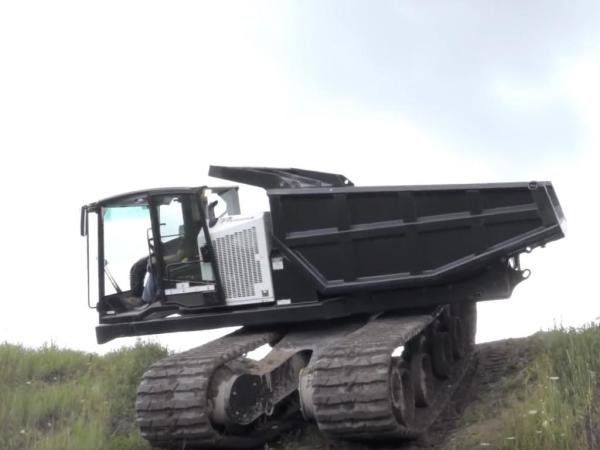

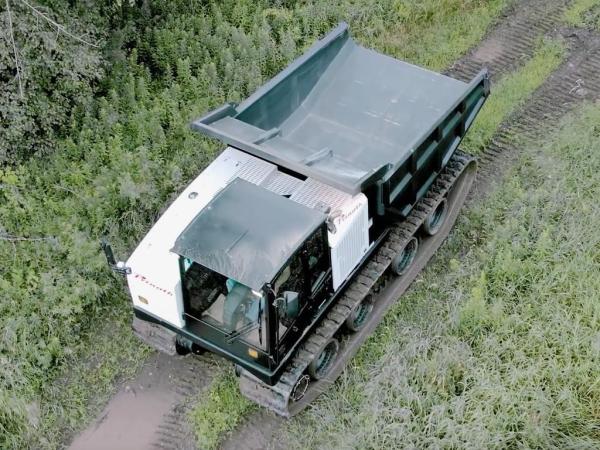

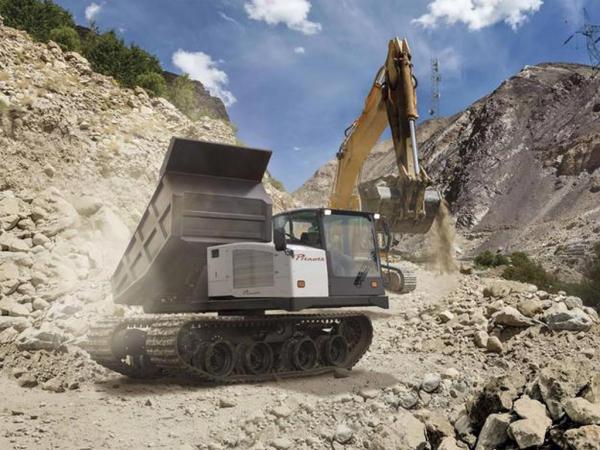

After redefining the dumper category market, PRINOTH sets yet again a new standard, by increasing the PANTHER T14R's legendary speed and power, while adding a host of impressive new features designed to boost uptime and operator performance with the new version of its large tracked rotating dumper. With its 13,200 kg (29,100 lb.) payload capacity, this rotating rubber tracked dumper allows contractors to work in tight, sensitive areas where other vehicles do not have access. The T14R’s overall design offers superior visibility through unrestricted cab views for increased safety for operators and other jobsite workers. Without sacrificing power, the new generation of PANTHER vehicles is now driven by CAT’s double-label engine model C7.1 EPA Tier 4 Final/EUROMOT Stage V, supporting PRINOTH’s Clean Motion philosophy for sustainability. Offering one of PRINOTH's patent-pending innovation called a direction reset, which essentially allows the operator to reset the vehicle’s upper and lower portions’ alignment (front to back) by simply pushing a button, the T14R allows the continuous rotation of the upper portion of the vehicle independent from the undercarriage.
Specifications
- ropstype: Enclosed
- TECHNICAL DATA - :
- TECHNICAL DATA - Cab configuration : 1-person wide cab
- TECHNICAL DATA - Controls : Microcontroller with color display, steering wheel, forward-neutral-reverse switch and progressive speed pedal and throttle
- TECHNICAL DATA - Gradeability - Uphill & Downhill / Sidehill: 27% (15°) / 27% (15°)
- TECHNICAL DATA - Ground pressure basic / loaded vehicle : 274 g/cm² (3.90 psi) / 495 g/cm² (7.04psi)
- TECHNICAL DATA - Maximum speed unloaded : 13.5 km/h (8.4 mph)
- TECHNICAL DATA - Overall Dimensions - mm (inches): Width: 2,570 mm (101.2 in) / Length: 5,936 mm (233.7 in) / Height: 3,257 mm (123.2 in)
- TECHNICAL DATA - Payload : 13,200kg (29,100 lb)
- TECHNICAL DATA - Power @ 2200 rpm / Torque @ 1400 rpm : 205 kw (275 hp) / 1,257 N·m (927 lb·ft)
- TECHNICAL DATA - Safety features : ROPS & FOPS (option), Direction Reset, Side & Rear View Cameras
- TECHNICAL DATA - Shipping weight : 16,630 kg (36,663 lb)

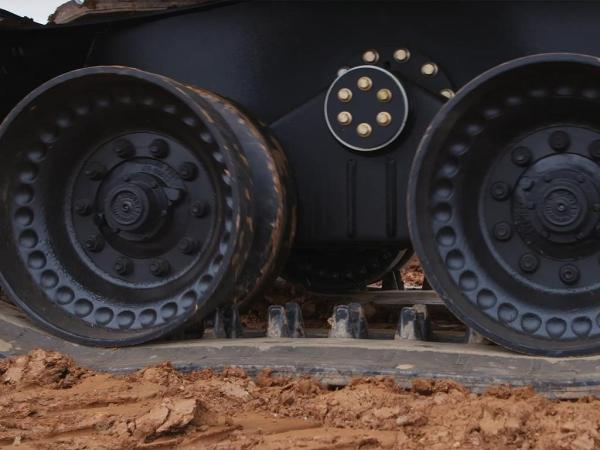

- TECHNICAL DATA - Track Type: Metal-embedded rubber tracks (endless)
