PRINOTH PANTHER T12
| Make | PRINOTH |
| Model | PANTHER T12 |
| Type | Prinoth Tracked Vehicles |
How can we help?
Description
NOW 35% FASTER FOR SUPERIOR PRODUCTIVITY LEVELS

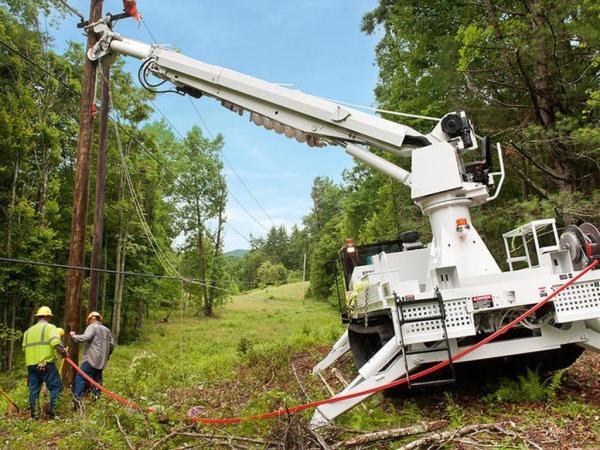

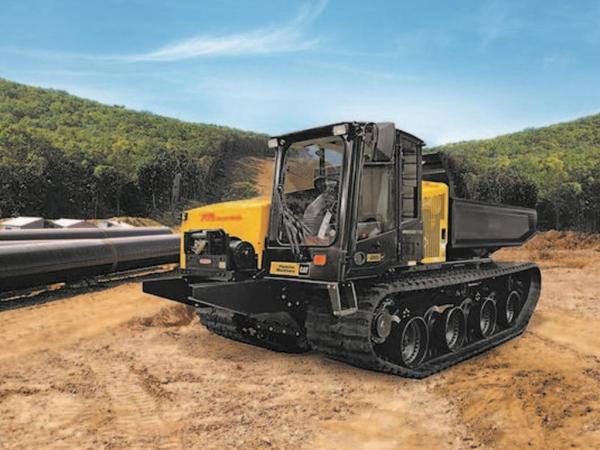

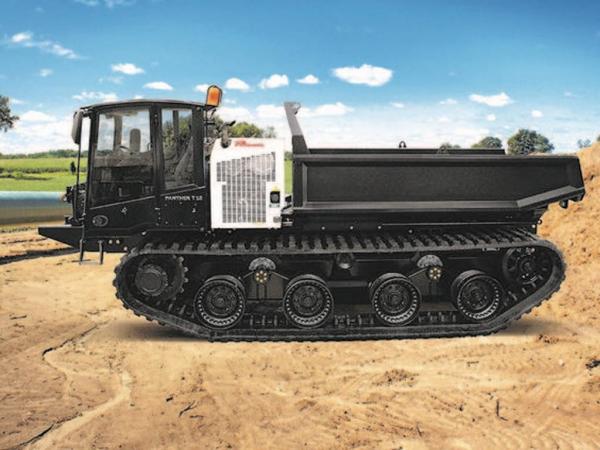

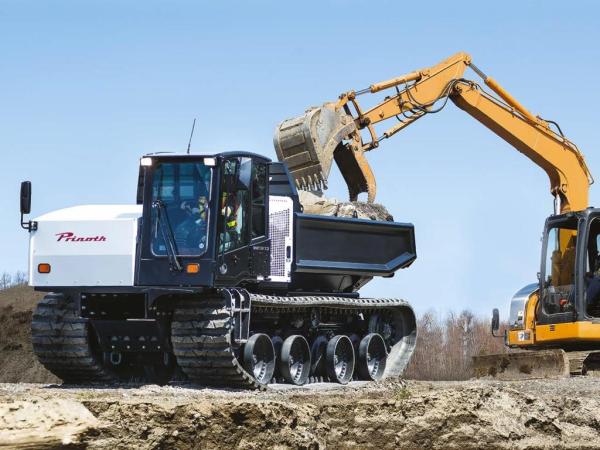

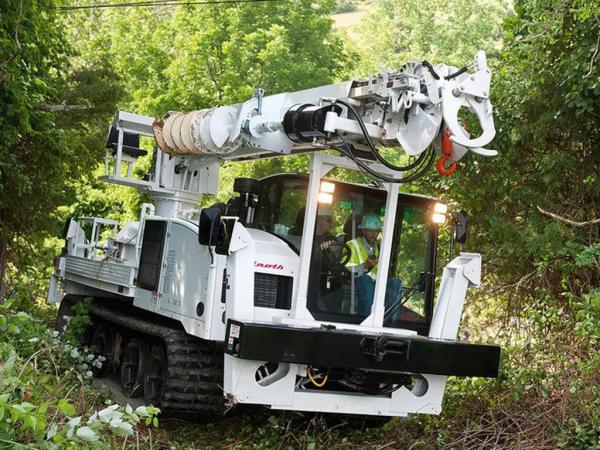

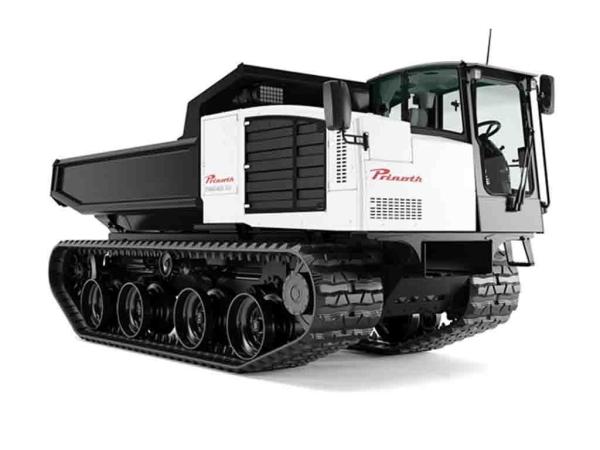

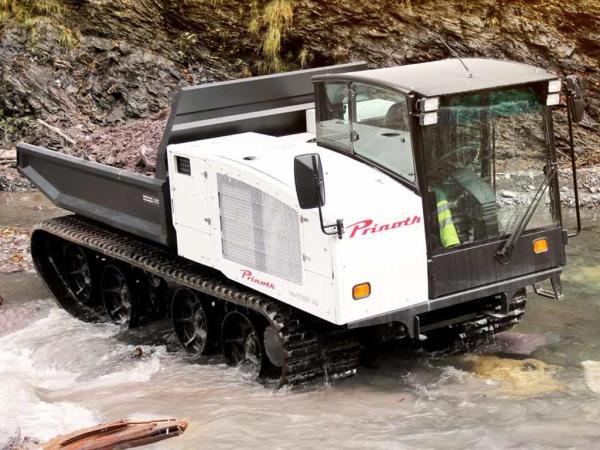

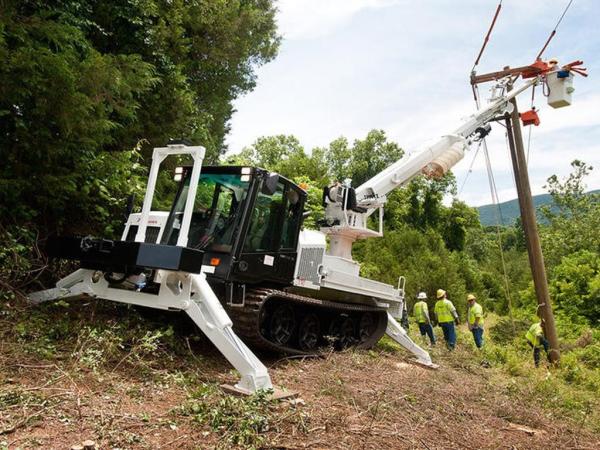

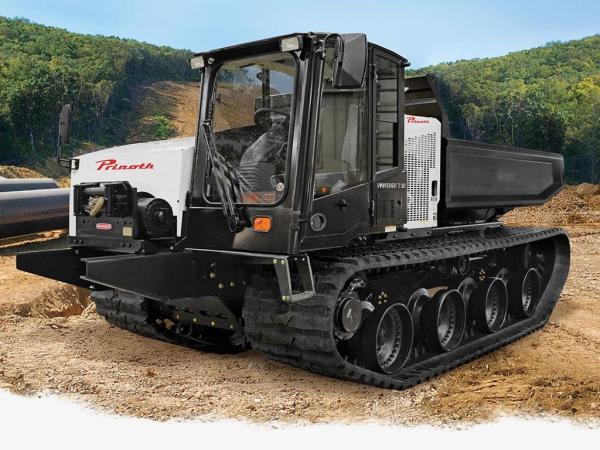

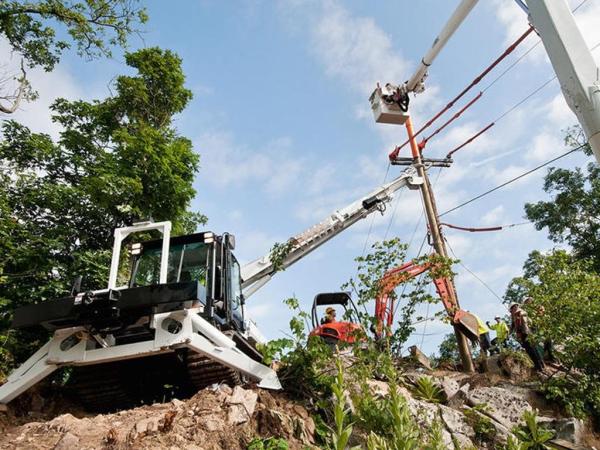

Prinoth's PANTHER T12 crawler carrier is a powerful and versatile tracked vehicle. Just about any implement can be fitted to the PANTHER’s 860 mm (34 in.) truck-inspired chassis with little to no modifications, making installation simple and easy. The PANTHER T12 effortlessly carries up to 11 340 kg (25 000 lb) worth of heavy equipment, materials and supplies out to the worksite at up to 13.5 km/h (8.4 mph) while exerting very low ground pressure.
Specifications
- ropstype: Enclosed
- TECHNICAL DATA - Cab configuration : Narrow cab – 1 person / Option: Spacious wide cab – 1 person (w Dump Body only)
- TECHNICAL DATA - Engine Type / Emission Standard: Caterpillar C7.1 Diesel engine EPA Tier 4 Final / EU Stage V
- TECHNICAL DATA - Gradeability - Uphill & Downhill / Sidehill: 60% (31°) | 40% (21.8°)
- TECHNICAL DATA - Ground Pressure - Vehicle Only: 24.13 kPa (3.50 psi)
- TECHNICAL DATA - Maximum Speed: 13.5 km/h (8.4 mph)
- TECHNICAL DATA - Operating Weight - Unloaded Dump Body : 14,820 kg (32,673 lb)
- TECHNICAL DATA - Overall Dimensions - mm (inches): Width: 2,570 (101.2) | Length: 6,107 (240.4) | Height: 2,918 (114.9)
- TECHNICAL DATA - Payload Bare Chassis : 13,060 kg (28,793 lb)
- TECHNICAL DATA - Payload Dump Body: 11,340 kg (25,000 lb)
- TECHNICAL DATA - Power @ 2200 rpm : 186.5 kW (250 HP)
- TECHNICAL DATA - Track Type: Metal-embedded rubber track 750 mm (29.5 in)
