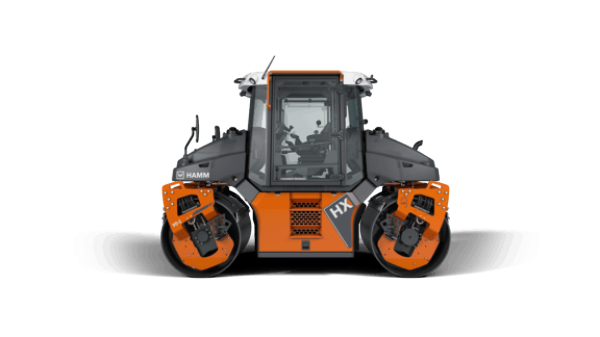

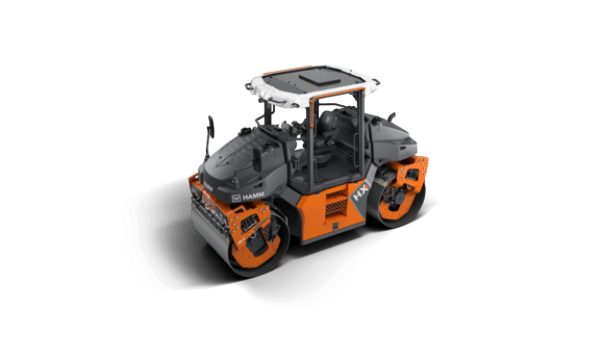

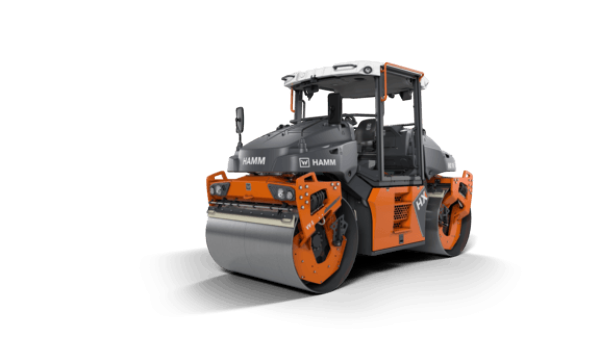

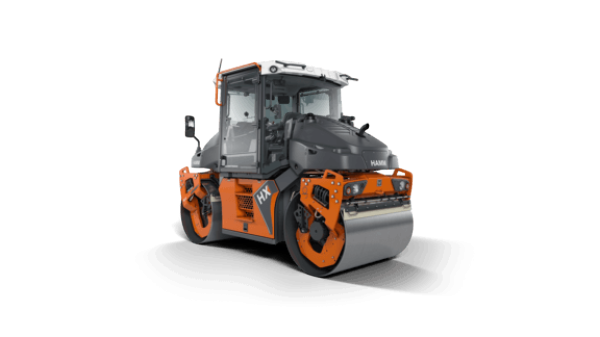

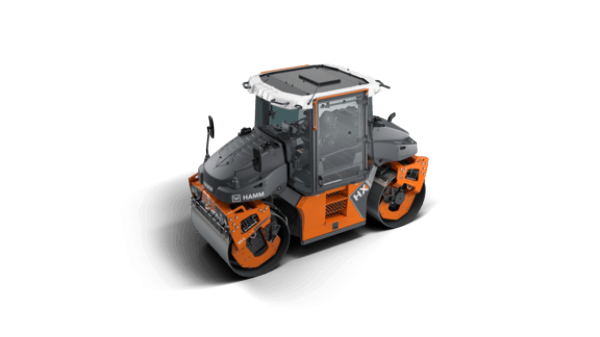

Hamm HX 90i VT-S
| Make | Hamm |
| Model | HX 90i VT-S |
| Type | Series HX |
How can we help?
Description
-
High compaction performance due to optimal setting of the compaction parameters
-
Digital ready
-
Innovative cabin concept for optimal visibility and high comfort
-
Operating concept Easy Drive
-
Intelligent water sprinkler system
Models
Easy Drive
Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardized operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tire rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.
Smart Compaction
In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation. The focus here is on digital interfaces between the driver and the machine as well as various assistants. The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.
Split drum
When negotiating corners and roundabouts and when performing tight steering maneuvers, attempting to perform compaction without twin drums can lead to material being displaced and cracks forming on the surface. A split drum prevents this from occurring as the two halves rotate at different speeds. This minimizes shear stress on the asphalt and avoids surface cracks and material being displaced. With the split oscillation drum, HAMM also offers a technology that combines the advantages of a split drum with those of oscillation. The result: Maximum compaction quality.
HAMMTRONIC
HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.
Specifications
- BASIC DATA - Description: Tandem roller with vibrating roller drum and set of wheels
- BASIC DATA - Exhaust emissions category: EU Stage V / EPA Tier 4
- BASIC DATA - Name: HX 90i VT-S
- BASIC DATA - Series: HX
- DIESEL ENGINE - Cylinders, quantity: 4
- DIESEL ENGINE - Exhaust emission standard: EU Stage V / EPA Tier 4
- DIESEL ENGINE - Exhaust gas after-treatment: DOC-DPF-SCR
- DIESEL ENGINE - Manufacturer: DEUTZ
- DIESEL ENGINE - Model: TCD 3.6 L4
- DIESEL ENGINE - Power ISO 14396, HP: 101.2 HP
- DIESEL ENGINE - Power ISO 14396, kW: 74.4 kW
- DIESEL ENGINE - Power ISO 14396, rpm: 2,200 rpm
- DIESEL ENGINE - Power SAE J1349, HP: 99.7 hp
- DIESEL ENGINE - Power SAE J1349, kW: 74.4 kW
- DIESEL ENGINE - Power SAE J1349, rpm: 2,200 rpm
- DRUM DIMENSIONS - Drum diameter, front: 47.2 in
- DRUM DIMENSIONS - Drum thickness, front: 0.7 in
- DRUM DIMENSIONS - Drum type, front: Smooth/split
- DRUM DIMENSIONS - Drum width, front: 66.1 in
- DRUM DIMENSIONS - Track offset, left: 53.9 in
- MACHINE DIMENSIONS - Center distance: 128 in
- MACHINE DIMENSIONS - Ground clearance, center: 11.8 in
- MACHINE DIMENSIONS - Maximum working width: 120.1 in
- MACHINE DIMENSIONS - Total height with cab: 116.7 in
- MACHINE DIMENSIONS - Total length: 175.1 in
- MACHINE DIMENSIONS - Total width with cab: 73.2 in
- MACHINE DIMENSIONS - Turning radius, inside: 118.1 in
- SOUND LEVEL - Sound power level L(WA), guaranteed: 106
- STEERING - Steering, type: All-wheel, analogue
- TANK CAPACITY/FILLING CAPACITY - Additive tank, capacity: 7.9 gal
- TANK CAPACITY/FILLING CAPACITY - Fuel tank, capacity: 42.3 gal
- TANK CAPACITY/FILLING CAPACITY - Water tank, capacity: 214 gal
- TIRE DIMENSIONS - Number of tires, rear: 4
- TIRE DIMENSIONS - Tire size, rear: 11.00-20
- TIRE DIMENSIONS - Width over tires, rear: 66.1 in
- TRAVEL DRIVE - Climbing ability, without vibration: 46 %
- TRAVEL DRIVE - Regulation, infinitely variable: HAMMTRONIC
- TRAVEL DRIVE - Speed, infinitely variable: 0,0 - 6,1
- VIBRATION - Amplitude, front, I: 0.025 in
- VIBRATION - Amplitude, front, II: 0.017 in
- VIBRATION - Centrifugal force, front, I: 18,929 lbs
- VIBRATION - Centrifugal force, front, II: 17,498 lbs
- VIBRATION - Vibration frequency, front, I: 2,520 VPM
- VIBRATION - Vibration frequency, front, II: 3,000 VPM
- WATER-SPRINKLING SYSTEM - Water sprinkling, type: Pressure
- WEIGHTS - Axle load, front: 10,727 lbs
- WEIGHTS - Axle load, rear: 9,581 lbs
- WEIGHTS - Empty weight without cab, without ROPS: 17,860 lbs
- WEIGHTS - Operating weight with cab: 20,308 lbs
- WEIGHTS - Static linear load, front: 162.1 lbs/in
