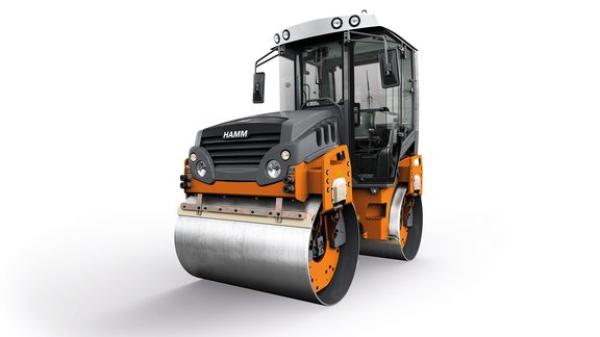

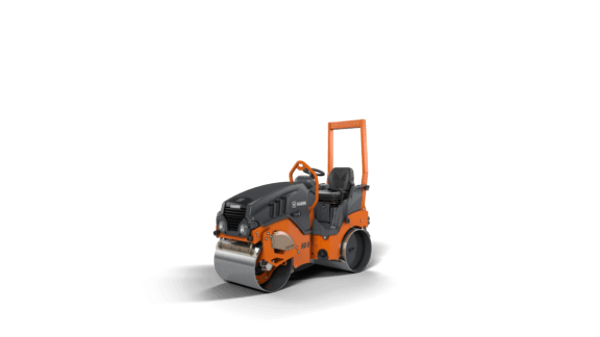

Hamm HD 9 VV
| Make | Hamm |
| Model | HD 9 VV |
| Type | Series HD CompactLine |
How can we help?
Description
-

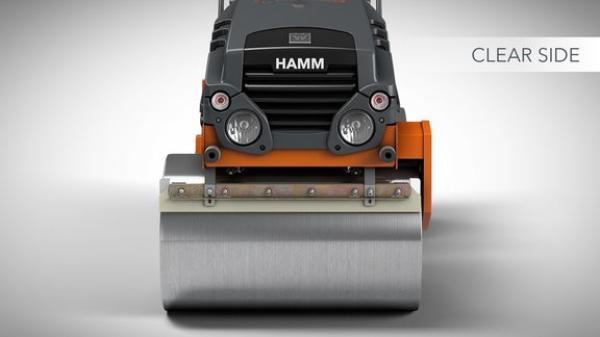

Clear Side — one-sided drum mounting
-
Compact dimensions
-
Simple, intuitive and language-neutral control
-
Simple transport, simple loading
-
Excellent view of drum edge, machine and construction site environment
Specifications
- BASIC DATA - Description: Tandem roller with two vibrating roller drums
- BASIC DATA - Exhaust emissions category: EU Stage V / EPA Tier 4
- BASIC DATA - Name: HD 9 VV
- BASIC DATA - Series: H263
- DIESEL ENGINE - Cylinders, quantity: 3
- DIESEL ENGINE - Exhaust emission standard: MEE III
- DIESEL ENGINE - Exhaust gas after-treatment: -
- DIESEL ENGINE - Manufacturer: KUBOTA
- DIESEL ENGINE - Model: D1105
- DIESEL ENGINE - Power ISO 14396, HP: 21.9 HP
- DIESEL ENGINE - Power ISO 14396, kW: 16.1 kW
- DIESEL ENGINE - Power ISO 14396, rpm: 2,600 rpm
- DIESEL ENGINE - Power SAE J1349, HP: 21.6 hp
- DIESEL ENGINE - Power SAE J1349, kW: 16.1 kW
- DIESEL ENGINE - Power SAE J1349, rpm: 2,600 rpm
- DRUM DIMENSIONS - Drum diameter, front: 24.4 in
- DRUM DIMENSIONS - Drum diameter, rear: 24.4 in
- DRUM DIMENSIONS - Drum thickness, front: 0.5 in
- DRUM DIMENSIONS - Drum thickness, rear: 0.5 in
- DRUM DIMENSIONS - Drum type, front: Smooth/non-split
- DRUM DIMENSIONS - Drum type, rear: Smooth/non-split
- DRUM DIMENSIONS - Drum width, front: 35.4 in
- DRUM DIMENSIONS - Drum width, rear: 35.4 in
- MACHINE DIMENSIONS - Center distance: 61.4 in
- MACHINE DIMENSIONS - Ground clearance, center: 9.1 in
- MACHINE DIMENSIONS - Maximum working width: 39.4 in
- MACHINE DIMENSIONS - Total height with ROPS: 87 in
- MACHINE DIMENSIONS - Total length: 90.4 in
- MACHINE DIMENSIONS - Total width: 40.9 in
- MACHINE DIMENSIONS - Turning radius, inside: 83.9 in
- SOUND LEVEL - Acoustic power LW(A), measured: 101 db(A)
- SOUND LEVEL - Sound power level L(WA), guaranteed: 105
- STEERING - Oscillation angle +/-: 8 °
- STEERING - Steering, type: Articulated steering
- TANK CAPACITY/FILLING CAPACITY - Fuel tank, capacity: 8.7 gal
- TANK CAPACITY/FILLING CAPACITY - Water tank, capacity: 18.5 gal
- TRAVEL DRIVE - Climbing ability, with vibration: 30
- TRAVEL DRIVE - Climbing ability, without vibration: 40 %
- TRAVEL DRIVE - Speed, infinitely variable: 0,0 - 6,8
- VIBRATION - Amplitude, front, I: 0.015 in
- VIBRATION - Amplitude, front, II: 0.015 in
- VIBRATION - Amplitude, rear, I: 0.015 in
- VIBRATION - Amplitude, rear, II: 0.015 in
- VIBRATION - Centrifugal force, front, I: 3,825 lbs
- VIBRATION - Centrifugal force, front, II: 2,475 lbs
- VIBRATION - Centrifugal force, rear, I: 3,825 lbs
- VIBRATION - Centrifugal force, rear, II: 2,475 lbs
- VIBRATION - Vibration frequency, front, I: 3,660 VPM
- VIBRATION - Vibration frequency, front, II: 2,880 VPM
- VIBRATION - Vibration frequency, rear, I: 3,660 VPM
- VIBRATION - Vibration frequency, rear, II: 2,880 VPM
- WATER-SPRINKLING SYSTEM - Water sprinkling, type: Pressure
- WEIGHTS - Axle load, front: 1,753 lbs
- WEIGHTS - Axle load, rear: 1,929 lbs
- WEIGHTS - Empty weight without cab, without ROPS: 3,307 lbs
- WEIGHTS - Operating weight with ROPS: 3,682 lbs
- WEIGHTS - Static linear load, front: 44.8 lbs/in
- WEIGHTS - Static linear load, rear: 49.3
