BASIC DATA - Description:
|

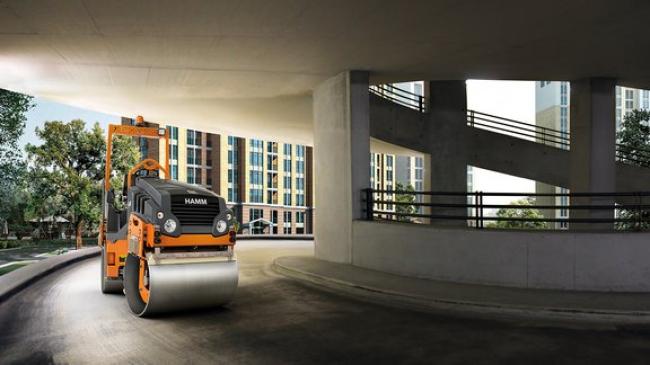

Tandem roller with two vibrating roller drums |
BASIC DATA - Exhaust emissions category:
|
EU Stage V / EPA Tier 4 |
BASIC DATA - Name:
|
HD 14i VV |
BASIC DATA - Series:
|
H285 |
DIESEL ENGINE - Cylinders, quantity:
|
4 |
DIESEL ENGINE - Exhaust emission standard:
|
EU Stage V / EPA Tier 4 |
DIESEL ENGINE - Exhaust gas after-treatment:
|
DOC-DPF |
DIESEL ENGINE - Manufacturer:
|
KUBOTA |
DIESEL ENGINE - Model:
|
V2403-CR-E5B |
DIESEL ENGINE - Power ISO 14396, HP:
|
50 HP |
DIESEL ENGINE - Power ISO 14396, kW:
|
36.8 kW |
DIESEL ENGINE - Power ISO 14396, rpm:
|
2,700 rpm |
DIESEL ENGINE - Power SAE J1995, HP:
|
50.1 hp |
DIESEL ENGINE - Power SAE J1995, kW:
|
37.4 kW |
DIESEL ENGINE - Power SAE J1995, rpm:
|
2,700 rpm |
DRUM DIMENSIONS - Drum diameter, front:
|
35.4 in |
DRUM DIMENSIONS - Drum diameter, rear:
|
35.4 in |
DRUM DIMENSIONS - Drum thickness, front:
|
0.6 in |
DRUM DIMENSIONS - Drum thickness, rear:
|
0.6 in |
DRUM DIMENSIONS - Drum type, front:
|
Smooth/non-split |
DRUM DIMENSIONS - Drum type, rear:
|
Smooth/non-split |
DRUM DIMENSIONS - Drum width, front:
|
54.3 in |
DRUM DIMENSIONS - Drum width, rear:
|
54.3 in |
DRUM DIMENSIONS - Track offset, left:
|
0 in |
DRUM DIMENSIONS - Track offset, right:
|
2 in |
MACHINE DIMENSIONS - Center distance:
|
76.8 in |
MACHINE DIMENSIONS - Ground clearance, center:
|
12 in |
MACHINE DIMENSIONS - Maximum working width:
|
56.3 in |
MACHINE DIMENSIONS - Total height with cab:
|
107.1 in |
MACHINE DIMENSIONS - Total height with ROPS:
|
102 in |
MACHINE DIMENSIONS - Total length:
|
116.7 in |
MACHINE DIMENSIONS - Total width:
|
59.3 in |
MACHINE DIMENSIONS - Turning radius, inside:
|
104.3 in |
SOUND LEVEL - Acoustic power LW(A), measured:
|
102 db(A) |
SOUND LEVEL - Sound power level L(WA), guaranteed:
|
106 |
STEERING - Oscillation angle +/-:
|
8 ° |
STEERING - Steering, type:
|
Articulated steering |
TANK CAPACITY/FILLING CAPACITY - Fuel tank, capacity:
|
19.3 gal |
TANK CAPACITY/FILLING CAPACITY - Water tank, capacity:
|
75.3 gal |
TRAVEL DRIVE - Climbing ability, with vibration:
|
30 |
TRAVEL DRIVE - Climbing ability, without vibration:
|
40 % |
TRAVEL DRIVE - Speed, infinitely variable:
|
0,0 - 6,8 |
VIBRATION - Amplitude, front, I:
|
0.02 in |
VIBRATION - Amplitude, front, II:
|
0.012 in |
VIBRATION - Amplitude, rear, I:
|
0.02 in |
VIBRATION - Amplitude, rear, II:
|
0.012 in |
VIBRATION - Centrifugal force, front, I:
|
14,400 lbs |
VIBRATION - Centrifugal force, front, II:
|
8,775 lbs |
VIBRATION - Centrifugal force, rear, I:
|
14,400 lbs |
VIBRATION - Centrifugal force, rear, II:
|
8,775 lbs |
VIBRATION - Vibration frequency, front, I:
|
3,600 VPM |
VIBRATION - Vibration frequency, front, II:
|
3,060 VPM |
VIBRATION - Vibration frequency, rear, I:
|
3,600 VPM |
VIBRATION - Vibration frequency, rear, II:
|
3,060 VPM |
WATER-SPRINKLING SYSTEM - Water sprinkling, type:
|
Pressure |
WEIGHTS - Axle load, front:
|
4,972 lbs |
WEIGHTS - Axle load, rear:
|
4,807 lbs |
WEIGHTS - Empty weight without cab, without ROPS:
|
9,074 lbs |
WEIGHTS - Operating weight with cab:
|
10,330 lbs |
WEIGHTS - Operating weight with ROPS:
|
9,779 lbs |
WEIGHTS - Static linear load, front:
|
91.3 lbs/in |
WEIGHTS - Static linear load, rear:
|
88.5 |
