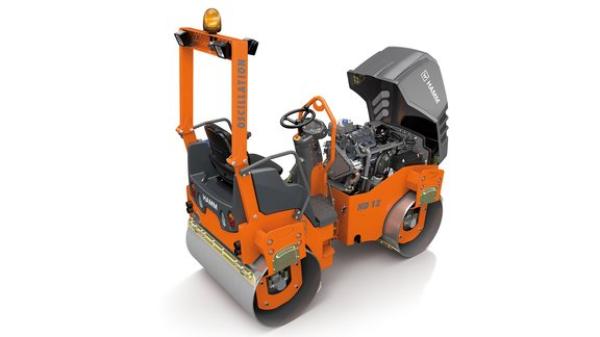

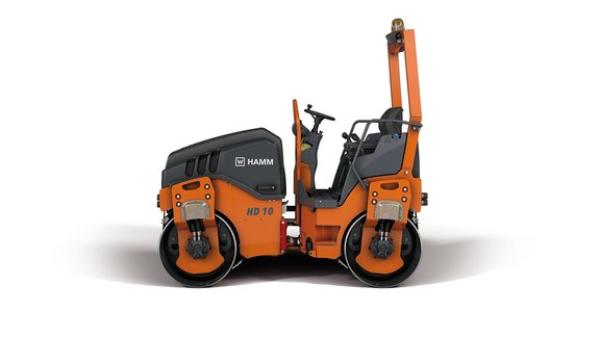

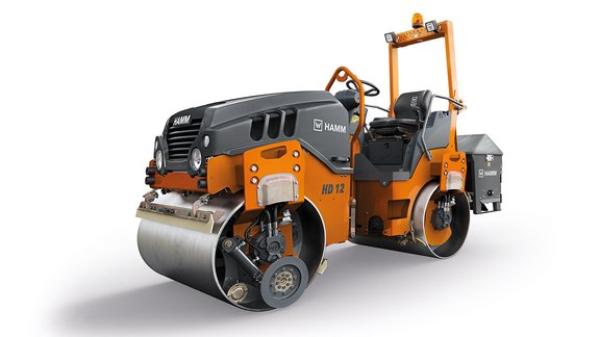

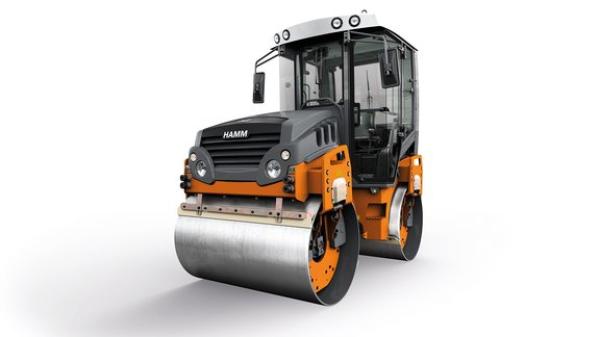

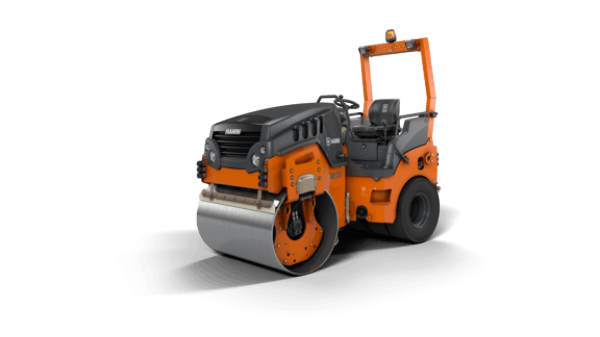

Hamm HD 13i VV
| Make | Hamm |
| Model | HD 13i VV |
| Type | Series HD CompactLine |
How can we help?
Description
-
Simple transport, simple loading
-
Compact dimensions
-
Excellent view of drum edge, machine and construction site environment
-
Ergonomic driver platform
-
Simple, intuitive and language-neutral control
Specifications
- BASIC DATA - Description: Tandem roller with two vibrating roller drums
- BASIC DATA - Exhaust emissions category: EU Stage V / EPA Tier 4
- BASIC DATA - Name: HD 13i VV
- BASIC DATA - Series: HD CompactLine
- DIESEL ENGINE - Cylinders, quantity: 4
- DIESEL ENGINE - Exhaust emission standard: EU Stage V / EPA Tier 4
- DIESEL ENGINE - Exhaust gas after-treatment: DOC-DPF
- DIESEL ENGINE - Manufacturer: KUBOTA
- DIESEL ENGINE - Model: V2403-CR-E5B
- DIESEL ENGINE - Power ISO 14396, HP: 50 HP
- DIESEL ENGINE - Power ISO 14396, kW: 36.8 kW
- DIESEL ENGINE - Power ISO 14396, rpm: 2,700 rpm
- DIESEL ENGINE - Power SAE J1995, HP: 50.1 hp
- DIESEL ENGINE - Power SAE J1995, kW: 37.4 kW
- DIESEL ENGINE - Power SAE J1995, rpm: 2,700 rpm
- DRUM DIMENSIONS - Drum diameter, front: 35.4 in
- DRUM DIMENSIONS - Drum diameter, rear: 35.4 in
- DRUM DIMENSIONS - Drum thickness, front: 0.7 in
- DRUM DIMENSIONS - Drum thickness, rear: 0.7 in
- DRUM DIMENSIONS - Drum type, front: Smooth/non-split
- DRUM DIMENSIONS - Drum type, rear: Smooth/non-split
- DRUM DIMENSIONS - Drum width, front: 51.2 in
- DRUM DIMENSIONS - Drum width, rear: 51.2 in
- DRUM DIMENSIONS - Track offset, left: 0 in
- DRUM DIMENSIONS - Track offset, right: 2 in
- MACHINE DIMENSIONS - Center distance: 76.8 in
- MACHINE DIMENSIONS - Ground clearance, center: 12 in
- MACHINE DIMENSIONS - Maximum working width: 53.1 in
- MACHINE DIMENSIONS - Total height with cab: 107.1 in
- MACHINE DIMENSIONS - Total height with ROPS: 102 in
- MACHINE DIMENSIONS - Total length: 116.7 in
- MACHINE DIMENSIONS - Total width: 56.1 in
- MACHINE DIMENSIONS - Turning radius, inside: 105.9 in
- SOUND LEVEL - Acoustic power LW(A), measured: 102 db(A)
- SOUND LEVEL - Sound power level L(WA), guaranteed: 106
- STEERING - Oscillation angle +/-: 8 °
- STEERING - Steering, type: Articulated steering
- TANK CAPACITY/FILLING CAPACITY - Fuel tank, capacity: 19.3 gal
- TANK CAPACITY/FILLING CAPACITY - Water tank, capacity: 75.3 gal
- TRAVEL DRIVE - Climbing ability, with vibration: 30
- TRAVEL DRIVE - Climbing ability, without vibration: 40 %
- TRAVEL DRIVE - Speed, infinitely variable: 0,0 - 6,8
- VIBRATION - Amplitude, front, I: 0.02 in
- VIBRATION - Amplitude, front, II: 0.012 in
- VIBRATION - Amplitude, rear, I: 0.02 in
- VIBRATION - Amplitude, rear, II: 0.012 in
- VIBRATION - Centrifugal force, front, I: 14,400 lbs
- VIBRATION - Centrifugal force, front, II: 8,775 lbs
- VIBRATION - Centrifugal force, rear, I: 14,400 lbs
- VIBRATION - Centrifugal force, rear, II: 8,775 lbs
- VIBRATION - Vibration frequency, front, I: 3,600 VPM
- VIBRATION - Vibration frequency, front, II: 3,060 VPM
- VIBRATION - Vibration frequency, rear, I: 3,600 VPM
- VIBRATION - Vibration frequency, rear, II: 3,060 VPM
- WATER-SPRINKLING SYSTEM - Water sprinkling, type: Pressure
- WEIGHTS - Axle load, front: 4,675 lbs
- WEIGHTS - Axle load, rear: 4,509 lbs
- WEIGHTS - Empty weight without cab, without ROPS: 8,478 lbs
- WEIGHTS - Operating weight with cab: 9,735 lbs
- WEIGHTS - Operating weight with ROPS: 9,184 lbs
- WEIGHTS - Static linear load, front: 91.3 lbs/in
- WEIGHTS - Static linear load, rear: 87.9
