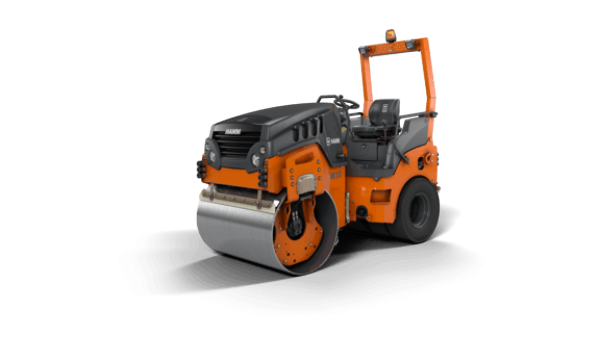

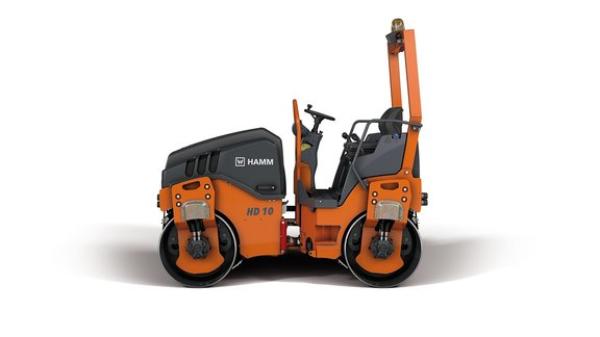

Hamm HD 13i VO
| Make | Hamm |
| Model | HD 13i VO |
| Type | Series HD CompactLine |
How can we help?
Description
-

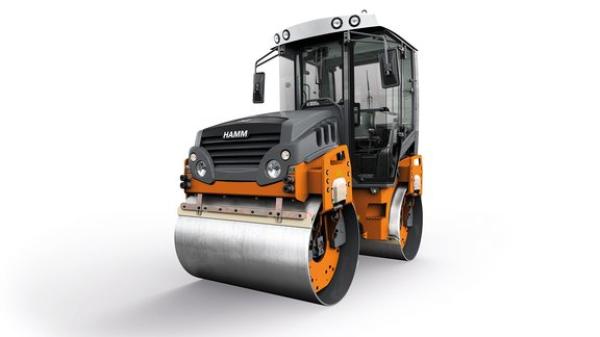

Ergonomic driver platform
-
Compaction with oscillation
-
Simple, intuitive and language-neutral control
-
Compact dimensions
-
Excellent view of drum edge, machine and construction site environment
Models

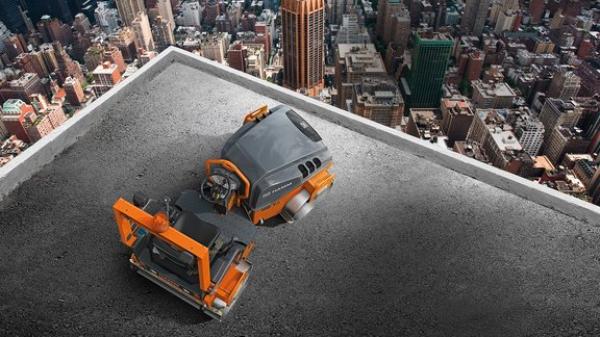

Three-point articulation
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

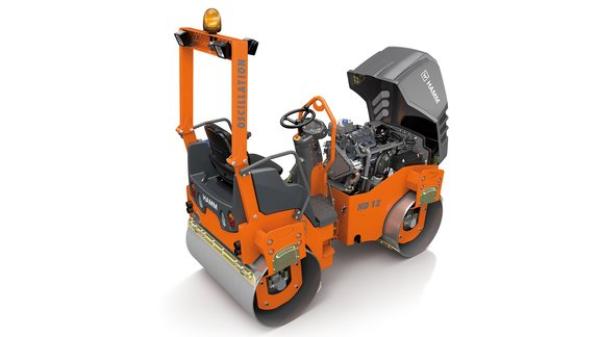

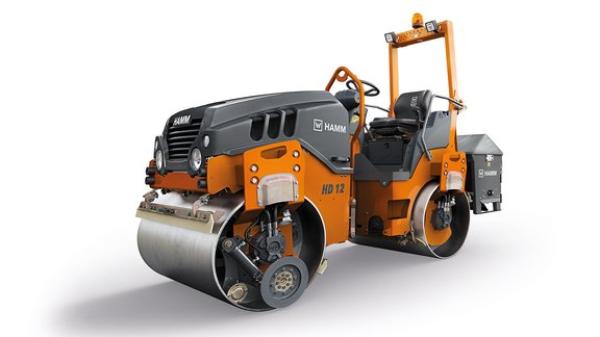

Oscillation
In an oscillation drum, two eccentric shafts are fitted at a 180° angle to each other. Both unbalanced masses rotate synchronously, which causes the drum to perform a rapidly alternating forward-backward rotational movement. This results in the compaction energy being transmitted forward and backward tangentially into the ground below in the form of shear forces. The oscillation system developed by HAMM achieves compaction results that are scientifically proven to be more homogeneous and higher-quality, leading to faster, more significant compaction increases. The scope of application is enormous.
Specifications
- BASIC DATA - Description: Tandem roller with vibration and oscillation drum
- BASIC DATA - Exhaust emissions category: EU Stage V / EPA Tier 4
- BASIC DATA - Name: HD 13i VO
- BASIC DATA - Series: HD CompactLine
- DIESEL ENGINE - Cylinders, quantity: 4
- DIESEL ENGINE - Exhaust emission standard: EU Stage V / EPA Tier 4
- DIESEL ENGINE - Exhaust gas after-treatment: DOC-DPF
- DIESEL ENGINE - Manufacturer: KUBOTA
- DIESEL ENGINE - Model: V2403-CR-E5B
- DIESEL ENGINE - Power ISO 14396, HP: 50 HP
- DIESEL ENGINE - Power ISO 14396, kW: 36.8 kW
- DIESEL ENGINE - Power ISO 14396, rpm: 2,700 rpm
- DIESEL ENGINE - Power SAE J1995, HP: 50.1 hp
- DIESEL ENGINE - Power SAE J1995, kW: 37.4 kW
- DIESEL ENGINE - Power SAE J1995, rpm: 2,700 rpm
- DRUM DIMENSIONS - Drum diameter, front: 35.4 in
- DRUM DIMENSIONS - Drum diameter, rear: 35.4 in
- DRUM DIMENSIONS - Drum thickness, front: 0.7 in
- DRUM DIMENSIONS - Drum thickness, rear: 0.7 in
- DRUM DIMENSIONS - Drum type, front: Smooth/non-split
- DRUM DIMENSIONS - Drum type, rear: Smooth/non-split
- DRUM DIMENSIONS - Drum width, front: 51.2 in
- DRUM DIMENSIONS - Drum width, rear: 51.2 in
- DRUM DIMENSIONS - Track offset, left: 0 in
- DRUM DIMENSIONS - Track offset, right: 2 in
- MACHINE DIMENSIONS - Center distance: 76.8 in
- MACHINE DIMENSIONS - Ground clearance, center: 12 in
- MACHINE DIMENSIONS - Maximum working width: 53.1 in
- MACHINE DIMENSIONS - Total height with cab: 107.1 in
- MACHINE DIMENSIONS - Total height with ROPS: 102 in
- MACHINE DIMENSIONS - Total length: 116.7 in
- MACHINE DIMENSIONS - Total width: 56.1 in
- MACHINE DIMENSIONS - Turning radius, inside: 105.9 in
- OSCILLATION - Oscillation force, rear, I: 16,200 lbs
- OSCILLATION - Oscillation force, rear, II: 9,675 lbs
- OSCILLATION - Oscillation frequency, rear, I: 2,340 VPM
- OSCILLATION - Oscillation frequency, rear, II: 1,800 VPM
- OSCILLATION - Tangential amplitude, rear, I: 0.057 in
- OSCILLATION - Tangential amplitude, rear, II: 0.057 in
- SOUND LEVEL - Acoustic power LW(A), measured: 102 db(A)
- SOUND LEVEL - Sound power level L(WA), guaranteed: 106
- STEERING - Oscillation angle +/-: 8 °
- STEERING - Steering, type: Articulated steering
- TANK CAPACITY/FILLING CAPACITY - Fuel tank, capacity: 19.3 gal
- TANK CAPACITY/FILLING CAPACITY - Water tank, capacity: 75.3 gal
- TRAVEL DRIVE - Climbing ability, with vibration: 30
- TRAVEL DRIVE - Climbing ability, without vibration: 40 %
- TRAVEL DRIVE - Speed, infinitely variable: 0,0 - 6,8
- VIBRATION - Amplitude, front, I: 0.02 in
- VIBRATION - Amplitude, front, II: 0.012 in
- VIBRATION - Centrifugal force, front, I: 14,400 lbs
- VIBRATION - Centrifugal force, front, II: 8,775 lbs
- VIBRATION - Vibration frequency, front, I: 3,600 VPM
- VIBRATION - Vibration frequency, front, II: 3,060 VPM
- WATER-SPRINKLING SYSTEM - Water sprinkling, type: Pressure
- WEIGHTS - Axle load, front: 4,675 lbs
- WEIGHTS - Axle load, rear: 4,664 lbs
- WEIGHTS - Empty weight without cab, without ROPS: 8,633 lbs
- WEIGHTS - Operating weight with cab: 9,889 lbs
- WEIGHTS - Operating weight with ROPS: 9,338 lbs
- WEIGHTS - Static linear load, front: 91.3 lbs/in
- WEIGHTS - Static linear load, rear: 91.3
