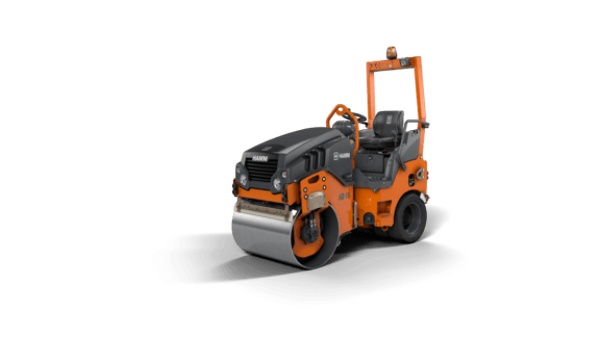

Hamm HD 12 VV
| Make | Hamm |
| Model | HD 12 VV |
| Type | Series HD CompactLine |
How can we help?
Description
Highlights
-
Simple transport, simple loading
-
Simple, intuitive and language-neutral control
-
Ergonomic driver platform
-
Excellent view of drum edge, machine and construction site environment
-
Compact dimensions
Specifications
- BASIC DATA - Description: Tandem roller with two vibrating roller drums
- BASIC DATA - Exhaust emissions category: EU Stage V / EPA Tier 4
- BASIC DATA - Name: HD 12 VV
- BASIC DATA - Series: H230
- DIESEL ENGINE - Cylinders, quantity: 3
- DIESEL ENGINE - Exhaust emission standard: EU Stage V / EPA Tier 4
- DIESEL ENGINE - Exhaust gas after-treatment: -
- DIESEL ENGINE - Manufacturer: KUBOTA
- DIESEL ENGINE - Model: D1703-M-DI-E4B
- DIESEL ENGINE - Power ISO 14396, HP: 24.8 HP
- DIESEL ENGINE - Power ISO 14396, kW: 18.2 kW
- DIESEL ENGINE - Power ISO 14396, rpm: 2,200 rpm
- DRUM DIMENSIONS - Drum diameter, front: 28.3 in
- DRUM DIMENSIONS - Drum diameter, rear: 28.3 in
- DRUM DIMENSIONS - Drum thickness, front: 0.6 in
- DRUM DIMENSIONS - Drum thickness, rear: 0.6 in
- DRUM DIMENSIONS - Drum type, front: Smooth/non-split
- DRUM DIMENSIONS - Drum type, rear: Smooth/non-split
- DRUM DIMENSIONS - Drum width, front: 47.2 in
- DRUM DIMENSIONS - Drum width, rear: 47.2 in
- DRUM DIMENSIONS - Track offset, left: 0 in
- DRUM DIMENSIONS - Track offset, right: 2 in
- MACHINE DIMENSIONS - Center distance: 66.9 in
- MACHINE DIMENSIONS - Curb clearance, left: 22.4 in
- MACHINE DIMENSIONS - Curb clearance, rear: 22.4 in
- MACHINE DIMENSIONS - Ground clearance, center: 11 in
- MACHINE DIMENSIONS - Maximum working width: 49.2 in
- MACHINE DIMENSIONS - Total height with ROPS: 97.4 in
- MACHINE DIMENSIONS - Total length: 99.6 in
- MACHINE DIMENSIONS - Total width: 51.6 in
- MACHINE DIMENSIONS - Turning radius, inside: 93.3 in
- SOUND LEVEL - Acoustic power LW(A), measured: 104 db(A)
- SOUND LEVEL - Sound power level L(WA), guaranteed: 106
- STEERING - Oscillation angle +/-: 8 °
- STEERING - Steering, type: Articulated steering
- TANK CAPACITY/FILLING CAPACITY - Fuel tank, capacity: 11.1 gal
- TANK CAPACITY/FILLING CAPACITY - Water tank, capacity: 47.6 gal
- TRAVEL DRIVE - Climbing ability, with vibration: 30
- TRAVEL DRIVE - Climbing ability, without vibration: 40 %
- TRAVEL DRIVE - Speed, infinitely variable: 6.3
- VIBRATION - Amplitude, front, I: 0.018 in
- VIBRATION - Amplitude, front, II: 0.018 in
- VIBRATION - Amplitude, rear, I: 0.018 in
- VIBRATION - Amplitude, rear, II: 0.018 in
- VIBRATION - Centrifugal force, front, I: 8,550 lbs
- VIBRATION - Centrifugal force, front, II: 5,175 lbs
- VIBRATION - Centrifugal force, rear, I: 8,550 lbs
- VIBRATION - Centrifugal force, rear, II: 5,175 lbs
- VIBRATION - Vibration frequency, front, I: 3,900 VPM
- VIBRATION - Vibration frequency, front, II: 3,060 VPM
- VIBRATION - Vibration frequency, rear, I: 3,900 VPM
- VIBRATION - Vibration frequency, rear, II: 3,060 VPM
- WATER-SPRINKLING SYSTEM - Water sprinkling, type: Pressure
- WEIGHTS - Operating weight with ROPS: 5,942 lbs
- WEIGHTS - Static linear load, front: 62.2 lbs/in
- WEIGHTS - Static linear load, rear: 63.3
