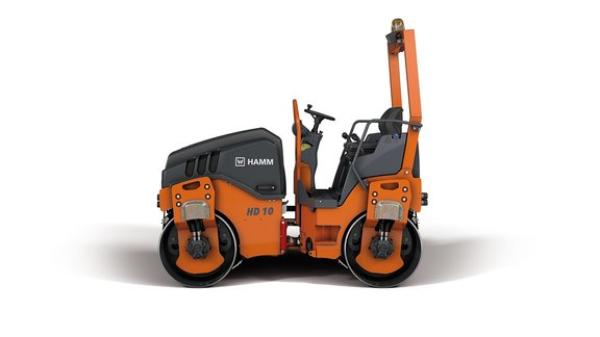

Hamm HD 10 VT
| Make | Hamm |
| Model | HD 10 VT |
| Type | Series HD CompactLine |
How can we help?
Description
Highlights
-
Compact dimensions
-
Simple transport, simple loading
-
Simple, intuitive and language-neutral control
-
Excellent view of drum edge, machine and construction site environment
-
Ergonomic driver platform
Specifications
- BASIC DATA - Description: Tandem roller with vibrating roller drum and set of wheels
- BASIC DATA - Exhaust emissions category: EU Stage V / EPA Tier 4
- BASIC DATA - Name: HD 10 VT
- BASIC DATA - Series: HD CompactLine
- DIESEL ENGINE - Cylinders, quantity: 3
- DIESEL ENGINE - Exhaust emission standard: EU Stage V / EPA Tier 4
- DIESEL ENGINE - Exhaust gas after-treatment: -
- DIESEL ENGINE - Manufacturer: KUBOTA
- DIESEL ENGINE - Model: D1703-M-DI-E4B
- DIESEL ENGINE - Power ISO 14396, HP: 24.8 HP
- DIESEL ENGINE - Power ISO 14396, kW: 18.2 kW
- DIESEL ENGINE - Power ISO 14396, rpm: 2,200 rpm
- DRUM DIMENSIONS - Drum diameter, front: 28.3 in
- DRUM DIMENSIONS - Drum thickness, front: 0.6 in
- DRUM DIMENSIONS - Drum type, front: Smooth/non-split
- DRUM DIMENSIONS - Drum width, front: 39.4 in
- DRUM DIMENSIONS - Track offset, left: 0 in
- DRUM DIMENSIONS - Track offset, right: 2 in
- MACHINE DIMENSIONS - Center distance: 66.9 in
- MACHINE DIMENSIONS - Curb clearance, left: 22.4 in
- MACHINE DIMENSIONS - Curb clearance, rear: 22.4 in
- MACHINE DIMENSIONS - Ground clearance, center: 11 in
- MACHINE DIMENSIONS - Maximum working width: 41.3 in
- MACHINE DIMENSIONS - Total height with ROPS: 97.4 in
- MACHINE DIMENSIONS - Total length: 99.6 in
- MACHINE DIMENSIONS - Total width: 43.7 in
- MACHINE DIMENSIONS - Turning radius, inside: 97.2 in
- SOUND LEVEL - Acoustic power LW(A), measured: 104 db(A)
- SOUND LEVEL - Sound power level L(WA), guaranteed: 106
- STEERING - Oscillation angle +/-: 8 °
- STEERING - Steering, type: Articulated steering
- TANK CAPACITY/FILLING CAPACITY - Additive tank, capacity: 4.8 gal
- TANK CAPACITY/FILLING CAPACITY - Fuel tank, capacity: 11.1 gal
- TANK CAPACITY/FILLING CAPACITY - Water tank, capacity: 47.6 gal
- TIRE DIMENSIONS - Number of tires, rear: 4
- TIRE DIMENSIONS - Tire size, rear: 205/60-R15
- TIRE DIMENSIONS - Width over tires, rear: 39.4 in
- TRAVEL DRIVE - Climbing ability, with vibration: 30
- TRAVEL DRIVE - Climbing ability, without vibration: 40 %
- TRAVEL DRIVE - Speed, infinitely variable: 6.0
- VIBRATION - Amplitude, front, I: 0.018 in
- VIBRATION - Amplitude, front, II: 0.018 in
- VIBRATION - Centrifugal force, front, I: 7,425 lbs
- VIBRATION - Centrifugal force, front, II: 4,500 lbs
- VIBRATION - Vibration frequency, front, I: 3,900 VPM
- VIBRATION - Vibration frequency, front, II: 3,060 VPM
- WATER-SPRINKLING SYSTEM - Water sprinkling, type: Pressure
- WEIGHTS - Operating weight with ROPS: 5,259 lbs
- WEIGHTS - Static linear load, front: 67.8 lbs/in
