Wirtgen TCM 180i
| Make | Wirtgen |
| Model | TCM 180i |
| Type | Texture Curing Machines |
How can we help?
Description
Optimum texture and protection for concrete surfaces up to 18.0 m wide
-
The modular machine design allows it to be adapted to working widths between 4.0 and 18.0 m.
-

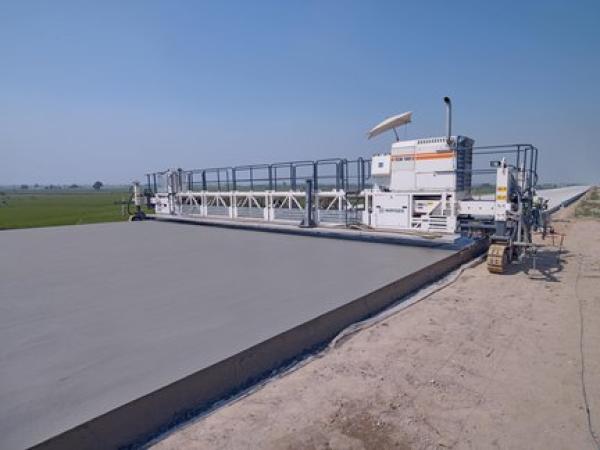

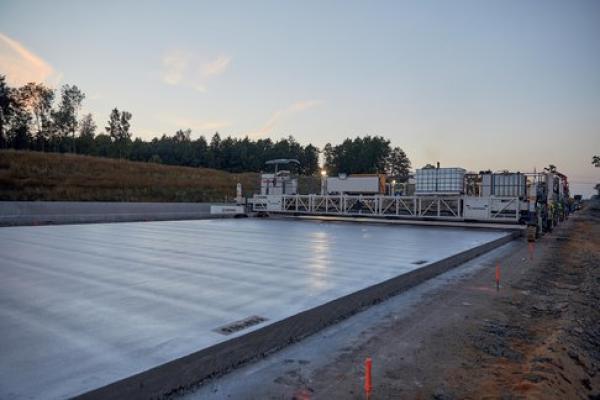

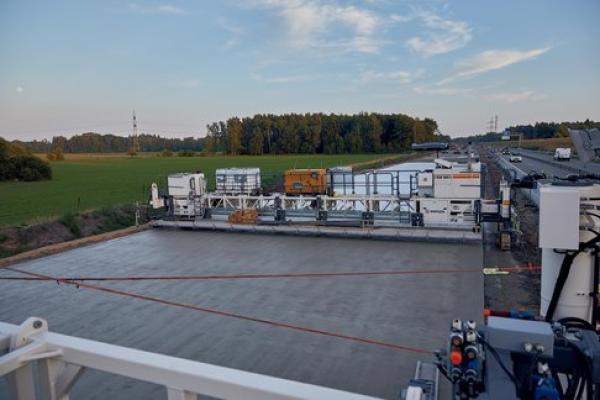

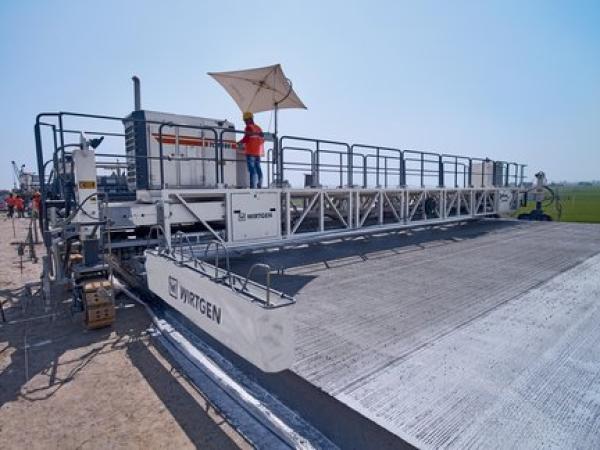

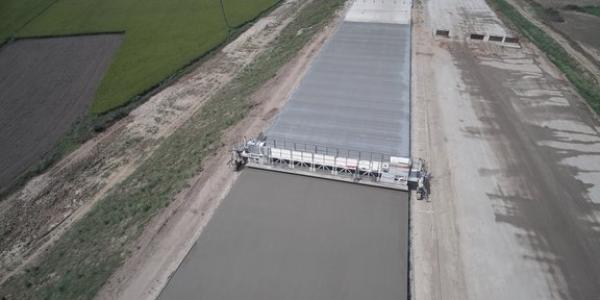

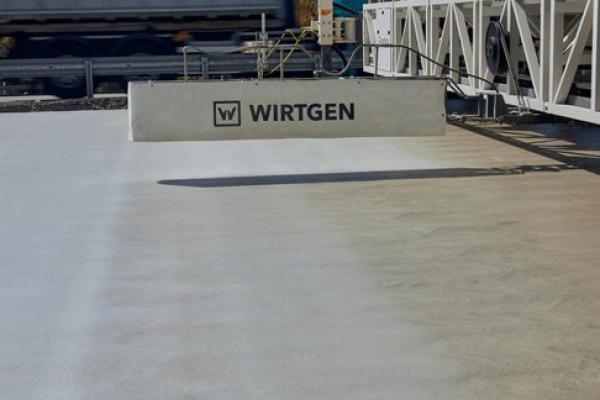

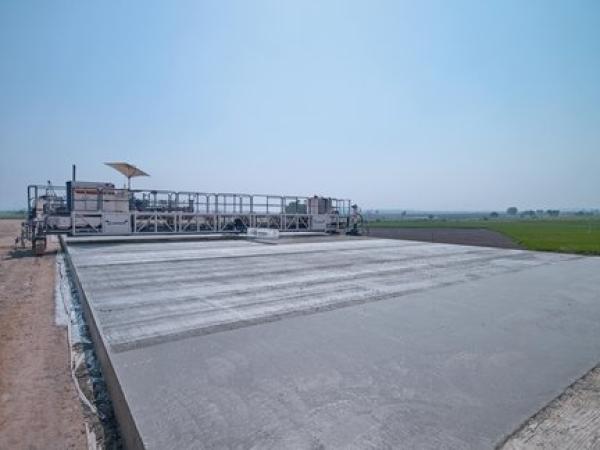

The self-propelled texture curing machine produces the desired surface textures on the freshly paved concrete surface.
-
The automated spraying system with a generously sized storage container effectively distributes the dispersion and protects the concrete surface from premature drying.
-
The various texture and spray modes as well as other texture alternatives offer a wide range of functionality.
-
An extensive array of options that can be combined without additional installation work make a wide variety of applications possible while guaranteeing maximum machine availability.
Specifications
- Displacement: 2,925 cm³
- Exhaust emissions category: EU Stage IV/ US EPA Tier 4f
- Number of track units: 4
- Operating weight, CE: 9100 - 18400 kg
- Rated power: 55.4 kW / 75.3 HP
- Travel speed max.: 33 m/min
- Working height: 500 mm
- Working width: 18000 mm
Features

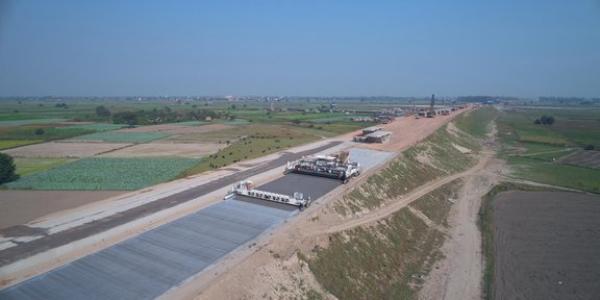

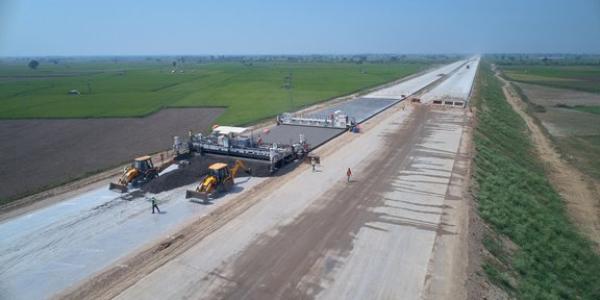

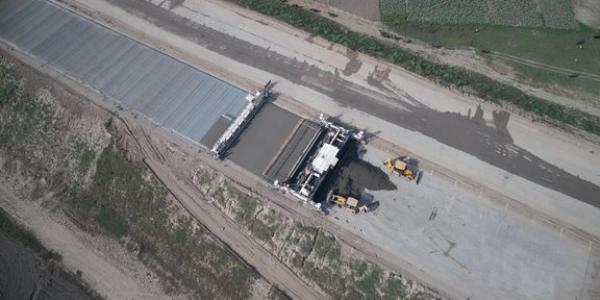

- Slipform paving: We offer mature processes for facilitating the construction of heavy-duty motorways or airport runways an the production of poured-in-place concrete profiles. Make use of our broad offer of machines for high precision in concrete paving. We offer mature processes for facilitating the construction of heavy-duty motorways or airport runways an the production of poured-in-place concrete profiles. Make use of our broad offer of machines for high precision in concrete paving.
- WIRTGEN levelling technology: WIRTGEN levelling technology controls height, depth and slope to achieve results of maximum precision. In the process, the system continuously reconciles the actual values with a preselected target value, correcting any deviations by means of proportional control. State-of-the-art machine engineering ensures levelling results of consistently high quality while at the same time relieving the machine operator of a significant part of his workload. WIRTGEN offers customers reliable hardware and software developed in-house. Different systems are used depending on the construction project to be completed and local conditions on site. WIRTGEN levelling technology controls height, depth and slope to achieve results of maximum precision. In the process, the system continuously reconciles the actual values with a preselected target value, correcting any deviations by means of proportional control. State-of-the-art machine engineering ensures levelling results of consistently high quality while at the same time relieving the machine operator of a significant part of his workload. WIRTGEN offers customers reliable hardware and software developed in-house. Different systems are used depending on the construction project to be completed and local conditions on site.
