Wirtgen WPS62i
| Make | Wirtgen |
| Model | WPS62i |
| Type | Side Feeder |
How can we help?
Description

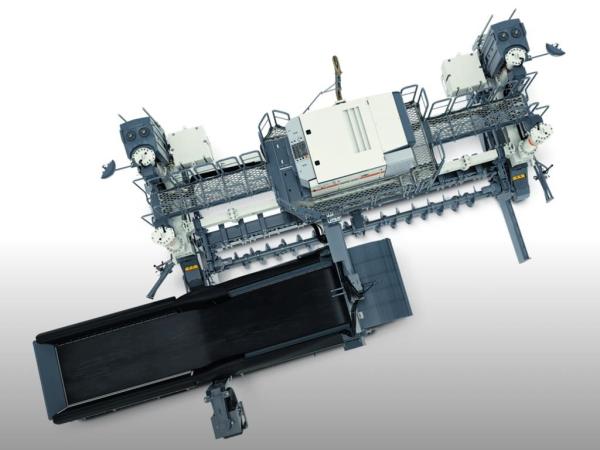

WIRTGEN WPS62I – PLACER/SPREADER
If reinforcement needs to be laid in advance during the construction of concrete roadways, the concrete can be fed in laterally using a placer/spreader. The placer/spreader travels in front of the slipform paver over the pre-placed reinforcement, while a truck mixer feeds the belt conveyor with concrete from the side. The concrete is poured evenly over the pre-placed reinforcement, in front of the slipform paver, and distributed across the entire working width. Once the truck mixer is empty, the belt conveyor can be folded away in a very short time to clear the path for the next mixer.
HIGH-PERFORMANCE SIDE FEEDING AND HOMOGENEOUS SPREADING OF CONCRETE
•The cost-effective two-track placer/spreader is designed for high-performance concrete feeding at widths of 12 ft to 24 ft and thicknesses of 19.7 in (500 mm).
•The machine concept with a hydraulically telescoping machine frame and concrete strikeoff unit makes the machine highly adaptable to any job site situation.
•The powerful, fast folding feeder conveyor features an intelligent control concept and guarantees maximum concrete availability for the slipform paver following behind it.
•The fully modular machine design comes standard-equipped with hydraulic quick-change couplings for easy conversion, rapid transport, and maximum machine availability.
•The machine can be precisely controlled via stringline scanning, via 3D applications without a stringline, or via WIRTGEN Autopilot 2.0.
FEATURES
INTELLIGENT MACHINE CONCEPT
• Homogeneous spreading of large quantities of concrete fed in from the side
• Two-track placer/spreader on the basis of the tried-and-tested SP 62i and SP 102i slipform pavers
• Fully modular machine design for paving widths from 12 ft to 24 ft (WPS 62i) or 12 ft to 40 ft (WPS 102i)
• Hydraulically telescoping machine frame
• Simple, standardized operating concept also found on the latest SP series’ models
• Perfect view of all important work areas, e.g. the strike-off wall and spreading auger
• Latest engine technology with fuel-efficient and noise-reduced engine management
• Cost-effective machine operation
HIGH-PERFORMANCE CONCRETE FEEDING SYSTEM
• 5 ft 3 in (1.6 m) wide conveyor belt
• High drive power for high conveyor speed of 9.8 ft/sec (3 m/sec)
• Feeding unit can be folded extremely fast (approx. 6 seconds)
• Height-adjustable feeding unit
• Height and angle of discharge unit hydraulically adjustable
• Variable baffle plate
• Two add-on conveyor extensions of different lengths are available for optimal concrete feed at all working widths (WPS 102i only)
• Numerous helpful functions for the concrete feeding system in hydraulic design standard
• Effective conveyor belt scraper for reliable cleaning and low wear
HEAVY-DUTY CONCRETE UNIT
• High-performance spreading auger for powerful concrete spreading
• Height of side plates can be adjusted by up to 20 in (500 mm) for reliable operation
• Heavy-duty strike-off wall with self-supporting telescoping system
• Height of strike-off wall easily adjustable independent of the machine height
• Cleaning position for strike-off wall
• Height of the strike-off wall adjustable via additional remote control (option)
• Intelligent cylinder features
• Concrete unit can easily be adapted to central crown paving
SIMPLE CONVERSION AND TRANSPORT
• Simple and fast width changes of the spreading auger, strike-off wall and chassis
• Loading ramps (option) for easy and fast transportation
• No lifting devices required for width changes
• Compact transport dimensions for easy transport with standard flatbed truck
• Quick and easy machine setup for either left- or right-hand operation
• Multi coupling for simple, fast conversion, machine setup and transport of the concrete feeding system
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Specifications
- Area Of Application - Crown: ± 3%
- Area Of Application - Intelligent height adjustment: 8 in (200 mm)
- Area Of Application - NOTE: *1 = Special paving widths, paving heights, and options available on request
- Area Of Application - Road surfacing *1: Paving width: 12 ft to 24 ft | Paving height: up to 20 in (500 mm)
- Area Of Application - Spreading auger: Two-piece, modularly extendable up to 24 ft
- Area Of Application - Strike-off wall: Modularly extendable up to 24 ft
- Concrete Feeding System - Belt conveyor folding process: 6 sec
- Concrete Feeding System - Belt conveyor speed: 0 to 9.8 ft/s (0 to 3 m/s)
- Concrete Feeding System - Conveyor belt width: 5 ft 3 in (1,600 mm)
- Crawler Units - Dimensions (L x W x H): Type B1: 11 ft 1 in x 12 in x 2 ft 2 in (3,390 x 300 x 660 mm)
- Crawler Units - Number: 2
- Driving Performance - Advance speed while paving: 0 to 33 ft/min (0 to 10 m/min)
- Driving Performance - Speed in driving gear: 0 to 59 ft/min (0 to 18 m/min)
- Electrical System - :
- Electrical System - Power supply: 24 V DC
- Engine - Cooling: Water
- Engine - Displacement: 370 in³ (6,057 cm³)
- Engine - Emissions standards: US EPA Tier 4f
- Engine - Engine manufacturer: Deutz
- Engine - Number of cylinders: 6
- Engine - Rated power at 2,300 rpm: 180 kW / 241 HP / 245 PS
- Engine - Sound power level in accordance with EN 500-6, engine | operator's platform: ≤ 102 dB(A) | ≥ 80 dB(A)
- Engine - Type: TCD 6.1 L6
- Height Adjustment - :
- Height Adjustment - Hydraulic: 3 ft 7 in (1,100 mm)
- Tank Capacities - AdBlue®/DEF: 9 gal (32 l)
- Tank Capacities - Fuel: 106 gal (400 l)
- Tank Capacities - Hydraulic oil: 53.8 gal (200 l)
- Tank Capacities - Water: 145 gal + 145 gal (550 l + 550 l)
- Transport Dimensions (L X W X H) - Maximum paving width (WPS 62i: 24 ft / WPS 102i: 40 ft): 31 ft x 11 ft 6 in x 10 ft 8 in (9,450 x 3,500 x 3,250 mm)
- Transport Dimensions (L X W X H) - Minimum paving width (12 ft): 19 ft 6 in x 11 ft 6 in x 10 ft 8 in (5,950 x 3,500 x 3,250 mm)
- Weight Specifications - Belt trolley for conveyor belt: 3,307 lbs (1,500 kg)
- Weight Specifications - NOTE: *2 = Machine weight including machine tractor, concrete equipment, conveyor belt, half-full fuel tank, half-full water tank, full hydraulic oil tank, vehicle tool kits, machine operator (165 lbs (75 kg)), excluding optional equipment *3 = Machine weight including machine tractor, concrete equipment, vehicle tool kits, excluding conveyor belt *4 = Machine weight including machine tractor, concrete equipment, vehicle tool kits, half-full fuel tank, half-full hydraulic oil tank, empty water tank, excluding conveyor belt *5 = Length between pulley centers
- Weight Specifications - Operating weight CE *2 (at maximum paving width): 82,629 lbs (37,480 kg)
- Weight Specifications - Operating weight CE *2 (at minimum paving width): 76,390 lbs (34,650 kg)
- Weight Specifications - Powerful conveyor belt used to feed concrete from the side, length 22 ft (6.70 m) *5: 13,228 lbs (6,000 kg)
- Weight Specifications - Powerful conveyor belt used to feed concrete from the side, length 25 ft (7.60 m) *6:
- Weight Specifications - Powerful conveyor belt used to feed concrete from the side, length 28 ft (8.50 m) *6:
- Weight Specifications - Transport Weight Conveyor Belt:
- Weight Specifications - Transport Weight Machine (at maximum paving width) *4: 62,303 lbs (28,260 kg)
- Weight Specifications - Transport Weight Machine (at minimum paving width) *3: 56,086 lbs (25,440 kg)
