Wirtgen SP102i
| Make | Wirtgen |
| Model | SP102i |
| Type | Inset Slipform Pavers |
How can we help?
Description

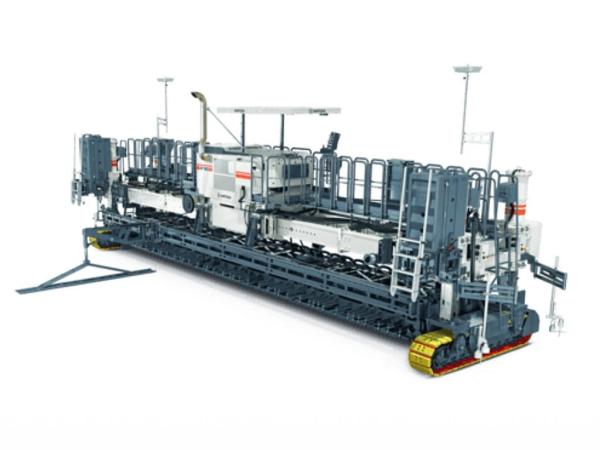

WIRTGEN SP102i – INSET SLIPFORM PAVERS
Offset pavers are used to produce monolithic concrete profiles such as protective concrete walls, curb profiles, gutters or narrow paths. Thanks to numerous options, such as for concrete feeding or slipforming, offset slipform pavers are extremely versatile. Inset pavers cost-effectively produce concrete pavements, such as for motorways, arterial roads, runways or railway lines. In addition to single-layer concrete paving, bottom-layer and top-layer concrete can also be paved synchronously in two layers ‘wet on wet’.

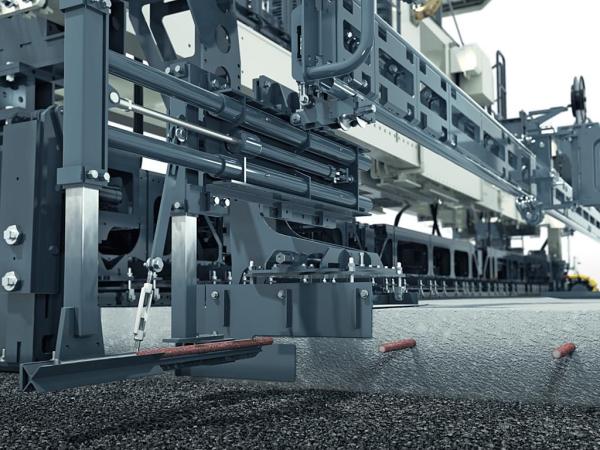

With inset slipform pavers, the concrete is placed directly in front of the machine and distributed by a spreading auger or spreading plough. Vibrators compact the concrete homogeneously and the mold forms it in the specified width and thickness as the slipform paver advances. Integrated dowel bar and tie bar inserters position dowel bars and tie bars as specified. The finishing beam levels the area transverse to the pavement and the super smoother creates a perfect surface. When paving dual-layer concrete, the bottom-layer and top-layer concrete are processed simultaneously and paved wet-in-wet.
THE BENCHMARK FOR PERFECT CONCRETE PAVING UP TO 40 FT (12 M)
• Economical two-tracked paver for a wide variety of paving applications at working widths of up to 40 ft (12 m).
• Covers the common paving sizes for airport, industrial and residential paving projects.
• Easy modification for transport and quick availability on site.
• Exceptionally low machine ground pressure.
FEATURES
FULLY MODULAR MACHINE LAYOUT
The paver’s fully modular design is synonymous with flexible modification, easy retrofitting of optional equipment features and application-specific adjustment to site conditions.
SOPHISTICATED TRANSPORT CONCEPT
Compact dimensions and the two-track design of the SP 102i ensure ease of transport as well as quick setup and operational readiness. Super smoother and concrete spreading equipment can remain mounted on the machine during transport.
EXCEPTIONAL VERSATILE CONCRETE PAVING
The slipform paver achieves perfection in the highly precise paving of standard concrete slabs at widths ranging from 16 ft to 40 ft and layer thicknesses of up to 18 in.
PROVEN SLAB PAVING MOLD
Customers get the highly accurate and durable 1310 wi series imperial inset slab paving mold with removable wear sole. The mold can be equipped with up to three crown profiles for parabolic crown paving depending on the machine’s configuration.
PRECISE COMPACTION TECHNOLOGY
The machine is equipped with a hydraulic vibrator drive to ensure precise compaction in any site condition. It comes with 18 hydraulic connectors in standard design but can optionally be fitted with a vibrator drive for 30 hydraulic vibrators.
ENGINE TECHNOLOGY AND OPERATION
The ECO mode feature automatically adjusts the engine speed to the current power requirements, thus ensuring engine efficiency, lower exhaust emissions and low noise emissions.
STATE-OF-THE-ART ENGINE TECHNOLOGY
The SP 102i features state-of-the-art, high-performance engine technology (Rated power: 231 kW / 310 HP / 314 PS) complying with exhaust emission standard US EPA Tier 4f.
PERFECTION IN ERGONOMICS AND HANDLING

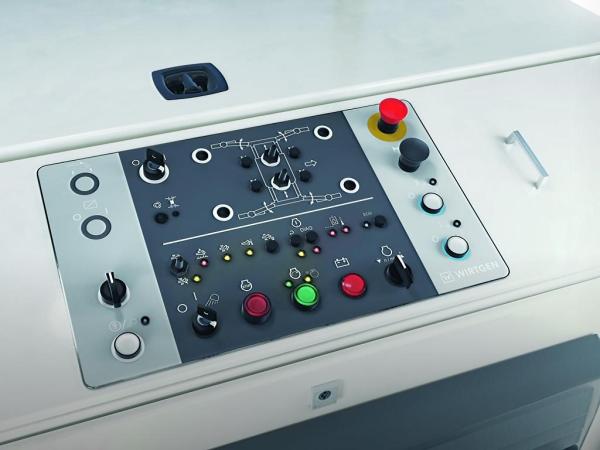

Comfortable working is ensured by the ergonomically designed workplace offering perfect visibility and an intuitive operating concept standardized for all WIRTGEN SP model ranges.
HIGH-PRECISION STEERING AND DRIVE SYSTEMS
Intelligent control systems for exceptionally smooth operation and the highly responsive skid steering system ensure precision in concrete paving.
MACHINE CONTROL SYSTEMS WITH ADVANCED INTELLIGENCE
The efficient WIRTGEN WITOS FleetView telematics system supports fleet management, machine position and status monitoring, as well as maintenance and diagnostic processes.
FIELD-PROVEN 3D INTERFACE
The field-proven interface guarantees tested compatibility with the 3D control systems of leading suppliers.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Specifications
- CENTRAL CROWN - NOTE: *3 = Values within standard transport height; special dimensions on request
- CENTRAL CROWN - Variable adjustment range *3: For paving widths of 16 ft to 28 ft: max. 3% | For paving widths of 28 ft to 40 ft: max. 2%
- CONCRETE SPREADING - Spreading auger:
- CONCRETE SPREADING - Spreading plow: Modular extension up to 40 ft
- CRAWLER UNITS - Number: 2
- CRAWLER UNITS - Type B0: Dimensions (L x W x H):
- CRAWLER UNITS - Type B1: Dimensions (L x W x H):
- CRAWLER UNITS - Type B4: Dimensions (L x W x H): 11 ft 1 in x 20 in x 2 ft 5 in (3,380 x 500 x 748 mm)
- DRIVING CHARACTERISTICS - Paving speed: 0 to 16 ft/min (0 to 5 m/min)
- DRIVING CHARACTERISTICS - Travel speed in travel gear: 0 to 65 ft/min (0 to 20 m/min)
- ELECTRICAL SYSTEM - Electric vibration:
- ELECTRICAL SYSTEM - Electrical power supply: 24 V DC
- ENGINE - Cooling: Water
- ENGINE - Displacement: 543 in³ (8,900 cm³)
- ENGINE - Emission standards: US EPA Tier 4f
- ENGINE - Engine manufacturer: Cummins
- ENGINE - Fuel consumption 2/3 load: 11.0 gal/h (41.7 l/h)
- ENGINE - Fuel consumption, full load: 16.5 gal/h (62.5 l/h)
- ENGINE - Number of cylinders: 6
- ENGINE - Rated power:
- ENGINE - Rated power at 2,100 RPM: 231 kW / 310 HP / 314 PS
- ENGINE - Rated power at 2,300 RPM:
- ENGINE - Sound power level in accordance with DIN EN 500-2 engine | Operator’s platform: ≤ 101 dB(A) | ≥ 82 dB(A)
- ENGINE - Type: L9 C-310
- HEIGHT ADJUSTMENT OF MACHINE - Hydraulic height adjustment: 3 ft 3 in (1,000 mm)
- HEIGHT ADJUSTMENT OF MACHINE - Mechanical height adjustment:
- MACHINE WEIGHTS - Machine weight *5: 55,000 lbs to 110,000 lbs (25,000 kg to 50,000 kg)
- MACHINE WEIGHTS - NOTE: *4 = Weight of machine, half weight of all operating materials, on-board tools, machine operator (165 lb (75 kg)), no optional equipment features *5 = Weights depend on the actual equipment installed and paving width
- MACHINE WEIGHTS - Operating weight, CE *4 (including slab paving mold type 910m), 3.50 m : 86,000 lbs (39,000 kg)
- RANGE OF APPLICATIONS - NOTE: *1 = Special paving widths, paving heights, and options available on request
- RANGE OF APPLICATIONS - Slab paving application *1:
- RANGE OF APPLICATIONS - Slab paving application with central crown *1: Paving width: 16 ft to 40 ft | Paving height: up to 18 in (450 mm)
- RANGE OF APPLICATIONS - Slab paving application without central crown *1: Paving width: 16 ft to 40 ft | Paving height: up to 18 in (450 mm)
- SLAB PAVING EQUIPMENT - Dowel bar inserter (DBI):
- SLAB PAVING EQUIPMENT - Longitudinal joint tie bar inserter:
- SLAB PAVING EQUIPMENT - Oscillating beam:
- SLAB PAVING EQUIPMENT - Side tie bar inserter:
- SLAB PAVING EQUIPMENT - Side tie bar inserter (hydraulic):
- SLAB PAVING EQUIPMENT - Slab paving mold type 910 m (excluding wearing pan and crown function: Modular extension up to 40 ft
- SLAB PAVING EQUIPMENT - Slab paving mold type 910 m (including wearing pan and crown function: Modular extension up to 40 ft
- SLAB PAVING EQUIPMENT - Super smoother: Modular extension up to 40 ft
- TANK CAPACITIES - AdBlue®/DEF tank *2: 15 gal (57 l)
- TANK CAPACITIES - Additional water tank:
- TANK CAPACITIES - Fuel tank: 132 gal (500 l)
- TANK CAPACITIES - Hydraulic fluid tank:
- TANK CAPACITIES - Hydraulic oil tank, electric vibration:
- TANK CAPACITIES - Hydraulic oil tank, hydraulic vibration: 100 gal (380 l)
- TANK CAPACITIES - NOTE: *2 = AdBlue® is a registered trademark of the German Association of the Automotive Industry (VDA)
- TANK CAPACITIES - Water tank: 145 gal + 145 gal (550 l + 550 l)
- TANK CAPACITIES - Water tank (option):
- TRANSPORT DIMENSIONS (L X W X H) - Paving width 16 ft: Including slab paving mold type, including spreading plow and super smoother: 23 ft x 11 ft 10 in x 10 ft 6 in (7,000 x 3,600 x 3,200 mm)
- TRANSPORT DIMENSIONS (L X W X H) - Paving width 30 ft: Including slab paving mold type, including spreading plow and super smoother: 46 ft 11 ft x 11 ft 10 in x 10 ft 6 in (14,300 x 3,600 x 3,200 mm)
- VIBRATORS AND CIRCUITS - Connectors for electric vibration :
- VIBRATORS AND CIRCUITS - Connectors for hydraulic vibration: 18 (optional 24 or 30)
- VIBRATORS AND CIRCUITS - Electically driven vibrators:
- VIBRATORS AND CIRCUITS - Hydraulically driven vibrators: Bent/straight (D66)
