Vogele VF500

Make	Vogele
Model	VF500
Type	Extending Screeds

How can we help?

Description

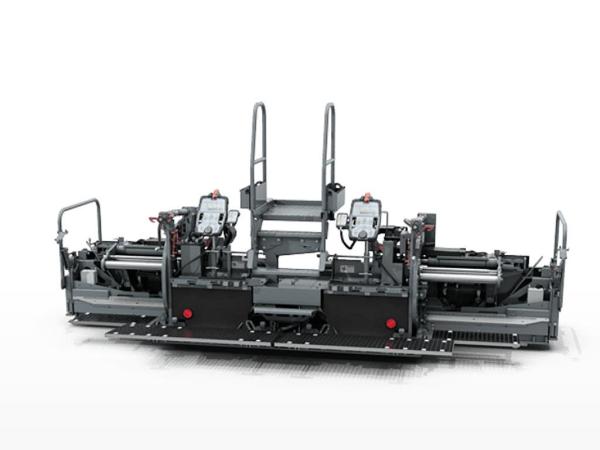

VF 500 — EXTENDING SCREED

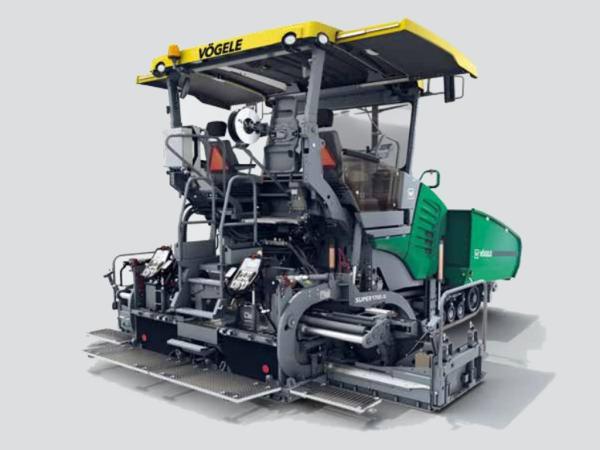

The VF 500 Extending Screed has been specially developed for the SUPER 1700-3i and SUPER 1703-3i pavers of the Universal Class. The VF 500 is ideal for applications which require a variable paving width, such as parking lots with islands and light masts, roads for residents only, urban roads with manhole covers, gas or water connections, junctions on highways or work on country roads, i.e. jobs which involve paving around obstacles.

HIGHLIGHTS

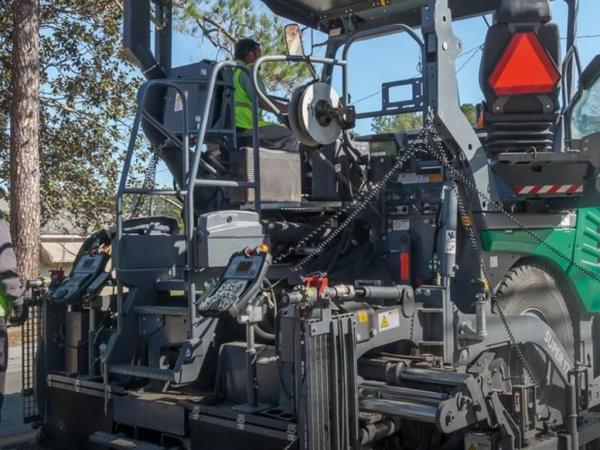

ERGONOMIC SCREED OPERATOR'S CONSOLE

The height and orientation of the console are easy to adjust. The high-contrast colour display can be read clearly from all angles.

OUTSTANDING PAVING CHARACTERISTICS

Optimized geometry of the tamper bar and the screed plates achieves particularly stable floating behaviour of the screed.

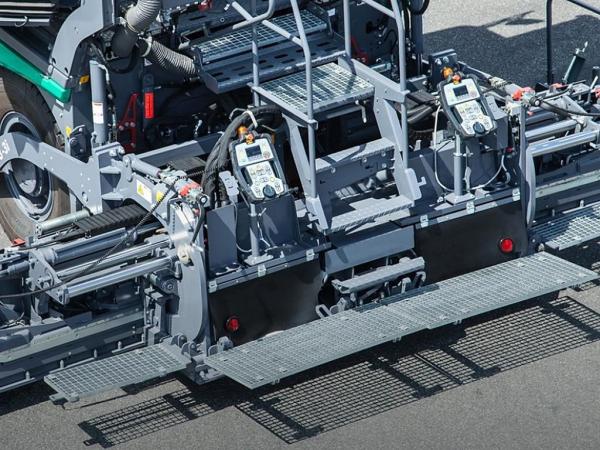

SAFE, CONVENIENT SCREED STEP

The walkway and convenient central step on the screed allow safe, convenient access to the paver operator's platform.

HYDRAULIC CROWN ADJUSTMENT

Crown can be conveniently adjusted at the touch of a button on the screed operator’s console.

HIGHLY EFFICIENT SCREED HEATING

The modern three-phase AC generator rapidly heats all the components of the screed to the ideal operating temperature.

All details, illustrations and texts are non-binding and may include optional additional fittings. Subject to technical modifications. Performance data dependent upon operational conditions. Specifications are subject to change without prior notice.

Specifications

Berm - :
Berm - Berm: 30 cm | 45 cm | 60 cm
Bolton Extensions - :
Bolton Extensions - Bolt-On Extensions: 30 cm | 60 cm
Compacting Systems - Hydraulic oil pressure :
Compacting Systems - Pressure bars (P):
Compacting Systems - Pulse frequency:
Compacting Systems - Screed Version: TV
Compacting Systems - Stroke adjustable TP1/TP2 :
Compacting Systems - Tamper (T):
Compacting Systems - Vibrators (V): eccentric vibration up to 3,000 rpm
Crown Adjustment - Hydraulic Adjustment: 2.5% to +5%* | M, W or parabolic profiles possible
Pave Widths - Basic Width: 2.45 m
Pave Widths - Infinitely Variable Range: up to 4.75 m
Pave Widths - Pave Width: 2.45 m to 5.95 m
Screed Heating - :
Screed Heating - Heating: screed plates heated by means of electric heating rods
Transport Dimensions (Basic Screed) - Depth: 1.21 m
Transport Dimensions (Basic Screed) - Weight: 2,950 kg
Transport Dimensions (Basic Screed) - Width: 2.59 m
Transverse Slope - :
Transverse Slope - Extension Units: up to 10%
