Vogele AB600-5
| Make | Vogele |
| Model | AB600-5 |
| Type | Extending Screeds |
How can we help?
Description

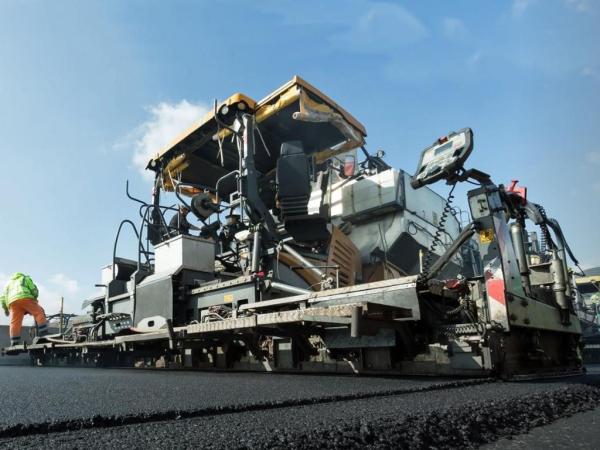

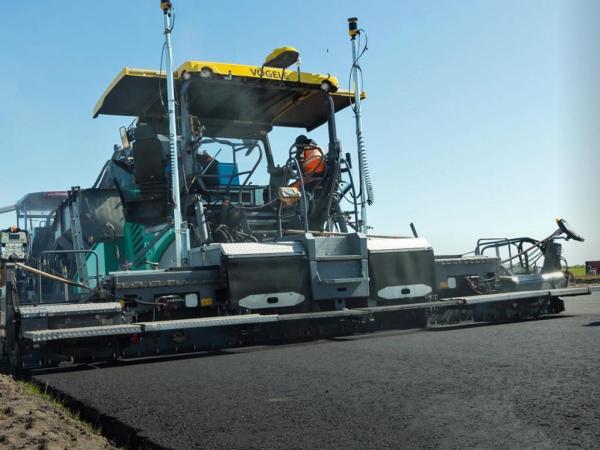

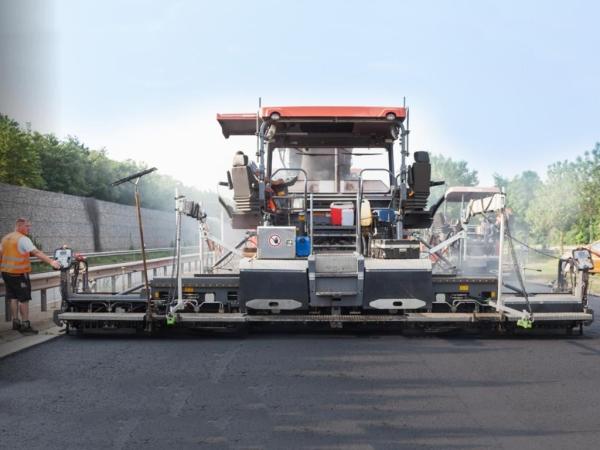

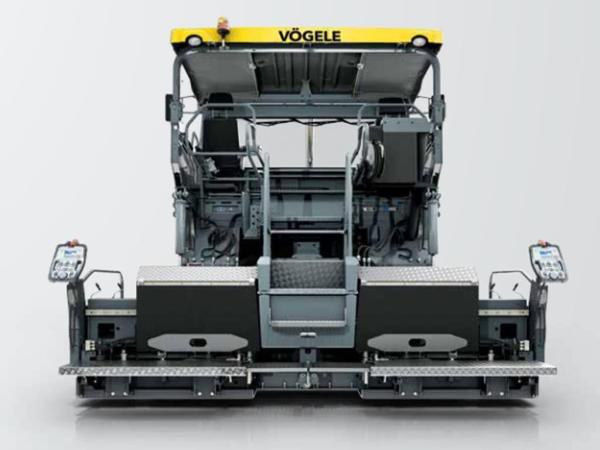

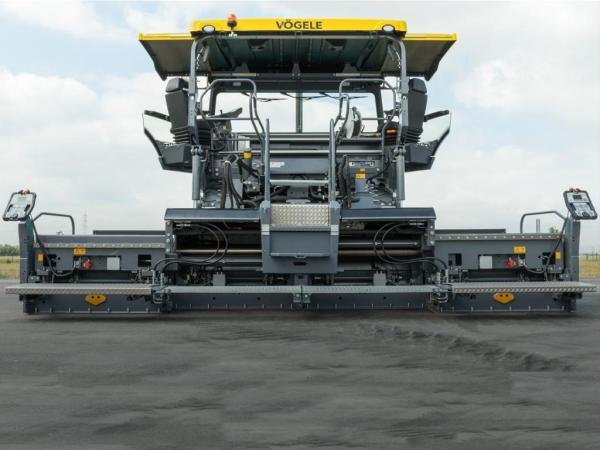

AB 600-5 — EXTENDING SCREED
The AB 600 has a basic width of 3 m. Equipped with the rugged single-tube telescoping system, its screed width is infinitely variable up to 6 m. With the addition of bolt-on extensions, lanes as wide as 9.5 m can be paved without joints. This consequently makes the screed ideal for use with VÖGELE SUPER pavers of the Universal Class and the Highway Class. VÖGELE extending screeds, either front or rear-mounted are tailored specifically to meet the requirements of the North American and Australian market and cover a wide range of applications. They are characterized by a high level of variability and are therefore ideal for paving different widths and winding roads. These VÖGELE screeds ensure high paving quality, even on projects involving long distances, large widths or high speeds. As state-of-the-art products, they accurately maintain paving parameters at the specified level throughout the entire paving phase.
HIGHLIGHTS
ERGONOMIC SCREED OPERATOR'S CONSOLE
The height and orientation of the console are easy to adjust. The high-contrast colour display can be read clearly from all angles.
OUTSTANDING PAVING CHARACTERISTICS
Optimized geometry of the tamper bar and the screed plates achieves particularly stable floating behaviour of the screed.
SAFE, CONVENIENT SCREED STEP
The walkway and convenient central step on the screed allow safe, convenient access to the paver operator's platform.
HYDRAULIC CROWN ADJUSTMENT
Crown can be conveniently adjusted at the touch of a button on the screed operator’s console.
HIGHLY EFFICIENT SCREED HEATING
The modern three-phase AC generator rapidly heats all the components of the screed to the ideal operating temperature.
All details, illustrations and texts are non-binding and may include optional additional fittings. Subject to technical modifications. Performance data dependent upon operational conditions. Specifications are subject to change without prior notice.
Specifications
- Bolton Extensions - :
- Bolton Extensions - Bolt-On Extensions: 25 cm | 75 cm | 125 cm
- Compacting Systems - Hydraulic oil pressure : up to 120 bar | infinitely adjustable
- Compacting Systems - Pressure bars (P): driven by pulsed-flow hydraulics
- Compacting Systems - Pulse frequency: 68 Hz
- Compacting Systems - Screed Version: TP2
- Compacting Systems - Stroke adjustable TP1/TP2 : 2, 4 and 7 mm
- Compacting Systems - Tamper (T): speed up to 1,800 rpm
- Compacting Systems - Vibrators (V): eccentric vibration up to 3,000 rpm
- Crown Adjustment - Hydraulic Adjustment: 2.5% to +5%* | M, W or parabolic profiles possible
- Pave Widths - *: Depending on paver type
- Pave Widths - Basic Width: 3 m
- Pave Widths - Infinitely Variable Range: up to 6 m
- Pave Widths - Pave Width: 2.55 m to 9.5 m*
- Screed Heating - :
- Screed Heating - Heating: screed plates, tamper bars and pressure bars heated by means of electric heating rods
- Transport Dimensions (Basic Screed) - Depth: 1.41 m
- Transport Dimensions (Basic Screed) - Weight: 4,350 kg
- Transport Dimensions (Basic Screed) - Width: 3 m
- Transverse Slope - :
- Transverse Slope - Extension Units: up to 2%
