Vogele AB340V
| Make | Vogele |
| Model | AB340V |
| Type | Extending Screeds |
How can we help?
Description

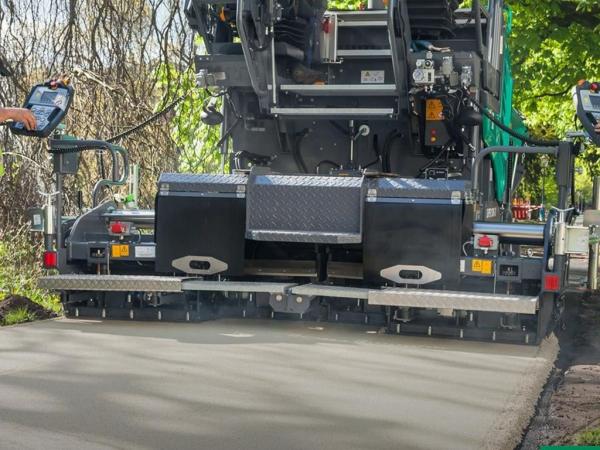

AB 340V — EXTENDING SCREED
The AB 340 Extending Screed is the perfect match for the compact pavers of the 1000 and 1300 classes. With a basic width of 1.8 m and a maximum pave width of 5 m, the screed is the ideal size for constructing combined footpaths and cycle paths, minor rural roads and narrow roads or squares. A typical VÖGELE feature, also found in the AB 340 Extending Screed, is high-performance electric heating. The modern heating system quickly and uniformly heats the screed to operating temperature, ensuring a smooth paving result
HIGHLIGHTS
ERGONOMIC SCREED OPERATOR'S CONSOLE
The height and orientation of the console are easy to adjust. The high-contrast colour display can be read clearly from all angles.
OUTSTANDING PAVING CHARACTERISTICS
Optimized geometry of the tamper bar and the screed plates achieves particularly stable floating behaviour of the screed.

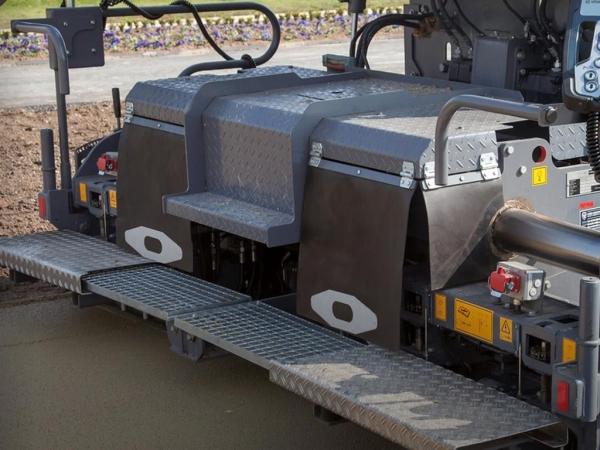

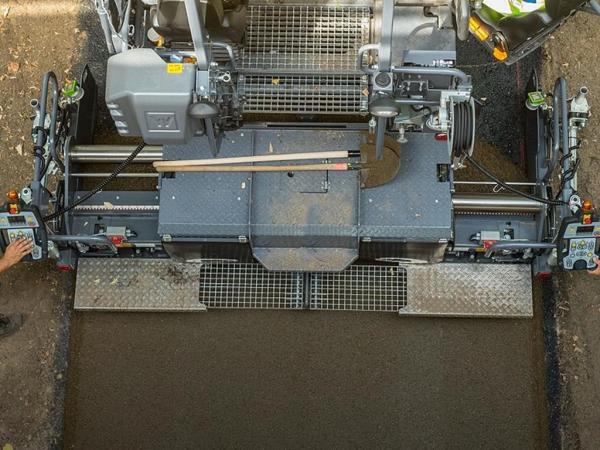

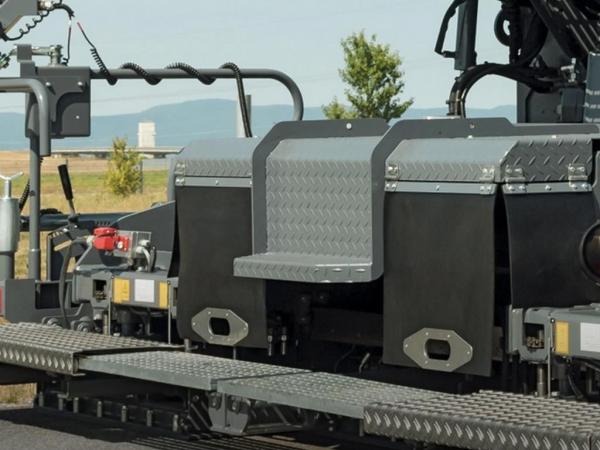

SAFE, CONVENIENT SCREED STEP
The walkway and convenient central step on the screed allow safe, convenient access to the paver operator's platform.
HYDRAULIC CROWN ADJUSTMENT
Crown can be conveniently adjusted at the touch of a button on the screed operator’s console.
HIGHLY EFFICIENT SCREED HEATING
The modern three-phase AC generator rapidly heats all the components of the screed to the ideal operating temperature.
All details, illustrations and texts are non-binding and may include optional additional fittings. Subject to technical modifications. Performance data dependent upon operational conditions. Specifications are subject to change without prior notice.
Specifications
- Bolton Extensions - :
- Bolton Extensions - Bolt-On Extensions: 25 cm | 40 cm
- Compacting Systems - Version: V
- Compacting Systems - Vibrators (V): eccentric vibration up to 3,000 rpm
- Crown Adjustment - Mechanical: -2.5% to +3%
- Crown Adjustment - Optional Hydraulic Adjustment: M, W or parabolic profiles possible
- Pave Widths - *: Depending on paver type
- Pave Widths - Basic Width: 1.8 m
- Pave Widths - Infinitely Variable Range: up to 3.4 m
- Pave Widths - Pave Width: 0.75 m to 4.2 m *

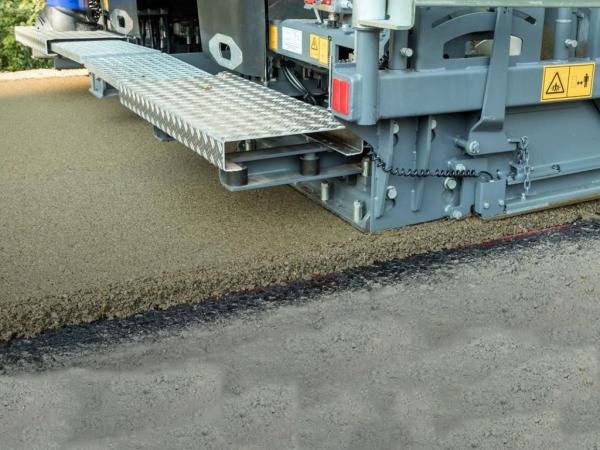

- Reduction In Width - :
- Reduction In Width - Cut-off Shoes: 52.5 cm
- Screed Heating - :
- Screed Heating - Heating: screed plates and tamper bars heated by means of electric heating rods
- Transport Dimensions (Back Screed) - Depth: 1.1 m
- Transport Dimensions (Back Screed) - Weight: 1350 kg
- Transport Dimensions (Back Screed) - Width: 1.8 m
- Transverse Slope - :
- Transverse Slope - Extension Units: up to 2%
