Description

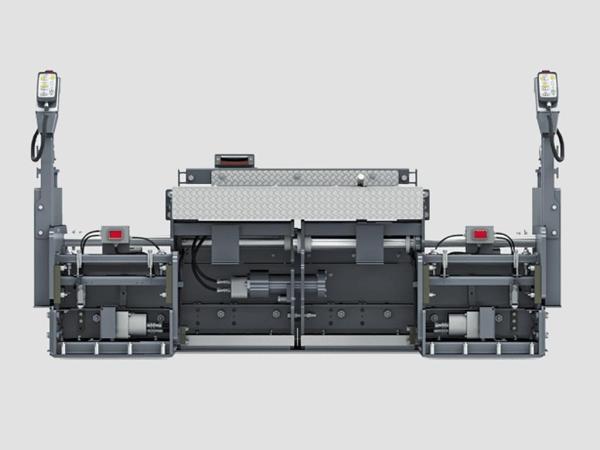

AB 220V — EXTENDING SCREED
The AB 220 Extending Screed delivers maximum precision and high pre-compaction values on our small pavers. The AB 220 V with vibrators was designed specifically for use with the SUPER 700(i). Bolt-on extensions can be used to extend the AB 220 V to a maximum pave width of 3.2 m.
HIGHLIGHTS

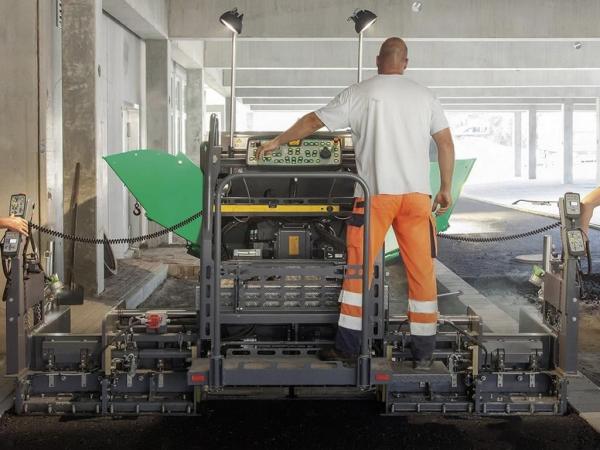

ERGONOMIC SCREED OPERATOR'S CONSOLE
The height and orientation of the console are easy to adjust. The high-contrast colour display can be read clearly from all angles.
OUTSTANDING PAVING CHARACTERISTICS
Optimized geometry of the tamper bar and the screed plates achieves particularly stable floating behaviour of the screed.

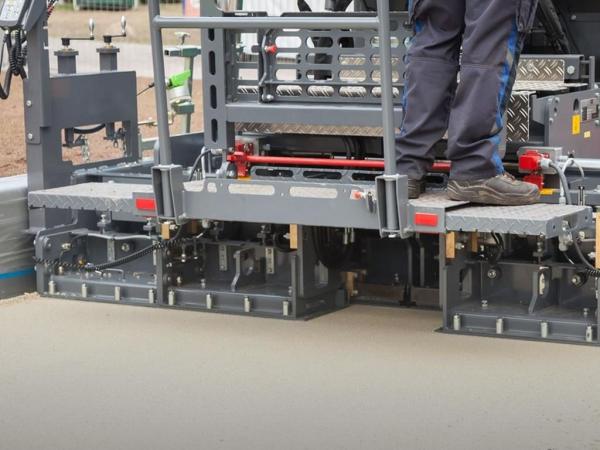

SAFE, CONVENIENT SCREED STEP
The walkway and convenient central step on the screed allow safe, convenient access to the paver operator's platform.
HYDRAULIC CROWN ADJUSTMENT
Crown can be conveniently adjusted at the touch of a button on the screed operator’s console.
HIGHLY EFFICIENT SCREED HEATING
The modern three-phase AC generator rapidly heats all the components of the screed to the ideal operating temperature.
All details, illustrations and texts are non-binding and may include optional additional fittings. Subject to technical modifications. Performance data dependent upon operational conditions. Specifications are subject to change without prior notice.
Specifications
- Bolton Extensions - :
- Bolton Extensions - Bolt-on Extensions: 25 cm | 50 cm
- Compacting Systems - :
- Compacting Systems - Version: V
- Compacting Systems - Vibrators (V): Eccentric vibration up to 3,300 rpm
- Crown Adjustment - :
- Crown Adjustment - Mechanical: -2% to +4%
- Pave Widths - *: Depending on paver type
- Pave Widths - Basic Width: 1.2 m
- Pave Widths - Infinitely Variable Range: up tp 2.2 m
- Pave Widths - Pave Widths: 0.5 m to 3.5 m*
- Reduction In Width - :
- Reduction In Width - Variable Adjustment: 0.5 m to 1.2 m
- Screed Heating - :
- Screed Heating - Heating: Screed plates and tamper bars heated by means of electric heating rods
- Transport Dimensions (Basic Screed) - Depth: 0.76 m
- Transport Dimensions (Basic Screed) - Weight: 720 kg
- Transport Dimensions (Basic Screed) - Width: 1.27 m
