Vogele SUPER 1703-3i
| Make | Vogele |
| Model | SUPER 1703-3i |
| Type | Universal Class |
How can we help?
Description

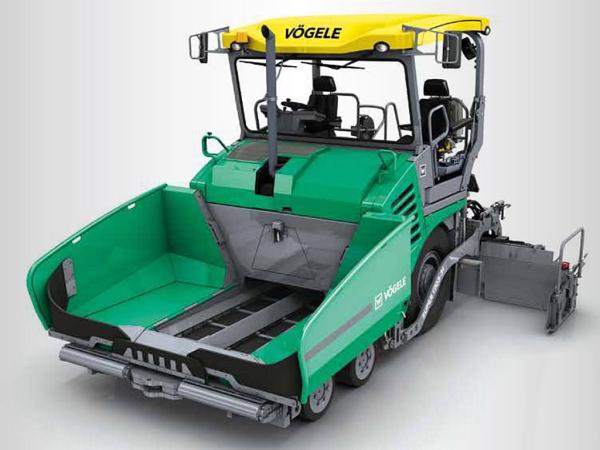

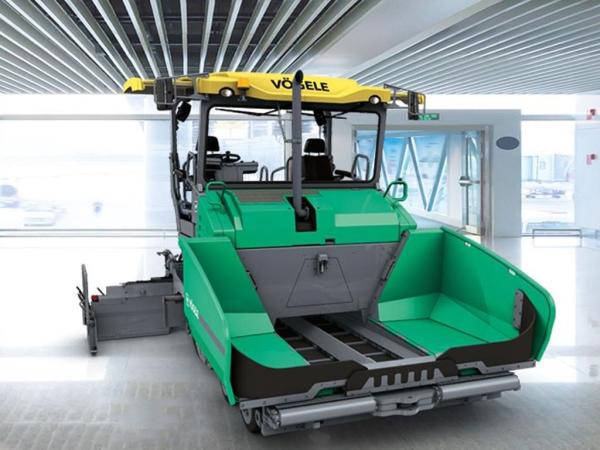

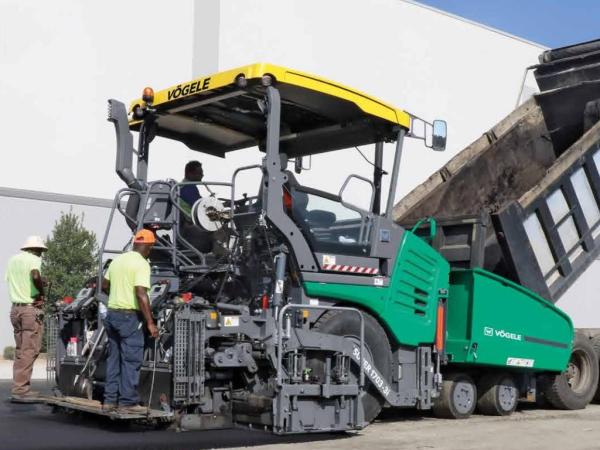

VÖGELE SUPER 1703-3i WHEELED PAVER UNIVERSAL CLASS
THE COMPACT-SIZED WHEELED PAVER IN THE 8-FOOT-CLASS
The wheeled SUPER 1703-3i paver has been specially designed for the requirements of the North American and Australian market. The 8-foot class wheeled paver is an all-rounder with great mobility. With its compact dimensions and Pivot Steer brake, the wheeled paver features excellent maneuverability, making it suitable for a wide variety of applications. The VÖGELE ErgoPlus 3 operating concept makes using the paver even safer and easier.
The wheeled VÖGELE SUPER 1703-3i is a cutting-edge 8-foot-class paver suitable for a wide variety of applications. Typical jobs are secondary roads and highways. Due to its compact design, the wheeled paver is also ideal for commercial and municipal applications.
With drive options (6x4 and 6x6), the SUPER 1703-3i is a versatile machine. The wheeled paver features plenty of power and high mobility to handle the most varied paving jobs, even in confined spaces.

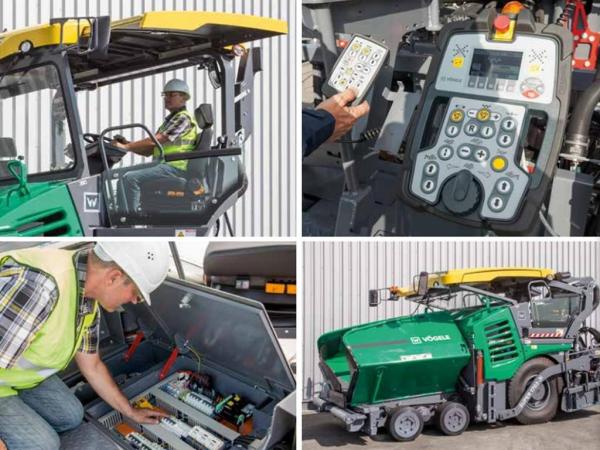

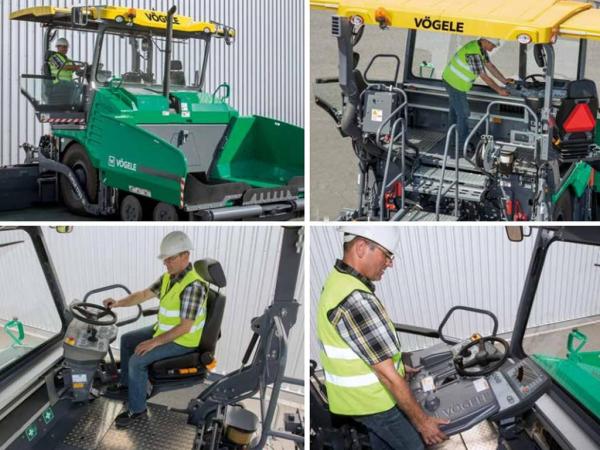

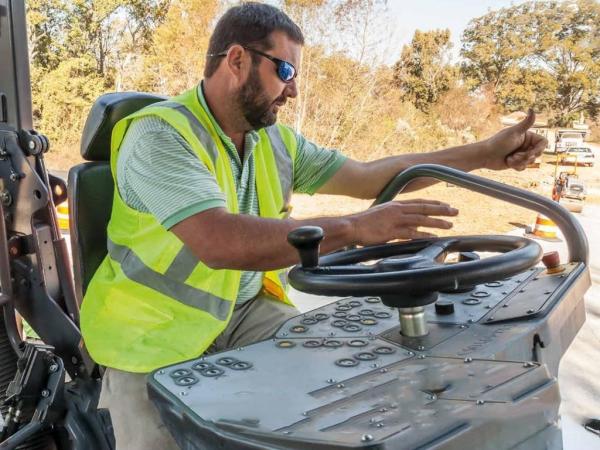

The SUPER 1703-3i also comes with the latest version of our operating system, the popular ErgoPlus 3, which has been enhanced with a number of new ergonomic and functional features. With its new mounting system, the paver operator’s console can be shifted conveniently and easily between the right and left sides of the operator’s stand during operation. In addition, it now has a large color display that ensures good readability even in poor lighting conditions. The screed consoles have been completely redesigned, making operation of this new “Dash 3” machine even easier for the entire paving crew.
With its new Universal Class paver, VÖGELE also offers the right screed for every application. The SUPER 1703-3i can be combined with the VF 500, a screed with front-mounted extensions. The VF 500 Extending Screed is equipped with a vibration system.
It goes without saying that our road pavers conform to the applicable emissions directives, but we like to go much further. That’s why the machine concept of the “Dash 3” generation uses environmentally friendly innovations in machine technology, resulting in lower consumption, lower emissions and lower costs. One of these innovations is the VÖGELE EcoPlus low-emissions package. Fuel savings of up to 25% can be achieved with VÖGELE EcoPlus, depending on the application and capacity utilization of the paver. That doesn’t just result in considerable savings for the contractor – it is good news for the environment, too. That’s because every liter of fuel saved reduces carbon dioxide (CO 2 ) emissions.

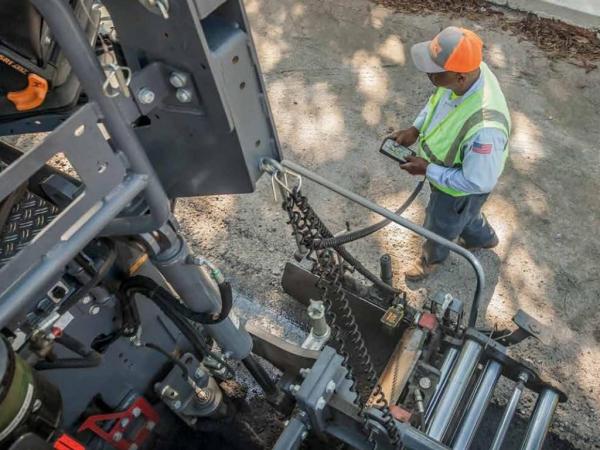

Niveltronic Plus, the System for Automatic Grade and Slope Control, is an in-house development by VÖGELE based on many years of experience in grade and slope control technology. Easy operation, precision and reliability are its hallmarks, ensuring perfect mastery of all grade and slope control jobs.
All of these features make this Universal Class machine a truly SUPER paver!
FEATURES
• 8-foot wheeled Universal Class paver with a large range of applications and paving widths up to 19 ft. 6 in. (5.95 m)
• Powerful engine complying with US EPA standard Tier 4f
• Innovative and reliable drive concept for excellent traction behavior
• Perfect paving quality due to perfect material management
• ErgoPlus 3 with numerous additional ergonomic and functional advantages.
• The right screed for every application. The paver can be combined with the VF 500 Extending Screed.
All details, illustrations and texts are non-binding and may include optional additional fittings. Subject to technical modifications. Performance data dependent upon operational conditions. Specifications are subject to change without prior notice.
Specifications
- Conveyors And Augers - Augers: 2
- Conveyors And Augers - Conveyors: 2
- Conveyors And Augers - Drive: separate hydraulic drives, proportional control
- Conveyors And Augers - Height: infinitely variable
- Conveyors And Augers - Lubrication: centralized lubrication system, electrically-driven grease pump
- Conveyors And Augers - Speed (up to) : 120 rpm
- Conveyors And Augers - Standard height: hydraulically adjustable by 6 in
- Conveyors And Augers - Version: with replaceable auger blades, reversible direction of rotation
- Dimensions (Transport) And Weights - Length VF 500 V: tractor and screed 19 ft. 7 in. (5.96 m)
- Dimensions (Transport) And Weights - Weights VF 500 V: tractor | hardtop and screed 38,140 lbs. (17.3 t)
- Dimensions (Transport) And Weights - Width: 8 ft. 6 in. (2.59 m)
- Drive - ECO mode output: 160 hp / 1,700 rpm
- Drive - Engine:
- Drive - Exhaust emissions after-treatment: DOC, SCR
- Drive - Exhaust emissions standard: European exhaust emissions standard 4, US standard EPA Tier 4f
- Drive - Manufacturer: Cummins
- Drive - Nominal output: 173 hp / 2,000 rpm
- Drive - Type: QSB 4.5 - C173
- Drive - Version: liquid-cooled 4-cylinder diesel engine

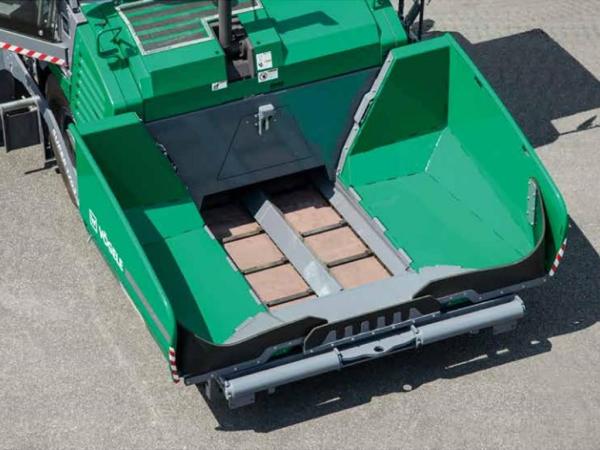

- Material Hopper - Positions: can be adjusted in a forward direction by 3 or 6 in
- Material Hopper - Push-rollers:
- Material Hopper - Standard: oscillating
- Screed Option - Layer Thickness: up to 12 in. (30 cm)
- Screed Option - Maximum Width : 19 ft. 6 in. (5.95 m)
- Screed Option - Power Supply: three-phase AC generator
- Screed Option - Screed Heating: electric, thermostat-controlled
- Screed Option - Screed Version: V
- Screed Option - VF 500: Infinitely variable range 8 ft. to 15 ft. 6 in. (2.45 m to 4.75 m)
- Undercarriage - Auxiliary brake: hydrostatic brake
- Undercarriage - Brakes:
- Undercarriage - Front wheels:
- Undercarriage - Option: 2 rear and 4 front wheels (6x6)
- Undercarriage - Parking brake: spring-loaded multiple-disk brake, maintenance-free
- Undercarriage - Paving speed (up to): 250 fpm
- Undercarriage - Rear wheels:
- Undercarriage - Service brake: generously-dimensioned multiple-disk brakes operated by foot pedal, maintenance-free
- Undercarriage - Speeds:
- Undercarriage - Standard: 2 rear and 2 front wheels (6x4)
- Undercarriage - Steering: hydraulic
- Undercarriage - Tire equipment: Elastic solid rubber tires
- Undercarriage - Tire size, front wheels: 540/300–390
- Undercarriage - Tire size, rear wheels: 14.00 R25
- Undercarriage - Traction drive:
- Undercarriage - Travel speed (up to): 12.5 mph
- Undercarriage - Version: Separate hydraulic drives
