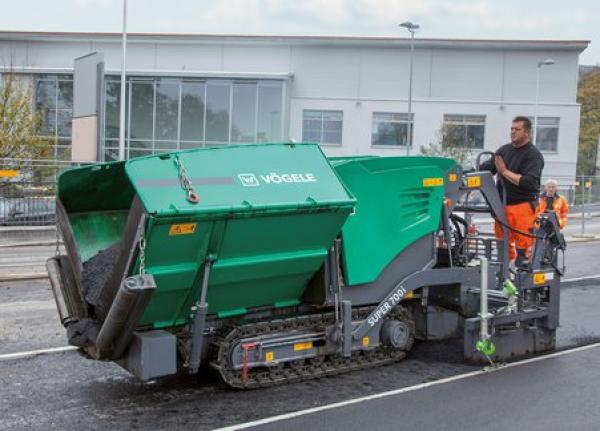

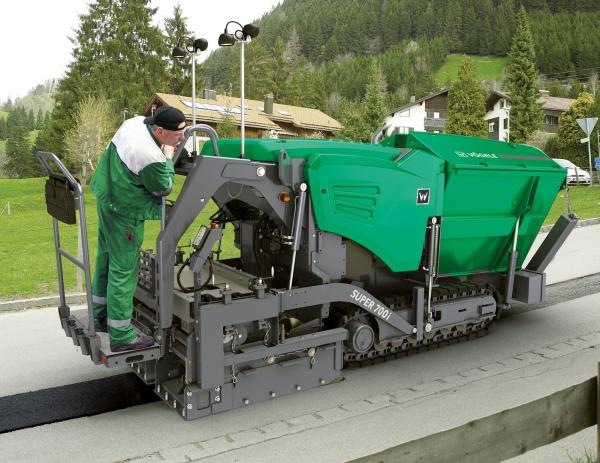

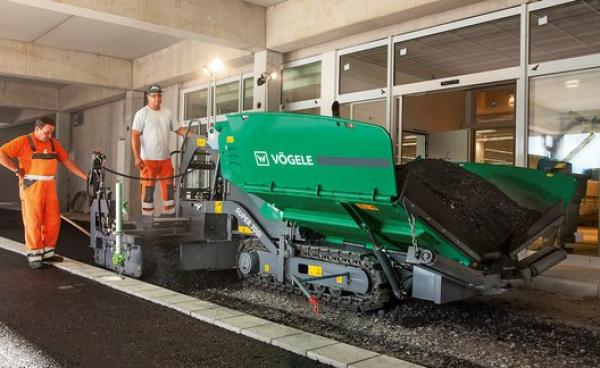

Vogele Super 700i
| Make | Vogele |
| Model | Super 700i |
| Type | Mini Class |
How can we help?
Description
Thanks to its compact design, variable pave width and high performance, the SUPER 700i is the ideal mini paver for surfacing footpaths and cycle paths, as well as for minor paving jobs and pavement repairs. Its excellent value for money and particularly simple operating concept make the SUPER 700i an ideal partner for garden and landscaping contractors, as well as for municipal authorities.
Specifications
- Augers : 2
- Augers Diameter: 300 mm
- Augers Drive: separate hydraulic drives, proportional control
- Augers Height: infinitely variable
- Augers Speed: 70 U/min
- Augers Standard height: mechanically adjustable by 10 cm
- Augers Version: auger rotation reversible, mounted overhung
- Conveyors : 1
- Conveyors Drive: separate hydraulic drives, proportional control
- Conveyors Speed: 31 m/min
- Conveyors Version: with replaceable feeder bars, direction of conveyor temporarily reversible
- Drive ECO mode output: 54 kW / 1800 U/min
- Drive Emission Daily noise exposure level : 80 dB
- Drive Emission Sound power level : 104 dB
- Drive Engine: liquid-cooled 4-cylinder diesel engine
- Drive Exhaust emissions after-treatment: DOC, DPF
- Drive Exhaust emissions standard: European exhaust emissions standard V, US standard EPA Tier 4f
- Drive Fuel tank: 80 l
- Drive Manufacturer : Deutz
- Drive Nominal output: 55.4 kW / 2200 U/min
- Drive Type: TCD 2.9 L4
- Length Screed : AB 220 V
- Length Total: 4.4 m
- Material Hopper Feed height (bottom of material hopper): 590 mm
- Material Hopper Hopper capacity: 5.8 t
- Material Hopper Push-Rollers Positions : can be adjusted in a forward direction by 100 mm and left by 500 mm
- Material Hopper Push-Rollers Standard: oscillating, fold up with hopper sides
- Material Hopper Width: 2,900 mm
- Maximum Laydown Rate: 250 t/h
- Operating Total Weight: 6,200 kg
- Operating Weight Screed: AB 220 V
- Screed Basic width : 1.2 m
- Screed Compacting systems: V
- Screed Heating: electric
- Screed Layer thickness (up to): 15 cm
- Screed Maximum width : 3.2 m
- Screed Power Supply: Three-phase AC generator
- Screed Type: AB 220
- Undercarriage Crawler tracks: provided with rubber pads
- Undercarriage Ground contact: 1500 mm x 180 mm
- Undercarriage Lubrication of track rollers: lifetime
- Undercarriage Speeds Pave speed crawler tracks (up to): 30 m/min
- Undercarriage Speeds Travel speed (up to): 3.6 km/h
- Undercarriage Track tension adjuster: spring assembly
- Undercarriage Traction drive crawler tracks: separate hydraulic drives with electronic control
Features
- Niveltronic Basic: VÖGELE has also developed the Niveltronic Basic System for Automated Grade and Slope Control to match the ErgoBasic operating concept. It is completely integrated in the machine control system and therefore perfectly adapted to the paver model concerned. Another outstanding aspect of Niveltronic Basic is its particularly simple and intuitive handling, a feature which makes it easy even for less experienced operators to use the system correctly. This creates ideal conditions for the Classic Line pavers to work true to line and level on any base.
- ErgoBasic: ErgoBasic was designed on the back of the tried and tested ErgoPlus operating system for our Premium Line pavers and tailored specifically to meet the demands and needs of VÖGELE Classic Line users. The goal was to develop an operating system which can be operated just as quickly, accurately and intuitively as the ErgoPlus 3 system on the “Dash 3” machines. That makes VÖGELE the only manufacturer to offer a standardized operating concept for all paver classes.
