Vogele MT 3000-2i Offset
| Make | Vogele |
| Model | MT 3000-2i Offset |
| Type | Offset |
How can we help?
Description
Powerful, flexible and versatile – the high-performance material feeder with pivoting conveyor

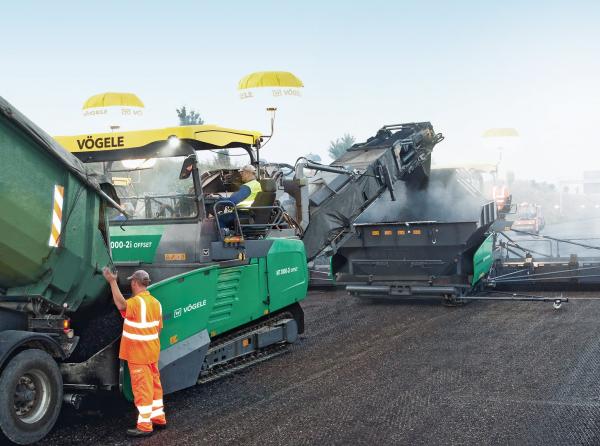

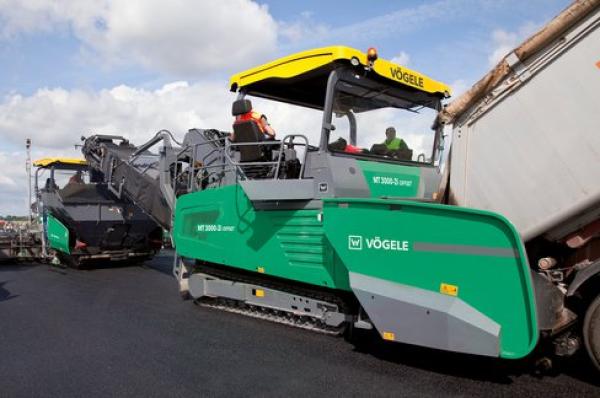

The MT 3000-2i Offset is a cutting-edge material feeder which ensures a consistently high flow of mix in different applications. Be it a conventional road building site to be supplied with asphalt mix or a trench running alongside the road which needs backfilling, the MT 3000-2i Offset with pivoting conveyor is the ideal feed solution. An innovative feed concept maximizes conveying capacity, while the ErgoPlus operating concept ensures safe and simple paver operation.
Specifications
- Auger diameter: 400 mm
- Auger drive: separate hydraulic drives
- Auger speed: 79 U/min
- Augers: 2, in material hopper
- Augers, optional: conical auger for homogenization of the material
- Augers, standard: cylindrical auger
- Conveying system capacity (up to): 1,200 t/h
- Conveying system capacity (up to): 1,200 t/h
- Conveyor: 2 continuous rubber conveyor belts
- Conveyor Belt width: 1,100 mm
- Conveyor drive: separate hydraulic drive
- Conveyor Screed heating: infrared heating panel, diesel-operated
- Drive Emission Daily noise exposure level : 80 dB
- Drive Emission Sound power level : 108 dB
- Drive Engine: liquid-cooled 4-cylinder diesel engine
- Drive Exhaust emissions after-treatment: DOC, DPF, SCR
- Drive Exhaust emissions standard: European exhaust emissions standard 4, US standard EPA Tier 4f
- Drive Fuel tank: 450 l
- Drive Manufacturer : Deutz
- Drive Nominal output: 160 kW / 2000 U/min
- Drive Type: TCD 6.1
- Extra Material Hopper Capacity, 2.5 m machine: 20 t
- Extra Material Hopper Capacity, 3 m machine: 25 t
- Extra Material Hopper Passive homogenization promoted by use of additional hopper: 18 t
- Length: in transport position
- Length in transport position: 8.95 m
- Material Hopper capacity of material feeder: 16.4 t
- Material Hopper Feed height of material feeder: 600 mm
- Material Hopper Positions of material feeder: can be adjusted in a forward direction by 75 mm or 150 mm
- Material Hopper Standard material feeder: oscillating
- Material Hopper Width of material feeder: 3,680 mm
- Maximum Laydown Rate: 1,100 t/h
- Offset feeding from the side: 3.5 m
- Operating Total Weight: 29,000 kg
- Operating Weight Screed: AB 600 TP2 Plus
- Pivoting angle: 55 °
- Pivoting conveyor: hydraulically pivoting
- Screed heating: infrared heating panel, diesel-operated
- Track gauge: 2.36 m
- Transfer height (up to): 3.9 m
- Transport width: 3 m
- Undercarriage Crawler tracks: provided with rubber pads
- Undercarriage Ground contact: 3060 mm x 305 mm
- Undercarriage Lubrication of track rollers: lifetime
- Undercarriage Speeds Pave speed crawler tracks (up to): 24 m/min
- Undercarriage Speeds Travel speed (up to): 4.5 km/h
- Undercarriage Track tension adjuster: spring assembly
- Undercarriage Traction drive crawler tracks: separate hydraulic drives with electronic control
- Weight: 24,300 kg
- With pivoting conveyor: 14.49 m
- With pivoting conveyor and funnel: 15.02 m
