Kleemann MBT 24i
![Kleemann](/files/download/image/600x0/fixed_width/126713af-f4b9-4283-9228-a363aa3f07a8.png)
![Kleemann](/files/download/image/600x0/fixed_width/86f435d5-dcea-42c0-84ae-92890381daf4.jpeg)
![Kleemann](/files/download/image/600x0/fixed_width/17412224-d64c-4f2c-abb8-ecde4cbfe85f.jpeg)
![Kleemann](/files/download/image/600x0/fixed_width/997b93de-bb4a-42f7-98b5-eccea31a3418.jpeg)
Make | Kleemann |
Model | MBT 24i |
Type | All Mobile Stackers |
How can we help?
Description
Properties

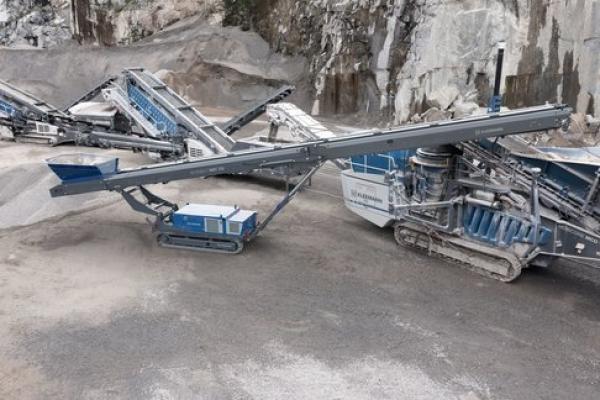

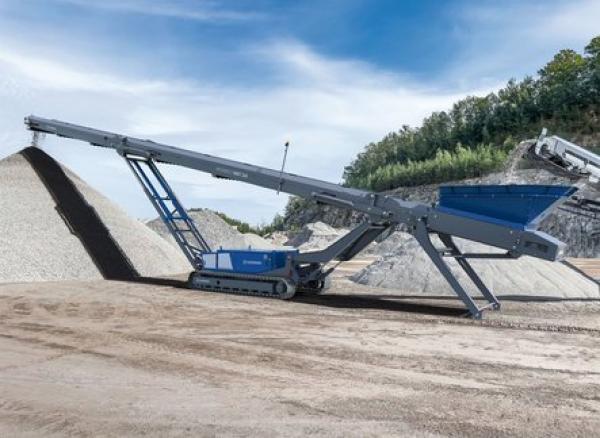

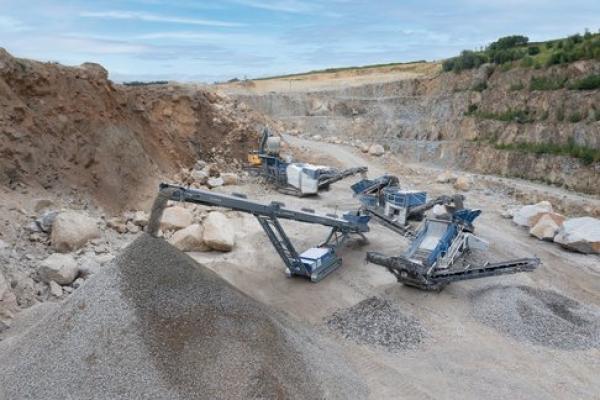

The mobile stackers MOBIBELT MBT 20(i)/MBT 24(i) are used for efficient logistics processes on work sites. They flexibly extend the operating range of mobile crushing and screening plants and guarantee larger stockpiles, improved work site logistics and all this combined with simple operation.
-
Generously dimensioned feed hopper
-
Diesel-hydraulic drive concept H-DRIVE, external power supply (optional)
-
Simple operation thanks to SPECTIVE operating position and local control elements
-
Hydraulically adjustable feeding and discharge height
Specifications
- CONVEYOR BELT - Belt drive, hydraulic: 38 in³
- CONVEYOR BELT - Belt spec: EP400/3 +1,5
- CONVEYOR BELT - Discharge height: 33 ft x 2 in
- CONVEYOR BELT - Stockpile volume: 1,770 yd³
- CONVEYOR BELT - Troughing angle: 45 °
- CONVEYOR BELT - Width x length: 39 in x 74 ft 6 in
- FEEDING UNIT - Feed capacity up to approx.: 496 US t/hr
- FEEDING UNIT - Hopper volume: 1.6 yd³
- FEEDING UNIT - Max. feed size: 8 in
- POWER SUPPLY UNIT - Diesel tank capacity: 58 Imp.gal
- POWER SUPPLY UNIT - Drive concept: H-DRIVE (Diesel-hydraulic)
- POWER SUPPLY UNIT - Power pack manufacturer (Stage V): John Deere
- POWER SUPPLY UNIT - Power pack manufacturer (Tier 3/ Stage IIIA): Kubota
- POWER SUPPLY UNIT - Power pack manufacturer (Tier 4/ Stage IV): John Deere
- POWER SUPPLY UNIT - Power supply unit output: 49 hp
- SIZE AND WEIGHT - Height x height: 33 ft x 12 in
- SIZE AND WEIGHT - Transport height max.: 8 ft x 4 in
- SIZE AND WEIGHT - Transport length: 38 ft x 9 in
- SIZE AND WEIGHT - Transport weight of basic plant: 27,750 lbs
- SIZE AND WEIGHT - Transport width: 7 ft x 6 in
- SIZE AND WEIGHT - Width: 7 ft x 6 in
- SIZE AND WEIGHT - Width x length: 7 ft 6 in x 71 ft 11 in
