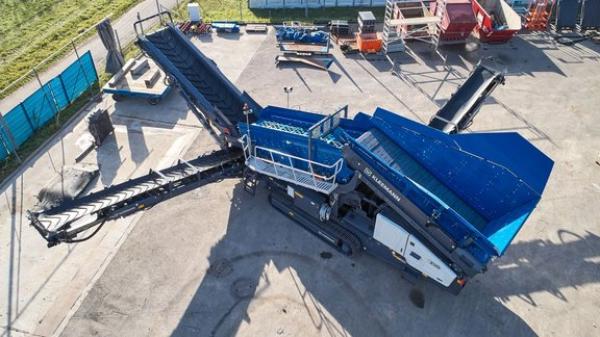

Kleemann MSS 802i EVO
| Make | Kleemann |
| Model | MSS 802i EVO |
| Type | Mobiscreen |
How can we help?
Description
Properties
Changing work sites and new applications often create challenges for screening plants. The mobile screen for coarse elements MOBISCREEN MSS 802 EVO is ideally prepared for this. The large range of screen surfaces and the simple setting of screening parameters make it possible to adapt the MSS 802 EVO easily to new application conditions.
-
Mobile double-deck screening unit
-
H-DRIVE Diesel-hydraulic drive
-
Screen for coarse elements
-
Maximum feed size 500 mm
Models
External power supply
The MSS EVO systems impress with their powerful diesel-hydraulic drive concept and reduced operating costs. All maintenance-relevant components are easily accessible. Service intervals for changing engine oil and filters are designed to be as long as possible. The machines can be conveniently refueled from both sides if one side is inaccessible due to a stockpile. The machines are also relatively quiet, which benefits both the operator and the environment.
Thanks to the optional electro-hydraulic dual-power drive, electrical operation is possible via an external power supply. This enables emission-free and therefore environmentally friendly work with even lower operating costs.
Scalping screens
The MOBISCREEN MSS 502 EVO and MSS 802 EVO have been designed as high-performance mobile coarse screening plants for changing challenges in different areas of application. With their sophisticated plant designs and flexible conversion options, the best material flow can be guaranteed for natural stone and recycling applications.
Recommended use
> Coarse screen for screening all types of rock and construction waste > Double-deck screen for classifying up to 3 fractions
> Extensive range of coarse screening surfaces
> Feed capacity from 350 t/h to 500 t/h (MSS 502 EVO/ MSS 802 EVO)
Screen surfaces
Screening media are put to the test in everyday life. Original KLEEMANN GRADE screening media are subject to particularly high quality requirements in order to ensure the permanent and reliable screening of the desired material.
The screening result itself is determined by numerous factors. The most important influencing factors include the grain shape, the moisture content and the feed quantity. For KLEEMANN coarse screening plants, GRADE offers a large selection of GRADE offers a large selection of screening media for the upper and lower deck, which can be equipped according to the application and the desired end result. The individual screen segments can be freely configured. That is flexibility in application!
Specifications
- BELT CONVEYOR, FINE GRAIN DISCHARGE - Width x length: 47 in x 14 ft 4 in
- DISCHARGE CONVEYOR PASSAGE, LOWER DECK (FINE GRAIN) - Discharge height max. approx.: 13 ft x 1 in
- DISCHARGE CONVEYOR PASSAGE, LOWER DECK (FINE GRAIN) - Discharge height min. approx. [Imperial]: 9 ft x 9 in
- DISCHARGE CONVEYOR PASSAGE, LOWER DECK (FINE GRAIN) - Discharge height, extended: 14 ft 5 in
- DISCHARGE CONVEYOR PASSAGE, LOWER DECK (FINE GRAIN) - Length approx.: 25 ft 6 in
- DISCHARGE CONVEYOR PASSAGE, LOWER DECK (FINE GRAIN) - Length, extended: 28 ft 9 in
- DISCHARGE CONVEYOR PASSAGE, LOWER DECK (FINE GRAIN) - Width approx.: 36 in
- DISCHARGE CONVEYOR, OVERFLOW, LOWER DECK (MEDIUM GRAIN) - Discharge height max. approx.: 11 ft
- DISCHARGE CONVEYOR, OVERFLOW, LOWER DECK (MEDIUM GRAIN) - Width x length: 35 in x 25 ft 6 in
- DISCHARGE CONVEYOR, OVERFLOW, UPPER DECK (OVERSIZE GRAIN) - Discharge height max. approx.: 13 ft 3 in
- DISCHARGE CONVEYOR, OVERFLOW, UPPER DECK (OVERSIZE GRAIN) - Width x length: 55 in x 19 ft 11 in
- FEEDING UNIT - Feed height: 11 ft 9 in
- FEEDING UNIT - Hopper volume: 11.9 yd³
- FEEDING UNIT - Max. feed size: 31 in x 20 in x 12 in
- FINAL SCREENING UNIT - Lower deck (W x L): 1 in x 14 ft x 9 in
- FINAL SCREENING UNIT - Lower deck width: 5 ft x 1 in
- FINAL SCREENING UNIT - Type: Double deck screen for coarse elements
- FINAL SCREENING UNIT - Upper deck (W x L): 1 in x 16 ft x 0 in
- FINAL SCREENING UNIT - Upper deck width: 5 ft x 1 in
- HOPPER DISCHARGE CONVEYOR - Length: 14 ft 9 in
- HOPPER DISCHARGE CONVEYOR - Type (optional): Variable speed
- HOPPER DISCHARGE CONVEYOR - Width x length: 55 in x 14 ft 9 in
- POWER SUPPLY UNIT - Drive concept: H-DRIVE (Diesel-hydraulic)
- POWER SUPPLY UNIT - Power pack manufacturer: John Deere
- POWER SUPPLY UNIT - Power supply unit output: 131 hp
- TRANSPORT - Transport height approx. (standard value): 11 ft 2 in
- TRANSPORT - Transport length approx.: 51 ft 12 in
- TRANSPORT - Transport length, extended, approx.: 55 ft x 1 in
- TRANSPORT - Transport weight max. configuration approx.: 84,900 lbs
- TRANSPORT - Transport weight of basic plant: 66,000 lbs
- TRANSPORT - Transport width approx.: 9 ft 10 in
