Kleemann MC 110i EVO2
| Make | Kleemann |
| Model | MC 110i EVO2 |
| Type | Mobicat |
How can we help?
Description

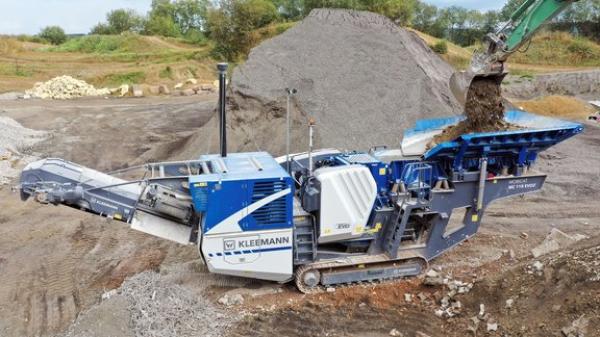

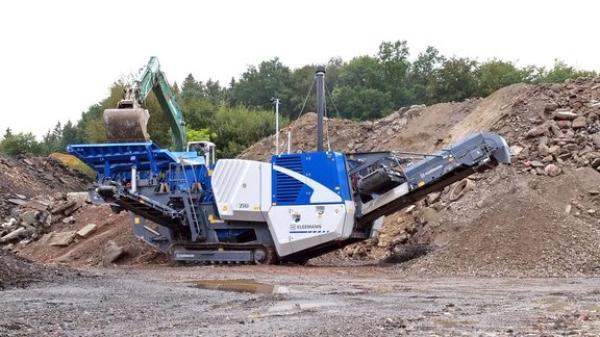

The jaw crusher MOBICAT MC 110 EVO2 is used for the precrushing of almost all natural rock and in recycling. Compact dimensions, efficient prescreening, simple operation via SPECTIVE as well as impressive production output characterize the efficient key player.
-
Continuous Feed System (CFS) for optimal crusher feeding
-
Innovative crusher unblocking system for extremely short downtimes
-
Innovative overload and control systems for protection of the crusher
-
Independently vibrating double-deck prescreen
-
Efficient and powerful D-DRIVE diesel-direct drive
-
Simple and intuitive SPECTIVE control concept
Models
Continuous Feed System (CFS)
Uniform loading is indispensable for a good product, optimum throughput and low wear.
To ensure that the crushing chamber is always evenly filled, the Continuous Feed System (CFS) monitors the crusher level (jaw crusher and cone crusher) or the load at the rocker and rotor as well as the motor utilization (impact crusher).
Independently of this, the CFS regulates the frequency of the vibrating feeder and prescreen. A backlog on the prescreen is thus avoided and crusher utilization is optimized. When the crushing chamber is free again after overloading, material transport is continued without a delay.
The CFS facilitates the work of the operator because the machine automatically guarantees a homogeneous material flow, thus ensuring optimum loading of the crusher.
SPECTIVE CONNECT
All relevant data at a glance
> Dashboard
> Camera live image
> Reporting
> Messages and troubleshooting aids
> Overview of all plants in the train
The operator can remain in the excavator/wheel loader
> No interruption to the work process
> Increase in work safety
Innovative diesel-direct electric drive concept - impressive performance with the best possible consumption values
The crushers of the EVO line have an innovative "diesel-direct electric" drive concept and are powerful and economical at the same time.
An efficient and powerful diesel engine drives the crusher directly via a fluid coupling. The drive technology thus impresses with extremely low efficiency losses and maximum output directly at the crusher.
All secondary drives – for example, for prescreen, vibrating chutes and conveyor belts – are driven electrically. The fluid coupling guarantees high operational safety – for operator and machine.
Intuitive control concept SPECTIVE - for simple operation
The easy-to-operate control concept SPECTIVE allows the machines to be operated at a touch panel. All components and functions can be controlled comfortably from the ground.
SPECTIVE guides the operator step by step through the starting procedure. The start screen provides a graphical view of the plant with all adjustable functions at a glance. When the desired function is selected, clear instructions guide users through all operating steps. If a fault occurs, a fault diagnosis appears on the display. Fault localization, the description and remedy tips result in reduced downtimes. The 12" touch panel is resistant to dust and always easy to read thanks to the light intensity and high contrast. It reacts to fingers, pen or gloves.
Specifications
- CRUSHER - Crusher capacity: 215 hp
- CRUSHER - Crusher drive type: direct
- CRUSHER - Crusher gap adjustment: Fully hydraulic
- CRUSHER - Crusher inlet width: 44 in
- CRUSHER - Crusher weight (approx.): 37,500 lbs
- CRUSHER - Gap width max.: 7 in
- CRUSHER - Gap width min.: 1.2 in
- CRUSHER - Single toggle jaw crusher type: STR110-070
- CRUSHER DISCHARGE CONVEYOR - Crusher discharge conveyor length: 31 ft 2 in
- CRUSHER DISCHARGE CONVEYOR - Discharge height approx.: 10 ft 4 in
- CRUSHER DISCHARGE CONVEYOR - Discharge height, extended, approx.: 12 ft 4 in
- CRUSHER DISCHARGE CONVEYOR - Length, extended: 36 ft 1 in
- CRUSHER DISCHARGE CONVEYOR - Width: 40 in
- CRUSHING CAPACITY - Crushing capacity with CSS = 2.4" up to approx.: 143 US t/hr
- CRUSHING CAPACITY - Crushing capacity with CSS = 3.9" up to approx.: 231 US t/hr
- FEEDING UNIT - Feed height: 12 ft 10 in
- FEEDING UNIT - Feed height with extension: 14 ft 1 in
- FEEDING UNIT - Hopper length: 11 ft 1 in
- FEEDING UNIT - Hopper length with extension: 11 ft 6 in
- FEEDING UNIT - Hopper volume: 5.8 yd³
- FEEDING UNIT - Hopper volume with extension: 10 yd³
- FEEDING UNIT - Hopper width: 6 ft 9 in
- FEEDING UNIT - Hopper width with extension: 9 ft 1 in
- FEEDING UNIT - Max. feed size: 39 in x 25 in x 15 in
- POWER SUPPLY UNIT - Drive concept: D-DRIVE (Diesel-direct)
- POWER SUPPLY UNIT - Generator: 88 kVA
- POWER SUPPLY UNIT - Power pack manufacturer: Scania
- POWER SUPPLY UNIT - Power supply unit output: 322 hp - 326 hp
- POWER SUPPLY UNIT - Rated speed: 1,500 rpm
- PRIMARY SCREENING - Type: Double-deck heavy-piece screen
- PRIMARY SCREENING - Width x length: 3 ft 4 in x 6 ft 1 in
- SIDE DISCHARGE CONVEYOR - Discharge height: 6 ft 9 in
- SIDE DISCHARGE CONVEYOR - Discharge height, extended: 9 ft 8 in
- SIDE DISCHARGE CONVEYOR - Length: 8 ft 10 in
- SIDE DISCHARGE CONVEYOR - Length, extended: 16 ft 5 in
- SIDE DISCHARGE CONVEYOR - Width: 20 in
- TRANSPORT - Transport height approx. (standard value): 11 ft 2 in
- TRANSPORT - Transport length approx.: 49 ft 3 in
- TRANSPORT - Transport weight max. configuration approx.: 106,950 lbs
- TRANSPORT - Transport weight of basic plant: 93,750 lbs
- TRANSPORT - Transport width approx.: 9 ft 10 in
- VIBRATING FEEDER - Width x length: 40 in x 8 ft 6 in
