Kleemann MC 100i EVO
| Make | Kleemann |
| Model | MC 100i EVO |
| Type | Mobicat |
How can we help?
Description
Properties

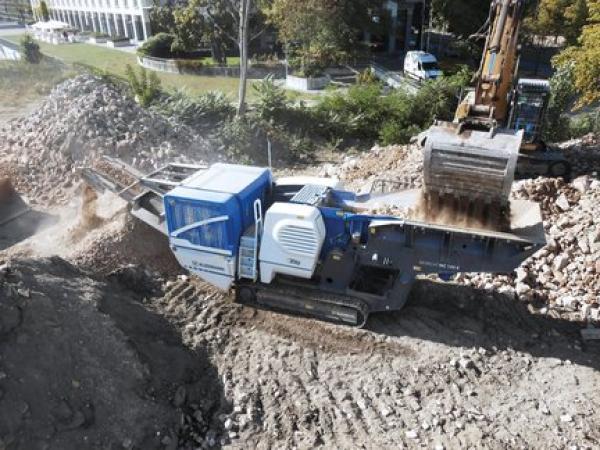

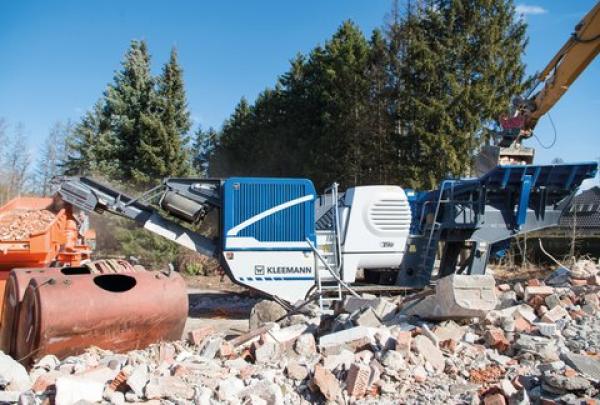

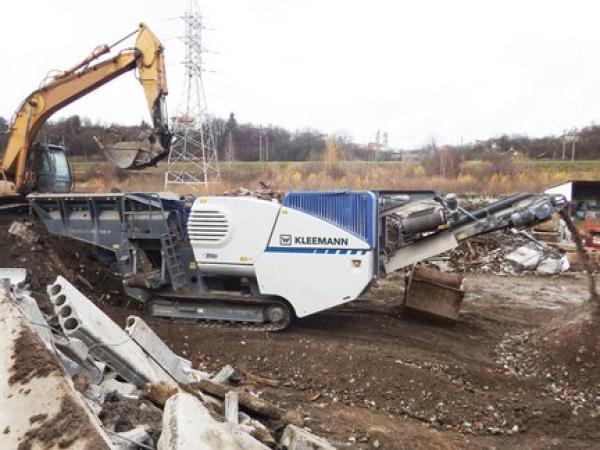

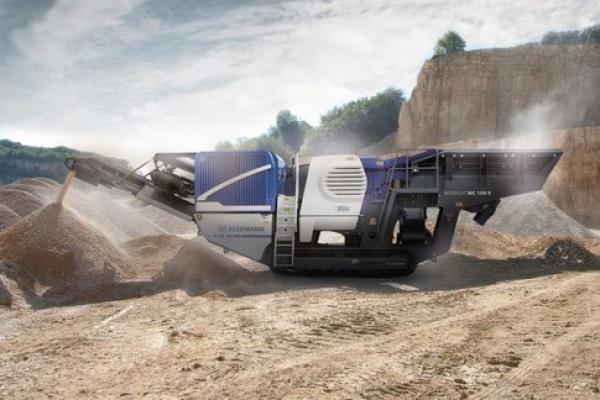

The smallest mobile jaw crusher of the EVO line impresses with its compactness and reliability. It can be used for a huge variety of materials, offering wide-ranging possibilities for both demolition companies and contract crushers. Thanks to the diesel direct drive, the MC 100i EVO is economical in consumption.
-
Continuous Feed System (CFS) for optimal crusher feeding
-
Innovative crusher unblocking system for extremely short downtimes
-
Efficient and powerful D-DRIVE diesel direct drive
-
Easy control via menu-guided touch panel
Models
Effective prescreening - better results and less wear
For effective prescreening of the feed material, the crushing plants are equipped with an independently vibrating double-deck prescreen. Wear in the crushing chamber is thus reduced by diverting the medium grain directly onto the vibrating extractor. The screen surfaces in the upper and lower deck can be changed easily and safely.
Jaw crusher
Jaw crushers operate according to the principle of pressure crushing. The crushed material is crushed in the wedge-shaped pit between the fixed crusher jaw and the crusher jaw articulated on an eccentric shaft. The material is crushed by the elliptic course of movement and falls down due to gravity. This occurs until the material is smaller than the set crushing gap.
Innovative diesel-direct electric drive concept - impressive performance with the best possible consumption values
The crushers of the EVO line have an innovative "diesel-direct electric" drive concept and are powerful and economical at the same time.
An efficient and powerful diesel engine drives the crusher directly via a fluid coupling. The drive technology thus impresses with extremely low efficiency losses and maximum output directly at the crusher.
All secondary drives – for example, for prescreen, vibrating chutes and conveyor belts – are driven electrically. The fluid coupling guarantees high operational safety – for operator and machine.
Continuous Feed System (CFS)
Uniform loading is indispensable for a good product, optimum throughput and low wear.
To ensure that the crushing chamber is always evenly filled, the Continuous Feed System (CFS) monitors the crusher level (jaw crusher and cone crusher) or the load at the rocker and rotor as well as the motor utilization (impact crusher).
Independently of this, the CFS regulates the frequency of the vibrating feeder and prescreen. A backlog on the prescreen is thus avoided and crusher utilization is optimized. When the crushing chamber is free again after overloading, material transport is continued without a delay.
The CFS facilitates the work of the operator because the machine automatically guarantees a homogeneous material flow, thus ensuring optimum loading of the crusher.
Specifications
- CRUSHER - Crusher capacity: 215 hp
- CRUSHER - Crusher drive type: direct
- CRUSHER - Crusher gap adjustment: Fully hydraulic
- CRUSHER - Crusher inlet width: 37 in
- CRUSHER - Crusher weight (approx.): 26,455 lbs
- CRUSHER - Gap width max.: 5 in
- CRUSHER - Gap width min.: 1 in
- CRUSHER - Single toggle jaw crusher type: STR95-055
- CRUSHER DISCHARGE CONVEYOR - Crusher discharge conveyor length: 28 ft 3 in
- CRUSHER DISCHARGE CONVEYOR - Discharge height approx.: 10 ft 0 in
- CRUSHER DISCHARGE CONVEYOR - Discharge height, extended, approx.: 12 ft 0 in
- CRUSHER DISCHARGE CONVEYOR - Length, extended: 33 ft 2 in
- CRUSHER DISCHARGE CONVEYOR - Width: 40 in
- CRUSHING CAPACITY - Crushing capacity with CSS = 2.4" up to approx.: 116 US t/hr
- CRUSHING CAPACITY - Crushing capacity with CSS = 3.3" up to approx.: 165 US t/hr
- FEEDING UNIT - Feed height: 10 ft 6 in
- FEEDING UNIT - Feed height with extension: 12 ft 2 in
- FEEDING UNIT - Hopper length: 9 ft 10 in
- FEEDING UNIT - Hopper length with extension: 9 ft 2 in
- FEEDING UNIT - Hopper volume: 4.2 yd³
- FEEDING UNIT - Hopper volume with extension: 9.3 yd³
- FEEDING UNIT - Hopper width: 6 ft 3 in
- FEEDING UNIT - Hopper width with extension: 10 ft 2 in
- FEEDING UNIT - Max. feed size: 34 in x 21 in x 13 in
- POWER SUPPLY UNIT - Drive concept: D-DRIVE (Diesel-direct)
- POWER SUPPLY UNIT - Generator: 85 kVA
- POWER SUPPLY UNIT - Power pack manufacturer: Deutz
- POWER SUPPLY UNIT - Power supply unit output: 208 hp
- POWER SUPPLY UNIT - Rated speed: 1,500 rpm
- SIDE DISCHARGE CONVEYOR - Discharge height: 6 ft 11 in
- SIDE DISCHARGE CONVEYOR - Discharge height, extended: 9 ft 10 in
- SIDE DISCHARGE CONVEYOR - Length: 8 ft 10 in
- SIDE DISCHARGE CONVEYOR - Length, extended: 16 ft 5 in
- SIDE DISCHARGE CONVEYOR - Width: 20 in
- TRANSPORT - Transport height approx. (standard value): 10 ft 6 in
- TRANSPORT - Transport length approx.: 42 ft 6 in
- TRANSPORT - Transport weight max. configuration approx.: 83,850 lbs
- TRANSPORT - Transport weight of basic plant: 67,500 lbs
- TRANSPORT - Transport width approx.: 9 ft 10 in
- VIBRATING FEEDER - Width x length: 35 in x 12 ft 11 in
