SPECTIVE CONNECT

All relevant data at a glance
> Dashboard
> Camera live image
> Reporting
> Messages and troubleshooting aids
> Overview of all plants in the train

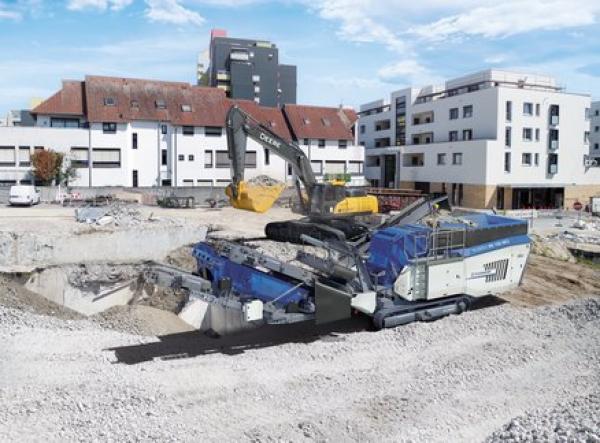

The operator can remain in the excavator/wheel loader
> No interruption to the work process
> Increase in work safety

Continuous Feed System (CFS)

Uniform loading is indispensable for a good product, optimum throughput and low wear.

To ensure that the crushing chamber is always evenly filled, the Continuous Feed System (CFS) monitors the crusher level (jaw crusher and cone crusher) or the load at the rocker and rotor as well as the motor utilization (impact crusher).

Independently of this, the CFS regulates the frequency of the vibrating feeder and prescreen. A backlog on the prescreen is thus avoided and crusher utilization is optimized. When the crushing chamber is free again after overloading, material transport is continued without a delay.

The CFS facilitates the work of the operator because the machine automatically guarantees a homogeneous material flow, thus ensuring optimum loading of the crusher.

Always in operation with "Quick Track"

In some applications – for example in road construction – relocation of the crushing plant several times a day is necessary. When this is done, the plant should remain in operating mode so that it is quickly ready for operation again after it has been moved. The "Quick Track" option allows this to be controlled conveniently via the remote control – without leaving the operating mode.

Thanks to the time-saving (excavator driver does not need to go to the display, change operating mode, machine operation is not interrupted and therefore does not need to be started up again), the machine can continue working fast and productively.

Specifications

• CRUSHER - Crusher drive type: electric
• CRUSHER - Crusher inlet (W x H): 40 in x 30 in
• CRUSHER - Crusher inlet width: 40 in
• CRUSHER - Crusher weight (approx.): 17,700 lbs
• CRUSHER - Impact crusher type: SHB100-075
• CRUSHER - Rotor diameter: 39 in
• CRUSHER - Type of impact toggle adjustment: stepless, fully hydraulic
• CRUSHER DISCHARGE CONVEYOR - Discharge height approx.: 11 ft
• CRUSHER DISCHARGE CONVEYOR - Width: 40 in
• FEEDING UNIT - Feed height: 10 ft 6 in
• FEEDING UNIT - Hopper length: 7 ft 7 in
• FEEDING UNIT - Hopper volume: 4.3 yd³
• FEEDING UNIT - Hopper width: 6 ft 7 in
• FEEDING UNIT - Max. feed size: 20 in x 32 in x 12 in
• POST SCREENING UNIT - Discharge height, fine grain discharge conveyor, approx.: 9 ft 4 in
• POST SCREENING UNIT - Return conveyor length: 24 ft 3 in
• POST SCREENING UNIT - Return conveyor width: 20 ft
• POST SCREENING UNIT - Type: Vibrating single-deck screen
• POST SCREENING UNIT - Width x length approx.: 4 ft 5 in x 10 ft 2 in
• POWER SUPPLY UNIT - Drive concept: E-DRIVE (Diesel-electric)
• POWER SUPPLY UNIT - Generator: 260 kVA
• POWER SUPPLY UNIT - Power pack manufacturer: John Deere
• POWER SUPPLY UNIT - Power supply unit output: 268 hp
• POWER SUPPLY UNIT - Rated speed: 1,500 rpm
• PRIMARY SCREENING - Width x length: 5 ft 6 in
• SIDE DISCHARGE CONVEYOR - Discharge height: 7 ft 10 in
• SIDE DISCHARGE CONVEYOR - Length: 12 ft 10 in
• SIDE DISCHARGE CONVEYOR - Width: 20 in
• TRANSPORT - Transport height approx. (standard value): 10 ft 6 in
• TRANSPORT - Transport length approx.: 41 ft 11 in
• TRANSPORT - Transport weight max. configuration approx.: 82,800 lbs
• TRANSPORT - Transport weight of basic plant: 65,100 lbs
• TRANSPORT - Transport weight of screening unit approx.: 12,130 lbs
• TRANSPORT - Transport width approx.: 8 ft 4 in
• TRANSPORT - Transport width with secondary screening unit max.: 9 ft 8 in
• VIBRATING FEEDER - Width x length: 33 in x 6 ft 7 in
