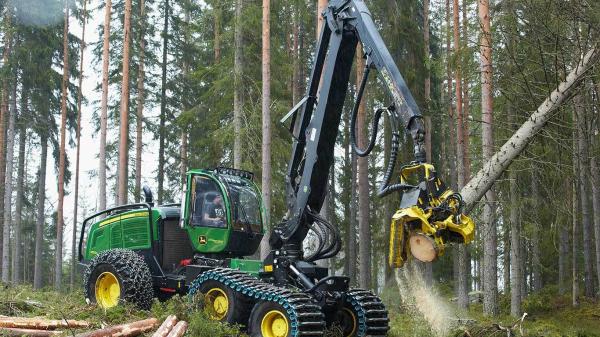

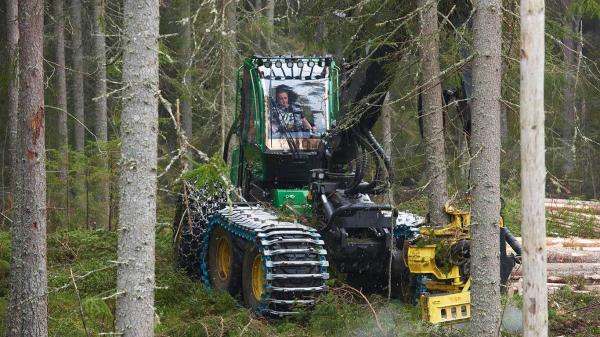

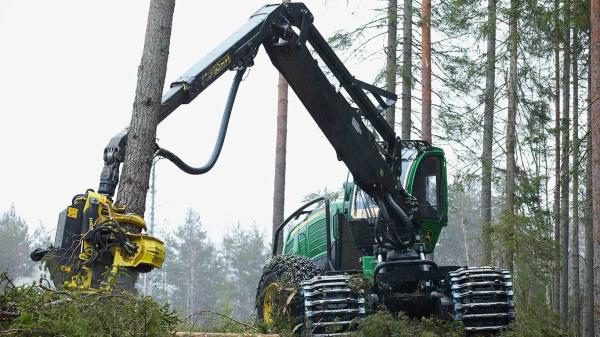

John Deere 1470G Wheeled Harvester
| Make | John Deere |
| Model | 1470G |
| Type | Wheeled Harvesters |
How can we help?
Description
- Work pump: 210 plus 180 cm3 (13 plus 11 cu. in.)
- Boom reach: 8.6 m (28.2 ft.) / 10 m (32.8 ft.) / 11.0 m (36.1 ft.)
- Engine power: 200 kW (268 hp) at 1,900 rpm
Specifications
- CAPACITIES - Delimbing Diameter, mm (inches): 680 (26.8)
- CAPACITIES - Delimbing Feed Force, kN (lbf): 30 (6744)
- CAPACITIES - Delimbing Feed Rate, m/sec (ft/sec): 5.3 (17.4)
- CAPACITIES - Felling Diameter, mm (inches): 710 (28)
- CAPACITIES - Fuel Tank, ltr (gallons (US)): 450 (119)
- CAPACITIES - Hydraulic Tank, ltr (gallons (US)): 300 (79)
- CAPACITIES - Number Of Alternators: 1
- CAPACITIES - Pump Capacity, cm� (Inches�): 190 (12)
- CAPACITIES - Reference Harvesting Head: H480C
- CAPACITIES - System Voltage, V: 24
- CAPACITIES - Travel Speed, kph (mph): 21 (13)
- DESCRIPTION - Crane Model: CH9
- DIMENSIONS - Base Carrier Length, mm (inches): 7944 (312.72)
- DIMENSIONS - Ground Clearance, mm (inches): 754 (29.7)
- DIMENSIONS - Horizontal Reach, m (ft/in): 8.6 (28 ft 2 in)
- DIMENSIONS - Overall Width, mm (inches): 2990 (117.72)
- DIMENSIONS - Transport Height, mm (inches): 3910 (153.84)
- DIMENSIONS - Wheelbase, mm (inches): 4270 (168.12)
- DRIVELINE - Drive Configuration: 8 x 8
- DRIVELINE - Emission Rating: Tier 3
- DRIVELINE - Engine Manufacturer : John Deere
- DRIVELINE - Engine Model: 6090HTJ
- DRIVELINE - Engine Output, kW (hp): 190 (255)
- DRIVELINE - Engine Torque, Nm (lbf / ft): 1250 (922)
- DRIVELINE - Rated Speed, rpm: 1900
- DRIVELINE - Std tire size front: 26.5
- DRIVELINE - Std tire size rear: 26.5
- DRIVELINE - Transmission Type: Hydrostatic-Mechanical
- WEIGHTS - Operating Weight, kg (lbs): 24250 (53462)
- WEIGHTS - Weight - With Reference Head, kg (lbs): 24250 (53462)
- WEIGHTS - Weight - Without Reference Head, kg (lbs): 23010 (50728)
Features
- Work Pump: 210 plus 180 cm³ (13 plus 11 cu. in.)
- Engine Power: 200 kW (268 hp) at 1,900 rpm
- Tractive Force: 200 kN (44,960 lb.)
- Boom Reach: 8.6 m (28.2 ft.) / 10 m (32.8 ft.) / 11.0 m (36.1 ft.)
