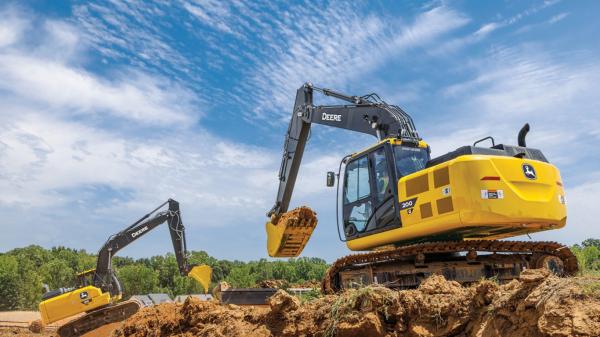

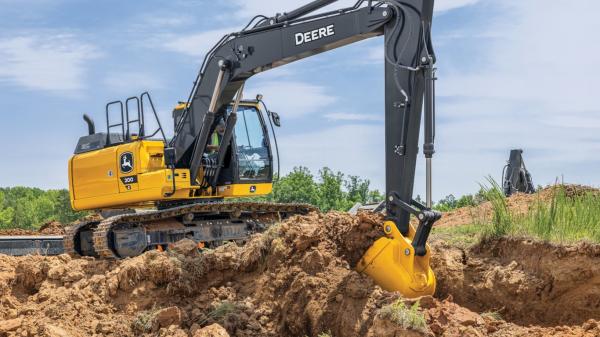

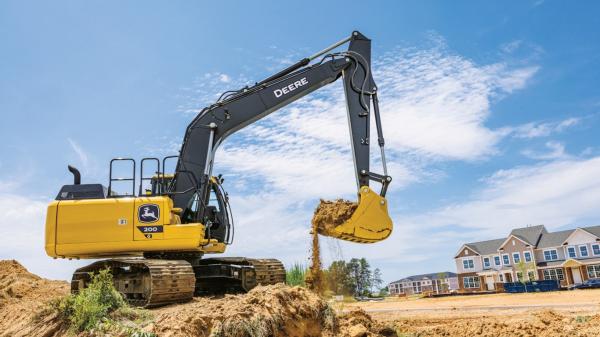

John Deere 200 G-Tier Mid-Size Excavator
| Make | John Deere |
| Model | 200 G-Tier |
| Type | Mid-Size Excavators |
How can we help?
Description
- Net Power: 109 kW (146 hp)
- Max. Digging Depth: 7.07 m (23 ft. 2 in.)
- Operating Weight: 20 507 kg (45,170 lb.)
Models
Quickly Change Attachments with Integrated Hydraulic Coupler Ready Option
Hydraulic coupler ready option
Overview
Factory installed hydraulic plumbing all the way to the end of the arm. Coupler controls integrated into a switch in the cab. Quick and efficient coupler installation. Popular in the underground segment, couplers allow excavators to efficiently switch attachments and get more productive working hours each day.
- Ease of installation – pin on the coupler, connect the hydraulics, get to work.
- Compatible with multiple coupler manufacturers (see dealer for details).
Addition Details:
Coupler control switch on left side pilot tower
Coupler control switch
Improved Front Joint Durability
Central lubrication at arm tip
Two-piece front pipe clamping
Internal view of central lubrication grease path
Overview
P-Tier updates build on the proven G-Series design. Take front joint durability to new levels compared to G-Series.
- Grease point at arm tip for easy greasing and extended uptime.
- Better torque retention at the clamp reduces the likelihood of front hydraulic pipes moving.
- Redesigned boom foot bushings improve durability.
Specifications
- CAPACITIES - Fuel Tank, ltr (gallons (US)): 285 (75.3)
- CAPACITIES - Hydraulic Tank, ltr (gallons (US)): 125 (33)
- DIMENSIONS - Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in): 6870 (22 ft 6 in)
- DIMENSIONS - Dig Depth - Mono Boom, mm (ft/in): 7070 (23 ft 2 in)
- DIMENSIONS - Dig Height - Mono Boom, mm (ft/in): 9790 (32 ft 1 in)
- DIMENSIONS - Digging Reach - Mono Boom, mm (ft/in): 9940 (32 ft 7 in)
- DIMENSIONS - Dump Height - Mono Boom, mm (ft/in): 6930 (22 ft 9 in)
- DIMENSIONS - Ground Clearance, mm (inches): 450 (18)
- DIMENSIONS - Ground Level Reach - Mono Boom, mm (ft/in): 9790 (32 ft 1 in)
- DIMENSIONS - Overall Undercarriage Length, mm (ft/in): 4170 (13 ft 8 in)
- DIMENSIONS - Overall Undercarriage Width, mm (ft/in): 3000 (9 ft 10 in)
- DIMENSIONS - Tailswing Radius, mm (ft/in): 2550 (8 ft 4 in)
- DIMENSIONS - Track Gauge, mm (ft/in): 2200 (7 ft 3 in)
- DIMENSIONS - Track Length On Ground, mm (ft/in): 3370 (11 ft 1 in)
- DIMENSIONS - Transport Height - Maximum, mm (ft/in): 3390 (11 ft 1 in)
- DIMENSIONS - Transport Length Mono Boom, mm (ft/in): 9040 (29 ft 8 in)
- DIMENSIONS - Width over fixed tracks, mm (ft/in): 3000 (9 ft 10 in)
- DRIVELINE - Displacement, ltr (Inches³): 4.5 (275)
- DRIVELINE - Emission Rating: Tier 4 / Stage IV
- DRIVELINE - Engine Manufacturer: John Deere Power Tech
- DRIVELINE - Engine Output - Net, kW (hp): 109 (146)
- DRIVELINE - Number Of Carrier Rollers - Each Side: 2
- DRIVELINE - Number Of Cylinders: 4
- DRIVELINE - Number Of Track Rollers - Each Side: 7
- DRIVELINE - Rated speed, rpm: 2000
- DRIVELINE - Track Shoe Width, mm (inches): 800 (32)
- PERFORMANCE - Arm Tearout, kN (lbf): 83.7 (18825)
- PERFORMANCE - Boost Pressure, bar (PSI): 380 (5511)
- PERFORMANCE - Bucket Breakout, kN (lbf): 127 (28552)
- PERFORMANCE - Bucket Pressure, bar (PSI): 343 (4980)
- PERFORMANCE - End lift - 7.5m Reach, kg (lbs): 4370 (9420)
- PERFORMANCE - Gradeability, %: 70
- PERFORMANCE - Ground Bearing Pressure, kPa (PSI): 32 (4.64)
- PERFORMANCE - Side lift - 7.5m Reach, kg (lbs): 2830 (6110)
- PERFORMANCE - Swing Speed, rpm: 12.8
- PERFORMANCE - Swing Torque, kNm (lbf / ft): 50 (36765)
- PERFORMANCE - Total Flow, lt/min (gallons (US) / min): 382 (100)
- PERFORMANCE - Tractive Force, kN (lbf): 169 (38030)
- PERFORMANCE - Travel Speed - High, kph (mph): 5.3 (3.3)
- WEIGHTS - Operating Weight, kg (lbs): 20507 (45170)
