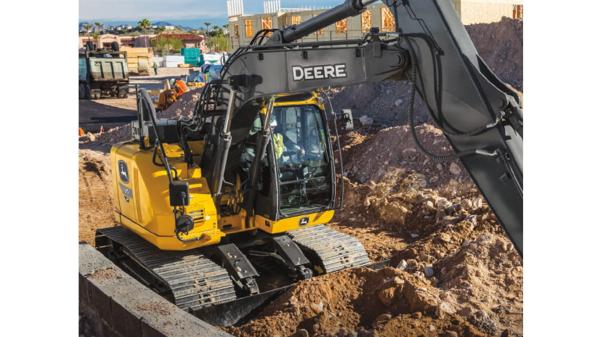

John Deere 135 P-Tier Mid-Size Excavator
| Make | John Deere |
| Model | 135 P-Tier |
| Type | Mid-Size Excavators |
How can we help?
Description
- Net Power: 75 kW (101 hp)
- Max. Digging Depth: 5.98 m (20 ft. 0 in.)
- Operating Weight: 14 300–15 400 kg (31,526–33,951 lb.)
Models

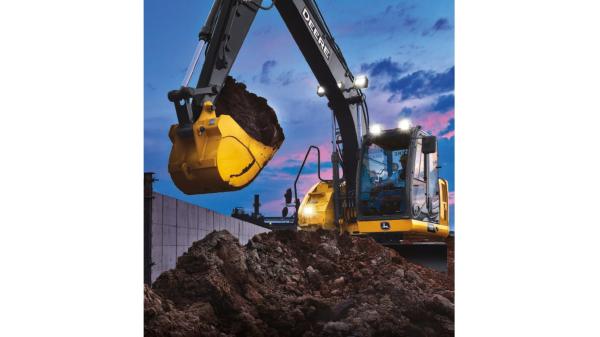

Work Confidently via Optional Cameras and Lighting
Right, Rear, and Left Cameras with additional LED Surround Lighting
Overview
Optional Right Rear and Left Camera system with additional light-emitting diode (LED) surround lighting work together to provide the operator enhanced 270 degree visibility around the machine. All integrated into the main monitor.
Benefits
- Work confidently with enhanced visibility even in low light conditions
- Powerful LEDs cast a pool of light surrounding 270 degrees of the sides and rear of the machine. Cameras display surroundings to the operator in the main monitor
- LED front work lights and rear camera are still standard equipment
No Diesel Particulate Filter (DPF), No Problem
Final Tier 4 (FT4)/ EU Stage IV aftertreatment without the use of DPF
Overview
Zero ash-service intervals. Zero regenerations. Extremely efficient combustion allows Isuzu® engines to burn particulate matter in cylinder during combustion. Diesel exhaust fluid is injected into the exhaust stream and through Selective Catalytic Reduction (SCR), emissions standards are achieved.
Benefits
- Proven, integrated, simple engine meets EPA Final Tier 4 (FT4)/ EU Stage IV standards
- 75.3 kW (101 net peak horsepower)
- Ground level diesel exhaust fluid (DEF) fill
Isuzu is a trademark of Isuzu Motors Limited Corporation.
Standard Auxiliary Hydraulics
Auxiliary hydraulic lines
Overview
Factory installed auxiliary hydraulic lines enable your excavator to run a number of attachments and increase the versatility of your machine, without the need for additional machines or operators.
Benefits
- Standard auxiliary proportional control in the right pilot control lever
- Toggle between attachments and adjust flow and pressure based on attachment requirements right in the monitor

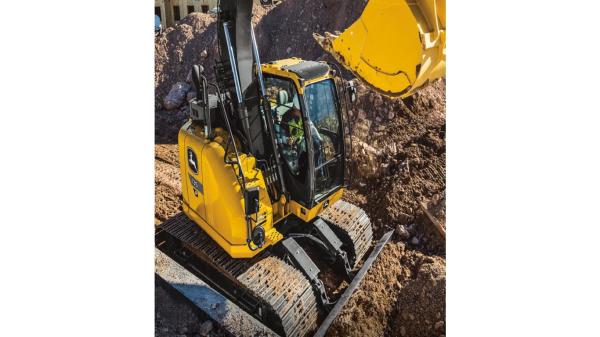

Exceptional Performance in Tight Spaces
135 P-tier excavator
Overview
Take digging forces to new levels with power boost when you need it. A well-balanced, smooth operating machine in a reduced tailswing configuration.
Benefits
- Use power boost with the push of a button to get through tough material
- Pilot controlled hydraulics provide smooth function and feel for operators
- Optional backfill blade provides added stability and improved productivity when backfilling
- Maneuverable reduced tailswing eases the risk of damage to surroundings or the machine
Specifications
- CAPACITIES - Fuel Tank, ltr (gallons (US)): 220 (58)
- CAPACITIES - Hydraulic Tank, ltr (gallons (US)): 60 (15.9)
- DIMENSIONS - Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in): 5790 (19 ft )
- DIMENSIONS - Dig Depth - Mono Boom, mm (ft/in): 5980 (19 ft 8 in)
- DIMENSIONS - Dig Height - Mono Boom, mm (ft/in): 9690 (31 ft 10 in)
- DIMENSIONS - Digging Reach - Mono Boom, mm (ft/in): 8860 (29 ft )
- DIMENSIONS - Dozer Blade Height, mm (inches): 460 (18)
- DIMENSIONS - Dozer Blade Width, mm (ft/in): 2490 (8 ft 2 in)
- DIMENSIONS - Dump Height - Mono Boom, mm (ft/in): 7220 (23 ft 8 in)
- DIMENSIONS - Ground Clearance, mm (inches): 410 (16)
- DIMENSIONS - Ground Level Reach - Mono Boom, mm (ft/in): 8720 (28 ft 8 in)
- DIMENSIONS - Overall Undercarriage Length, mm (ft/in): 3580 (11 ft 9 in)
- DIMENSIONS - Overall Undercarriage Width, mm (ft/in): 2590 (8 ft 6 in)
- DIMENSIONS - Tailswing Radius, mm (ft/in): 1490 (4 ft 11 in)
- DIMENSIONS - Track Gauge, mm (ft/in): 1990 (6 ft 6 in)
- DIMENSIONS - Track Length On Ground, mm (ft/in): 2880 (9 ft 5 in)
- DIMENSIONS - Transport Height - Maximum, mm (ft/in): 2870 (9 ft 5 in)
- DIMENSIONS - Transport Length Mono Boom, mm (ft/in): 7390 (24 ft 3 in)
- DIMENSIONS - Width over fixed tracks, mm (ft/in): 2590 (8 ft 6 in)
- DRIVELINE - Displacement, ltr (Inches³): 3 (182)
- DRIVELINE - Emission Rating: Tier 4 / Stage IV
- DRIVELINE - Engine Manufacturer: Isuzu
- DRIVELINE - Engine Output - Net, kW (hp): 75 (101)
- DRIVELINE - Number Of Carrier Rollers - Each Side: 1
- DRIVELINE - Number Of Cylinders: 4
- DRIVELINE - Number Of Track Rollers - Each Side: 7
- DRIVELINE - Rated speed, rpm: 2000
- DRIVELINE - Track Shoe Width, mm (inches): 600 (24)
- PERFORMANCE - Arm Tearout, kN (lbf): 61 (13710)
- PERFORMANCE - Boost Pressure, bar (PSI): 363 (5265)
- PERFORMANCE - Bucket Breakout, kN (lbf): 104 (23380)
- PERFORMANCE - Bucket Pressure, bar (PSI): 343 (4975)
- PERFORMANCE - Gradeability, %: 70
- PERFORMANCE - Ground Bearing Pressure, kPa (PSI): 39 (5.66)
- PERFORMANCE - Swing Speed, rpm: 13.3
- PERFORMANCE - Swing Torque, kNm (lbf / ft): 34 (25000)
- PERFORMANCE - Total Flow, lt/min (gallons (US) / min): 210 (56)
- PERFORMANCE - Tractive Force, kN (lbf): 110 (24729)
- PERFORMANCE - Travel Speed - High, kph (mph): 5.5 (3.4)
- WEIGHTS - Operating Weight, kg (lbs): 15100 (33290)
