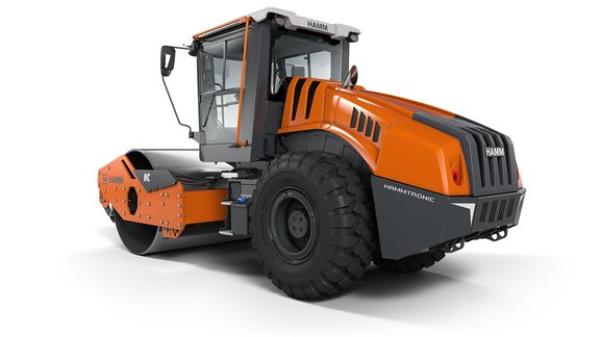

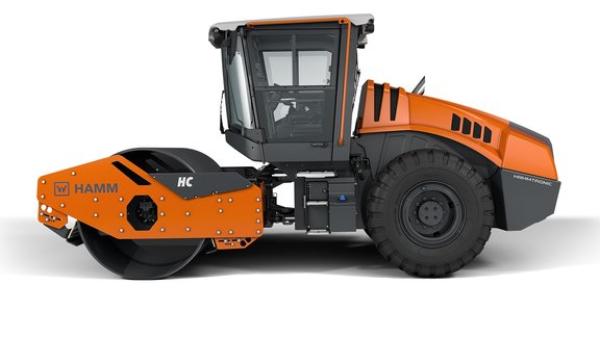

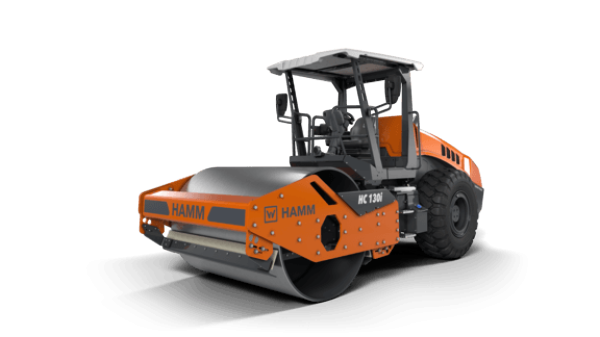

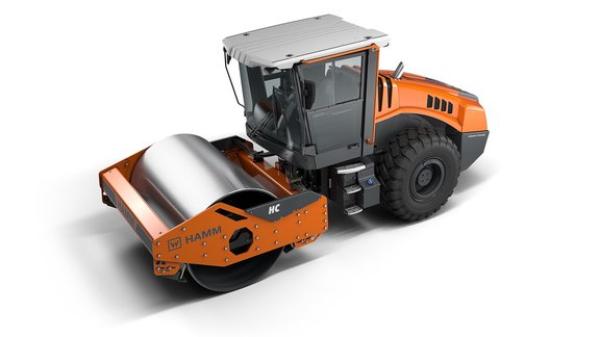

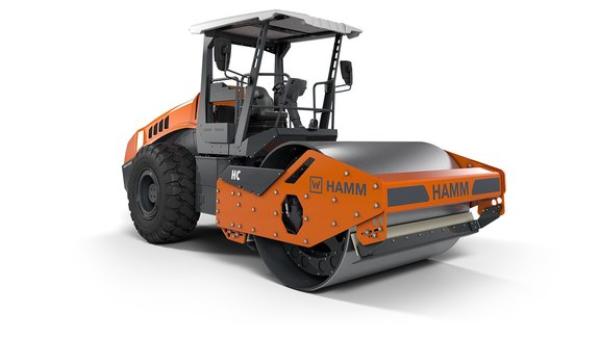

Hamm HC 130i C P

Hamm
Hamm
Hamm
Hamm
Hamm
Hamm
Hamm
Make Hamm
Model HC 130i C P
Type Series HC

How can we help?


Description

  • High compaction performance
  • Digital ready
  • Customised configuration possibilities and a wide range of options
  • Hammtronic for high comfort, safety and reduced emissions
  • Spacious driver's platform with Easy Drive operating concept

Models

Easy Drive

Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardized operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tire rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.

HAMMTRONIC

HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.

Smart Compaction

In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation. The focus here is on digital interfaces between the driver and the machine as well as various assistants. The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.

Three-point articulation

Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

Specifications

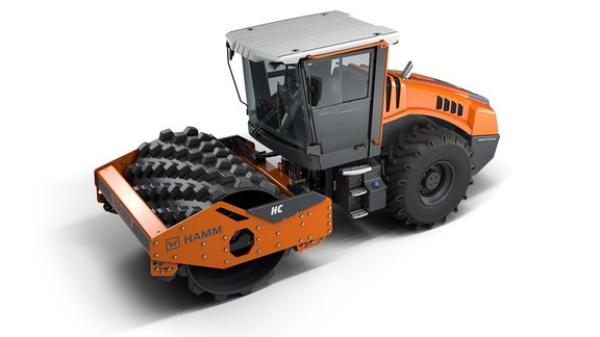

  • BASIC DATA - Description: Compactor with padfoot drum
  • BASIC DATA - Exhaust emissions category: EU Stage V / EPA Tier 4
  • BASIC DATA - Name: HC 130i C P
  • BASIC DATA - Series: H254
  • DIESEL ENGINE - Cylinders, quantity: 4
  • DIESEL ENGINE - Exhaust emission standard: EU Stage V / EPA Tier 4
  • DIESEL ENGINE - Exhaust gas after-treatment: DOC-DPF-SCR
  • DIESEL ENGINE - Manufacturer: JOHN DEERE
  • DIESEL ENGINE - Model: JDPS 4045PSS
  • DIESEL ENGINE - Power ISO 14396, HP: 162.6 HP
  • DIESEL ENGINE - Power ISO 14396, kW: 119.6 kW
  • DIESEL ENGINE - Power ISO 14396, rpm: 2,000 rpm
  • DIESEL ENGINE - Power SAE J1349, HP: 160.4 hp
  • DIESEL ENGINE - Power SAE J1349, kW: 119.6 kW
  • DIESEL ENGINE - Power SAE J1349, rpm: 2,000 rpm
  • DRUM DIMENSIONS - Drum diameter, front: 67.2 in
  • DRUM DIMENSIONS - Drum thickness, front: 0.8 in
  • DRUM DIMENSIONS - Drum type, front: Padfoot
  • DRUM DIMENSIONS - Drum width, front: 84.3 in
  • DRUM DIMENSIONS - Height of the padfeet: 4.4 in
  • DRUM DIMENSIONS - Padfeet, quantity: 130
  • MACHINE DIMENSIONS - Center distance: 128.6 in
  • MACHINE DIMENSIONS - Ground clearance, center: 18.1 in
  • MACHINE DIMENSIONS - Maximum working width: 84.3 in
  • MACHINE DIMENSIONS - Slope angle, front: 33.7 °
  • MACHINE DIMENSIONS - Slope angle, rear: 23.7 °
  • MACHINE DIMENSIONS - Total height with cab: 120.2 in
  • MACHINE DIMENSIONS - Total height with ROPS: 120.2 in
  • MACHINE DIMENSIONS - Total length: 240.8 in
  • MACHINE DIMENSIONS - Total width with cab: 97.4 in
  • MACHINE DIMENSIONS - Turning radius, inside: 162.6 in
  • SOUND LEVEL - Sound power level L(WA), guaranteed: 106
  • STEERING - Steering, type: Articulated steering
  • TANK CAPACITY/FILLING CAPACITY - Fuel tank, capacity: 74 gal
  • TIRE DIMENSIONS - Number of tires, rear: 2
  • TIRE DIMENSIONS - Tire size, rear: TR 23.1/18-26 12 PR
  • TIRE DIMENSIONS - Width over tires, rear: 84.8 in
  • TRAVEL DRIVE - Climbing ability, without vibration: 66 %
  • TRAVEL DRIVE - Regulation, infinitely variable: HAMMTRONIC
  • TRAVEL DRIVE - Speed, infinitely variable: 0,0 - 7,5
  • VIBRATION - Amplitude, front, I: 0.075 in
  • VIBRATION - Amplitude, front, II: 0.041 in
  • VIBRATION - Centrifugal force, front, I: 65,250 lbs
  • VIBRATION - Centrifugal force, front, II: 49,500 lbs
  • VIBRATION - Vibration frequency, front, I: 1,800 VPM
  • VIBRATION - Vibration frequency, front, II: 2,160 VPM
  • WEIGHTS - Axle load, front: 17,364 lbs
  • WEIGHTS - Axle load, rear: 12,370 lbs
  • WEIGHTS - Empty weight without cab, without ROPS: 27,585 lbs
  • WEIGHTS - Operating weight with cab: 29,734 lbs
  • WEIGHTS - Operating weight with ROPS: 29,183 lbs
  • WEIGHTS - Static linear load, front: 206.1 lbs/in

Links

Copy Set

Easy Drive

Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardized operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tire rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.

HAMMTRONIC

HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.

Smart Compaction

In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation. The focus here is on digital interfaces between the driver and the machine as well as various assistants. The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.

Three-point articulation

Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
