Hamm HC 70i P
| Make | Hamm |
| Model | HC 70i P |
| Type | Series HC CompactLine |
How can we help?
Description
-
3-point articulation for excellent traction and cross-country mobility
-
Excellent view of machine and construction site
-
Compact dimensions
-
High climbing ability
-
Simple, intuitive and language-neutral control
Models
Smart Compaction
In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation. The focus here is on digital interfaces between the driver and the machine as well as various assistants. The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.
Three-point articulation
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
Specifications

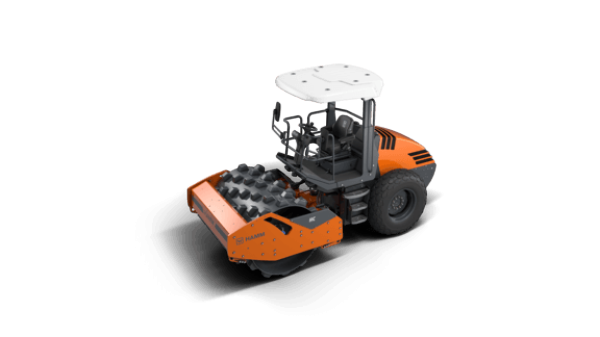

- BASIC DATA - Description: Compactor with padfoot drum
- BASIC DATA - Exhaust emissions category: EU Stage V / EPA Tier 4
- BASIC DATA - Name: HC 70i P
- BASIC DATA - Series: HC CompactLine
- DIESEL ENGINE - Cylinders, quantity: 4
- DIESEL ENGINE - Exhaust emission standard: EU Stage V / EPA Tier 4
- DIESEL ENGINE - Exhaust gas after-treatment: DOC-DPF
- DIESEL ENGINE - Manufacturer: KUBOTA
- DIESEL ENGINE - Model: V3307-CR-TE5AB
- DIESEL ENGINE - Power ISO 14396, HP: 74.3 HP
- DIESEL ENGINE - Power ISO 14396, kW: 54.6 kW
- DIESEL ENGINE - Power ISO 14396, rpm: 2,200 rpm
- DIESEL ENGINE - Power SAE J1995, HP: 74.2 hp
- DIESEL ENGINE - Power SAE J1995, kW: 55.4 kW
- DIESEL ENGINE - Power SAE J1995, rpm: 2,200 rpm
- DRUM DIMENSIONS - Drum diameter, front: 53.7 in
- DRUM DIMENSIONS - Drum thickness, front: 0.6 in
- DRUM DIMENSIONS - Drum type, front: Padfoot
- DRUM DIMENSIONS - Drum width, front: 66.1 in
- DRUM DIMENSIONS - Height of the padfeet: 3.2 in
- DRUM DIMENSIONS - Padfeet, quantity: 84
- MACHINE DIMENSIONS - Center distance: 92 in
- MACHINE DIMENSIONS - Ground clearance, center: 12.7 in
- MACHINE DIMENSIONS - Maximum working width: 66.1 in
- MACHINE DIMENSIONS - Slope angle, front: 38 °
- MACHINE DIMENSIONS - Slope angle, rear: 41 °
- MACHINE DIMENSIONS - Total height with cab: 113.7 in
- MACHINE DIMENSIONS - Total height with ROPS: 113.3 in
- MACHINE DIMENSIONS - Total length: 174.8 in
- MACHINE DIMENSIONS - Total width with cab: 79.4 in
- MACHINE DIMENSIONS - Turning radius, inside: 130.3 in
- SOUND LEVEL - Sound power level L(WA), guaranteed: 105
- STEERING - Steering, type: Articulated steering
- TANK CAPACITY/FILLING CAPACITY - Fuel tank, capacity: 32.5 gal
- TIRE DIMENSIONS - Number of tires, rear: 2
- TIRE DIMENSIONS - Tire size, rear: TR 14.9-24 8 PR
- TIRE DIMENSIONS - Width over tires, rear: 65.6 in
- TRAVEL DRIVE - Climbing ability, without vibration: 60 %
- TRAVEL DRIVE - Speed, transport gear: 0,0-5,8
- TRAVEL DRIVE - Speed, working gear, I: 0,0-3,7
- VIBRATION - Amplitude, front: 0.074 in
- VIBRATION - Centrifugal force, front: 28,125 lbs
- VIBRATION - Vibration frequency, front: 1,800 VPM
- WEIGHTS - Axle load, front: 8,897 lbs
- WEIGHTS - Axle load, rear: 6,218 lbs
- WEIGHTS - Empty weight without cab, without ROPS: 13,903 lbs
- WEIGHTS - Operating weight with cab: 15,115 lbs
- WEIGHTS - Operating weight with ROPS: 14,597 lbs
