John Deere Rakes, Tillers, and Cold Planers
| Make | John Deere |
| Model | Rakes, Tillers, and Cold Planers |
| Type | Worksite Pro Construction Attachments |
How can we help?
Description
About Our Power Rakes
Power rakes are perfect for landscape tasks such as seedbed preparation, rock raking, site development, and more.

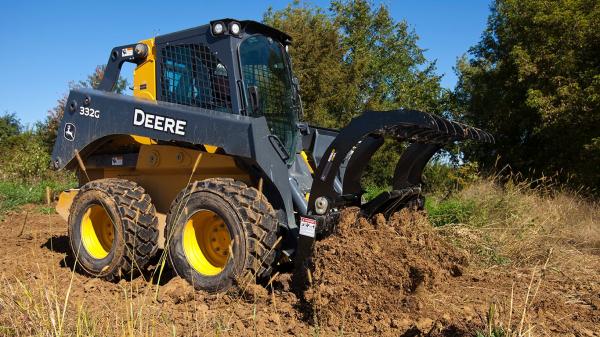

About Our Root Rakes
Root rakes are designed specifically for land clearing, ground leveling, and moving materials away from buildings and obstructions. Large tine spacing allows gathering of rocks and debris while leaving the soil behind.

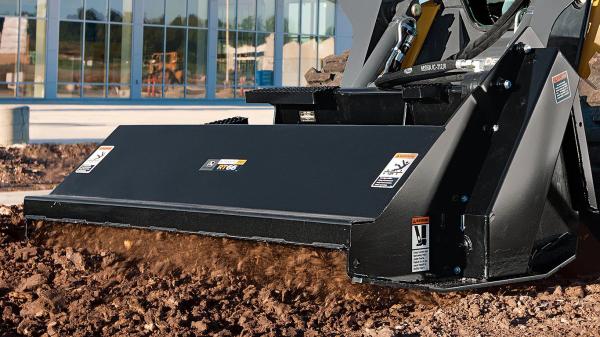

About Our Tillers
Tillers require only standard hydraulic flow for high quality performance. For increased efficiency, till in both forward and reverse directions.
About Our Cold Planers
Cold planers are ideal for street repairs, leveling uneven pavement, cutting drainage in parking lots, and cleaning around larger milling machines.
Models
Root Rakes
| Model | Overall Width | Time Spacing | Weight |
|---|---|---|---|
|
RR72 Root Rake |
72 in. (1830 mm) |
9.5 in. (240 mm) |
1,095 lb. (497 kg) |
|
RR78 Root Rake |
78 in. (1980 mm) |
10 in. (255 mm) |
1,150 lb. (522 kg) |
|
RR84 Root Rake |
84 in. (2135 mm) |
8.5 in. (215 mm) |
1,220 lb. (553 kg) |
Rotary Tillers
| Model | Tilling Width | Number of Tines | Operating Weight |
|---|---|---|---|
|
RT52 Tiller |
52 in. (1.3 m) |
24 |
750 lb. (340 kg) |
|
RT66 Tiller |
66 in. (1.7 m) |
32 |
1,000 lb. (454 kg) |
Power Rakes
| Model | Raking Width | Length | Weight | Min. Hydraulic Flow |
|---|---|---|---|---|
|
PR60 Power Rake |
62 in. (1575 mm) |
59 in. (1499 mm) |
938 lb. (425 kg) |
49 L/min. (13 gpm) |
|
PR72B Power Rake |
938 lb. (425 kg) |
64 in. (1625 mm) |
925 lb. (419 kg) |
49 L/min. (13 gpm) |
|
PR84B Power Rake |
84 in. (2134 mm) |
64 in. (1625 mm) |
1,050 lb. (476 kg) |
60 L/min. (16 gpm) |
|
PR96B Power Rake |
90 in. (2438 mm) |
76 in. (1930 mm) |
1,320 lb. (598 kg) |
60 L/min. (16 gpm) |
Features
- Quik-Tatch: With our universal, self-cleaning Quik-Tatch easy-attachment system, you can switch from one type of attachment to another in no time flat.
Links
- Rotary Tillers Brochure
- Full Attachment Brochure
- Compact Construction Equipment Guide
- Root Rake Brochure
- Power Rakes Brochure
