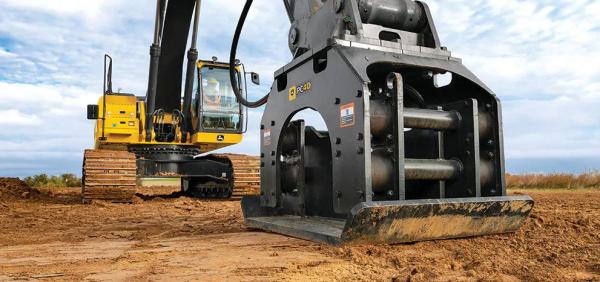

John Deere Plate Compactors
| Make | John Deere |
| Model | Plate Compactors |
| Type | Worksite Pro Construction Attachments |
How can we help?
Description
When your work takes you into the trenches, onto steep slopes, or within tight spaces, a rugged John Deere Plate Compactor can help you navigate and dominate. Excavator arm-mounted attachment disperses more powerful compaction forces than manually operated compactors — from the comfort of the cab and without extra crew members — for purpose-built productivity in a heavy-duty package.
Models
Plate Compactors for Compact Equipment
| MODEL | IMPULSE FORCE | CYCLES/MINUTE | BASE PLATE DIMENSIONS | FLOW RANGE |
|---|---|---|---|---|
|
PC4 Plate Compactor |
17.8 kN (4,000 lbf) |
2,000 rpm |
330 x 635 mm (12 x 25 in.) |
34-53 l/min (9-14 gpm) |
|
PC7 Plate Compactor |
28.5 kN (6,400 lbf) |
2,000 rpm |
460 x 700 mm (18 x 27.5 in.) |
57-76 l/min (15-20 gpm) |
|
PC10 Plate Compactor |
35.6 kN (8,000 lbf) |
2,000 rpm |
610 x 710 mm (24 x 28 in.) |
76-91 l/min (20-24 gpm) |
Plate Compactors for Mid-Sized & Large Excavators
| MODEL | IMPULSE FORCE | CYCLES/MINUTE | BASE PLATE DIMENSIONS | FLOW RANGE |
|---|---|---|---|---|
|
PC16 Plate Compactor |
17.2 kN (16,000 lbf) |
2,100 cycles/min. |
737 x 813 mm (29 x 32 in.) |
113.6 l/min (30 gpm) |
|
PC23 Plate Compactor |
106.8 kN (24,000 lbf) |
2,100 cycles/min. |
864 x 914 mm (34 x 36 in.) |
177.9 l/min (47 gpm) |
|
PC40 Plate Compactor |
178.0 kN (40,000 lbf) |
2,100 cycles/min. |
1066 x 1219 mm (42 x 48 in.) |
235.0 l/min (62 gpm) |
Features
- Plate Compactors for Compact Equipment: Plate Compactors are designed specifically for trench, slope, and excavation compaction applications.
- Plate Compactors for Mid-Sized & Large Excavators: When your work takes you into the trenches, onto steep slopes, or within tight spaces, a rugged John Deere Plate Compactor can help you navigate and dominate. Excavator arm-mounted attachment disperses more powerful compaction forces than manually operated compactors - from the comfort of the cab and without extra crew members - for purpose-built productivity in a heavy-duty package.
