Description

Specifications

• Displacement: 14.9 l
• Exhaust emissions category: EU Stage IV/US EPA Tier 4f
• Ground clearance: 400 mm
• Lateral inclination, max.: 8 °
• Maximum power: 455 kW / 619 HP
• Operating weight, CE: 30,600 kg
• Working depth: 510 mm
• Working width: 2400 mm

Features

• Cold recycling with WR model series: The WR is equipped with a powerful milling and mixing rotor and state-of-the-art injection systems. The cold recycler mills and granulates the existing asphalt pavement, injects binders and water in precisely metered quantities and mixes all three in a single operation. The new base layers produced in this in-situ process are distinctive for their exceptionally high bearing capacity. The WR is equipped with a powerful milling and mixing rotor and state-of-the-art injection systems. The cold recycler mills and granulates the existing asphalt pavement, injects binders and water in precisely metered quantities and mixes all three in a single operation. The new base layers produced in this in-situ process are distinctive for their exceptionally high bearing capacity.
• Mixing procedures: Cold recycling can be achieved either in-plant by hauling material recovered from an existing road to a central depot where it is fed through a mixing unit, or in-place using a recycling machine. When mixing in-place / in-situ, a cold recycler granulates the existing pavement while mixing in binders and water homogeneously at the same time. When mixing in-plant, reclaimed asphalt pavement and crushed stone are transported to a mixing plant located in the vicinity of the construction site. Cold recycling can be achieved either in-plant by hauling material recovered from an existing road to a central depot where it is fed through a mixing unit, or in-place using a recycling machine. When mixing in-place / in-situ, a cold recycler granulates the existing pavement while mixing in binders and water homogeneously at the same time. When mixing in-plant, reclaimed asphalt pavement and crushed stone are transported to a mixing plant located in the vicinity of the construction site.
• Control technology: WIRTGEN machines are fitted with a machine control system of the highest quality, in which the large proportion of software developed in-house plays the decisive role. WIRTGEN puts a special focus on continuous improvement, which has the added effect of significantly increasing the operational reliability of the machines. In addition, many years of experience in software and hardware development allow for higher and more flexible machine functionality in terms of applications and meeting specific customer requirements. WIRTGEN machines are fitted with a machine control system of the highest quality, in which the large proportion of software developed in-house plays the decisive role. WIRTGEN puts a special focus on continuous improvement, which has the added effect of significantly increasing the operational reliability of the machines. In addition, many years of experience in software and hardware development allow for higher and more flexible machine functionality in terms of applications and meeting specific customer requirements.
• Soil stabilisation with WR model series: Soil stabilization scores top marks in comparison to soil exchange as it requires fewer truck transports, results in shorter construction times, saves resources and reduces CO2 emissions. When operating as a soil stabilizer, the WR uses its powerful milling and mixing rotor to mix pre-spread binders, such as lime or cement, into the existing, insufficiently stable soil at working depths of up to 560 mm to convert it into a construction material of high quality in an in-situ process. The resulting homogeneous soil-binder mixture offers high tensile strength, compressive strength and shear strength values as well as long-term water resistance, frost resistance and volume stability. Soil stabilization scores top marks in comparison to soil exchange as it requires fewer truck transports, results in shorter construction times, saves resources and reduces CO2 emissions. When operating as a soil stabilizer, the WR uses its powerful milling and mixing rotor to mix pre-spread binders, such as lime or cement, into the existing, insufficiently stable soil at working depths of up to 560 mm to convert it into a construction material of high quality in an in-situ process. The resulting homogeneous soil-binder mixture offers high tensile strength, compressive strength and shear strength values as well as long-term water resistance, frost resistance and volume stability.

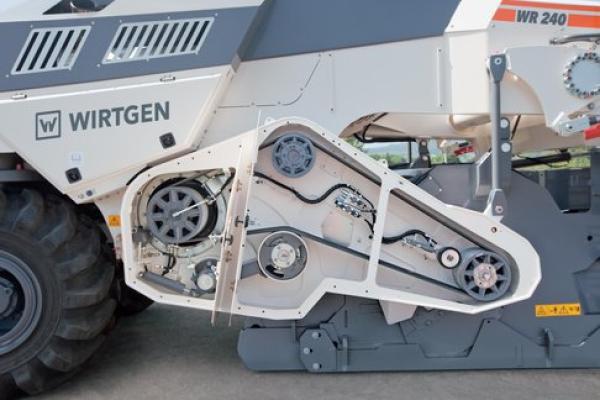

• WIRTGEN cutting technology: Results of high quality are the main goal of every construction project. This applies to road rehabilitation using cold milling machines and cold recyclers as well as to soil stabilization and the extraction of useful minerals using surface miners. Optimum interaction between the milling drum, toolholder and pick is essential for precise, efficient paving removal. WIRTGEN is a market leader in cutting technology and offers customers perfectly matched, high-performance cutting systems. WIRTGEN is also constantly developing its cutting technology components further. Such further developments are largely based on practical experience and feedback from our customers. Results of high quality are the main goal of every construction project. This applies to road rehabilitation using cold milling machines and cold recyclers as well as to soil stabilization and the extraction of useful minerals using surface miners. Optimum interaction between the milling drum, toolholder and pick is essential for precise, efficient paving removal. WIRTGEN is a market leader in cutting technology and offers customers perfectly matched, high-performance cutting systems. WIRTGEN is also constantly developing its cutting technology components further. Such further developments are largely based on practical experience and feedback from our customers.
