Wirtgen W35XRi
| Make | Wirtgen |
| Model | W35XRi |
| Type | Small Milling Machines |
How can we help?
Description
WIRTGEN W35XRi — SMALL COLD MILLING MACHINE
EFFICIENT MILLING AND GRANULATING OF ROAD PAVEMENTS
Asphalt and concrete pavements can be cost-effectively removed with cold milling machines. The range of applications extends from the complete removal of asphalt and concrete to the layer-by-layer removal and levelling of asphalt and concrete surfaces. With WIRTGEN cold milling machines, it is possible to machine working widths from 1 ft 2 in up to 14 ft 5 in and working depths up to 1 ft 2 in in a single pass. In addition, a large number of different milling drums, such as ECO cutters or fine milling drums, ensure that machines can be used with a high degree of flexibility.
COLD MILLING WITH SMALL MILLING MACHINES
Small milling machines are equipped with a wheeled chassis and a milling drum positioned at the rear of the machine. The granulated RAP separated by the rotating milling drum is collected by a slewing discharge belt located at the rear of the machine and immediately conveyed to waiting trucks. That is why small milling machines are also called rear loaders. The compact rear loaders are designed to be operated by a single person. In addition, they are usually extremely maneuverable and have a retractable right rear wheel.
EVERYTHING UNDER CONTROL
With the W 35 XRi small mining machine, operators have complete control. The machine features clearly and ergonomically arrange control instruments, a perfect view of the most important working areas, and additional operator’s platform behind the milling drum, and the intuitive LEVEL PRO PLUS leveling technology is also on board. The W 35 XRi – for stress-free work and increased output.
HIGH-PRECISION, INTUITIVE LEVEL PRO PLUS LEVELING SYSTEM
When milling it’s important to remove the layers of asphalt at the specified depth. WIRTGEN's intuitive LEVEL PRO PLUS leveling technology can be relied on to precisely maintain the specified milling depth.
HIGH-PRECISION LEVELING SYSTEM
The LEVEL PRO PLUS leveling system programmed especially for cold milling machines offers easy and intuitive one-hand operation using the rotary’ knob, and the menu can be configured as desired. LEVEL PRO PLUS stands out clue to its extremely precise milling results. The leveling system is fully integrated into the machine control system, enabling a high degree of automation.
FAST CROSS-SLOPE SENSOR
The fast, electronic RAPID SLOPE cross-slope sensor ensures that the cross-slope profile is extremely precise. The cross-slope sensor makes it possible to work significantly faster while maintaining the same leveling quality.
LASER LEVELING

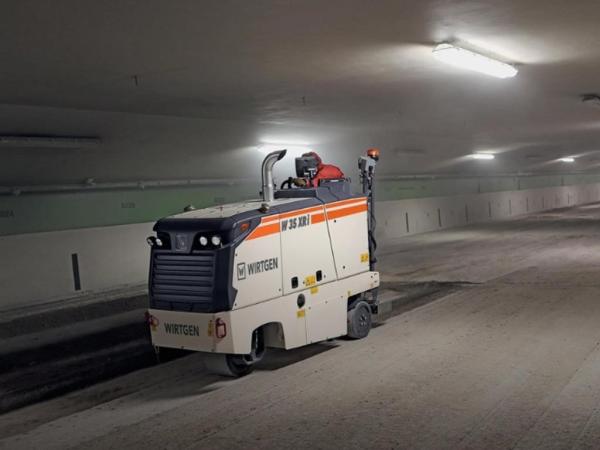

Laser sensors on the machine work in conjunction with a stationary rotating laser that creates a virtual reference surface. The extremely accurate height measurement via laser sensors is suitable, for example, for indoor milling work. Rotating lasers are not included in our delivery range.
SIMPLE, ERGONOMIC OPERATION
The effortless operation of the W 35 XRi is also perfectly integrated into the standardized operating concept of WIRTGEN’s entire range of small milling machines, guaranteeing productive operation right from the start.
VARIABLE OPERATOR’S PLATFORM

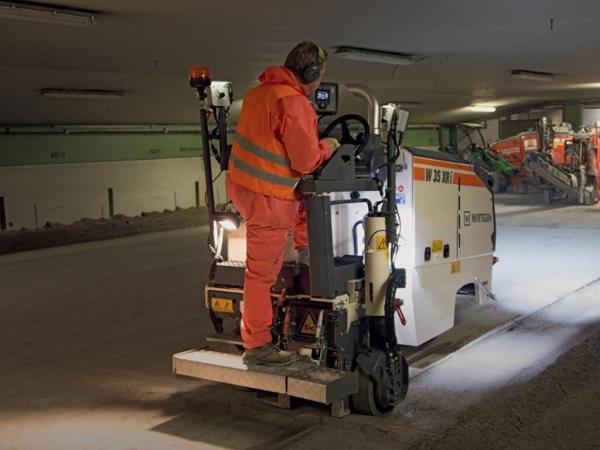

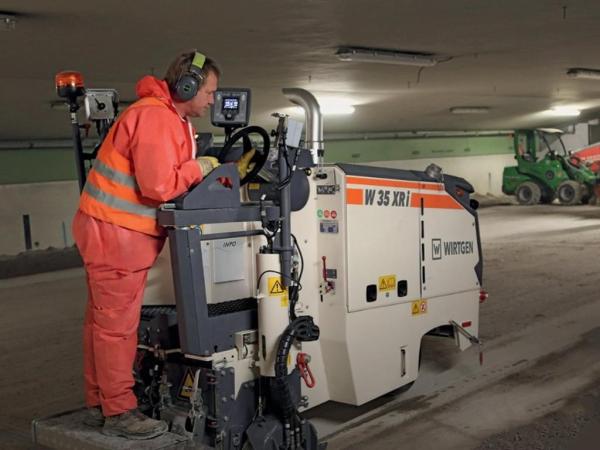

For universal ergonomic operation, the operator can choose to operate the small milling machine from above or from the rear of the machine. The operator can quickly and easily switch to the respective position on the job site.
ERGONOMIC MULTIFUNCTIONAL ARMREST
The individually adjustable armrest with multifunctional joystick guarantees fast, ergonomic operation.
INTUITIVE OPERATING CONECPT
The simple operating concept increases the operator’s performance and thus the productivity of the small milling machine.
UNOBSTRUCTED VIEW
An unobstructed view forward to the milled edge, of the right-hand side plate, and to the rear ensures that the machine be used effectively on the job site in accordance with the on-site requirements.
DISPLAY
The display located in the operator’s field of vision clearly shows important machine parameters.
A HIGHLY MANEUVERABLE AND COMPACT MACHINE
The outstanding maneuverability of the extremely compact W 35 XRi small milling machine means that it can be used to complete a variety of jobs in the narrow sections of a milling site much more quickly and easily.
EXCELLENT MANEUVERABILITY
The large steering angles ensure that the machine can quickly maneuver and turn on the job site. It also features the smallest inside milling radius in its class.
COMPACT MACHINE DIMENSIONS
Thanks to its extremely compact design, the small milling machine can mill in confined spaces, fit through narrow factory’ doors, and is easy to transport.
PRECISE STEERING
The hydraulic steering system features fast yet precise steering. When operated from the operator’s platform at the rear of the machine, the machine can be steered electronically via the steering system built into the multifunctional joystick.
PRECISE STEERING WITH HIGH TRACTION
The W 35 XRi is equipped with sensitive steering system that enables it to mill with maximum precision whenever required - such as around hydrants or drains, for example. In addition, optimal traction ensures that milling operations can be carried out without interruption.
HYDRAULIC ALL-WHEEL DRIVE
The machine’s hydraulic all-wheel drive offers excellent traction in difficult job site situations and during loading.
PRECISE HEIGHT ADJUSTMENT
The electrohydraulic, two-stage height adjustment system allows the operator to set the milling depth precisely.
MEMORY FUNCTION FOR HEIGHT ADJUSTMENT
For fast, convenient height adjustment, it's possible to save up to three different height positions per machine side to memory buttons on the multifunctional armrest.
ELECTRONICALLY CONTROLLED TRAVEL DRIVE
The electronically controlled travel drive with one transport speed and two milling speeds makes fine maneuvering possible when extremely precise milling is required.
FLEXIBILITY FOR DIFFERENT MILLING JOBS
Intelligent milling drum, side plate, and scraper solutions make milling faster, easier, and increase overall quality.
WEAR-RESISTANT HT08 TOOLHOLDER SYSTEM
The HT08 toolholder system stands out thanks to its outstanding wear resistance and long tool life.
RAISABLE SIDE PLATE ON RIGHT SIDE
Side plates on both sides reliably seal the drum housing and enable the milled material to be loaded cleanly. The side plate on the right side can be conveniently raised via foot pedal in order to drive over obstacles (such as a curb).
HIGH-PERFORMANCE, LOAD-DEPENDENT WATER SPRINKLING
Together with the water spray bar, the high-performance, load-dependent water pump reliably cools the picks, binds dust, and ensures that the machine remains productive for extended periods of time. It also in a constant high-water pressure for easy machine cleaning on the job site.
MILLING DRUM HOUSINGS FOR WORKING WIDTHS UP TO 14 IN (350 MM) AND 20 IN (500)
The standard milling drum housing can be fitted with milling drums with a working width of up to 14 in (350 mm), end with milling drums with a working width of up to 20 in (500 mm) at the customer's request. A large number of different original WIRTGEN milling drums and special milling drums are available.
RAPID MILLING DRUM CHANGES
The hinged MCS side panel on the right and intelligent installation tools allow milling drums to be changed in a short period of time.
THREE DIFFERENT MILLING DRUM SPEEDS
Three different milling drum speeds make it possible to achieve unparalleled milling performance in a wide range of applications.
MILLING POWER CONTROL FOR MAXIMUM ADVANCE SPEED
The electronic load limitation regulator that can be activated as required adjusts the advance rate function of the engine load so that the small milling machine always operates at the ideal milling speed.
EFFICIENT LOAD OF MILLED MATERIAL

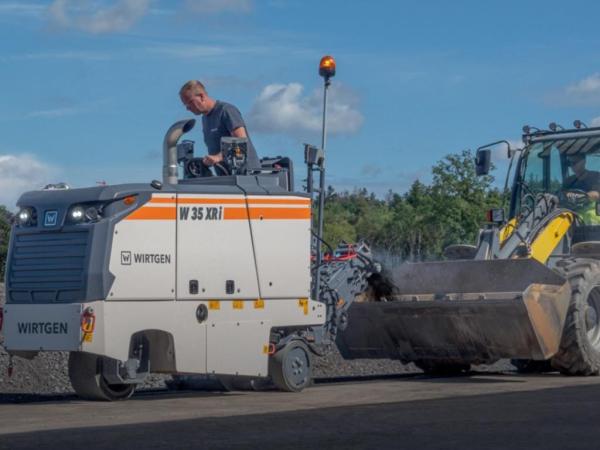

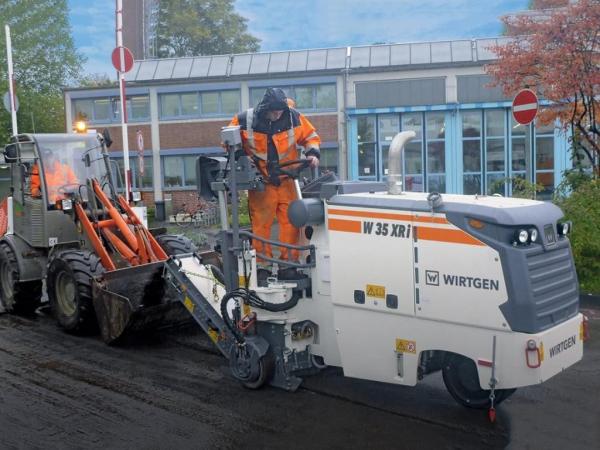

Anyone who has the arduous task of manually removing milled material from the milled surface will immediately appreciate the W 35 XRi rear loader’s height adjustable discharge conveyor that can swing in both directions. It transports the milled material effectively and safely into a wheel loader bucket, for instance.
HEIGHT-ADJUSTABLE DISCHARGE CONVEYOR OR THAT CAN SWING IN BOTH DIRECTIONS

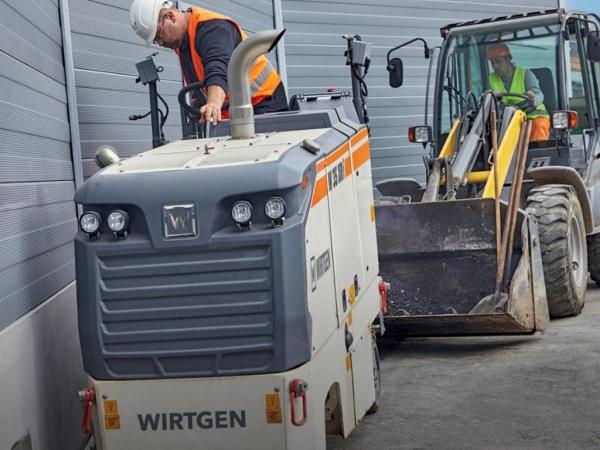

The height-adjustable discharge conveyor that can swing in both directions ensures that the milled material can be easily loaded, even in difficult job site conditions. In this process, the angle can be conveniently adjusted using a cable winch.
HYDRAULICALLY RAISABLE CONVEYOR MOUNTING
The hydraulically raisable conveyor mounting, combined with the hydraulic scraper, not only ensures that the milled material is loaded cleanly, but also makes it possible to load only part of the milled material, if required.
RAPID MOUNTING AND DEMOUNTING OF THE DISCHARGE CONVEYOR
The intelligent design ensures that the charge conveyor can be mounted/demounted quickly by just one person. Thanks to the roller unit, the demounted discharge concept can be moved effortlessly around the job site.
HIGH PRODUCTIVITY WITH LOW ENVIRONMENTAL EMISSIONS
The W 35 XRi equips contractors with sophisticated technology - a key factor in ensuring consistently high operational safety and daily output rates. The machine is even perfect for job sites that only allow minimal exhaust emissions.
HIGH-PERFORMANCE DIESEL ENGINE THAT MEETS US EPA TIER 4f EMISSION STANDARD
The powerful diesel engine with temperature dependent fan speed guarantees quiet, economical operation and high-power reserves for fast milling at any milling depth. The engine also meets the stringent requirements of the US EPA Tier 4f, currently the highest emission standard.
VARIABLE ADDITIONAL WEIGHTS
The wide ballasting range consists of individually removable weight plates up to a total of 3,087 lbs (1,400 kg), increasing the machine’s range of applications.
WITOS FLEETVIEW TELEMATICS SYSTEM
WIRTGEN’s efficient WITOS FleetView telematics system supports fleet management, position and status monitoring, as well as maintenance and diagnostic processes.
LED WORK LIGHTS
The ideal arrangement of the LED work lights ensures that the entire machine environment is brightly illuminated.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
