Description

Specifications

• Displacement: 6,100 cm³
• Exhaust emissions category: EU Stage V/US EPA Tier 4f
• Max. milling speed: 2 km/h
• Max. travel speed: 7,5 km / h
• Maximum power: 160 kW / 218 HP
• Milling depth max.: 300 mm
• Milling width: 1,200 mm
• Operating weight, CE: 15,400 kg

Features

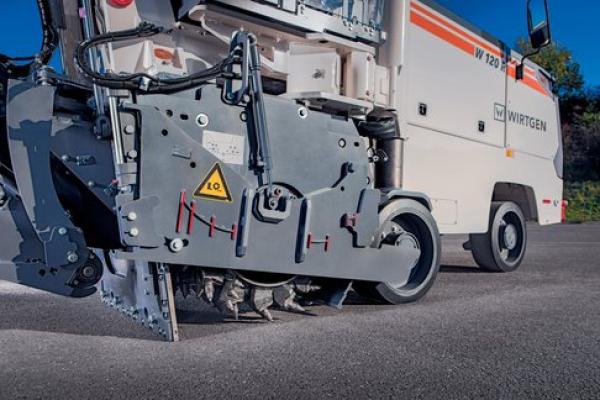

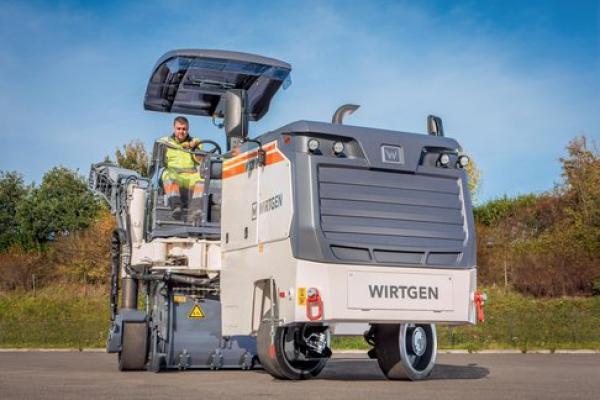

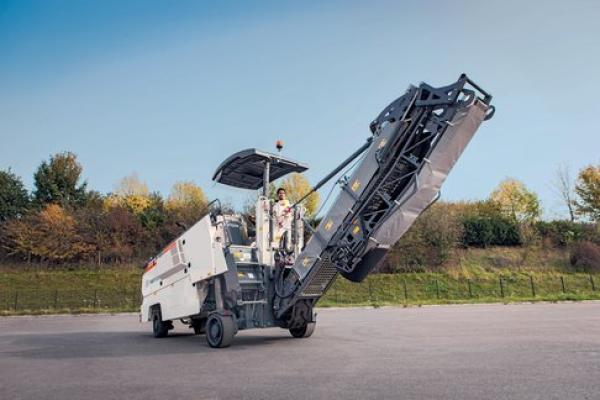

• Cold milling with small milling machines: Small milling machines are equipped with wheel units and a milling drum arranged at the rear of the machine. A slewing conveyor is also arranged at the rear of the machine, accepting the asphalt material granulated by the rotating milling drum and discharging it directly onto waiting trucks. This is why small milling machines are also called rear loaders. The compact rear loaders have been designed for one-man operation. In addition, they are usually extremely manoeuvrable machines, and their right-hand rear wheel can be pivoted in front of the milling drum. Small milling machines are equipped with wheel units and a milling drum arranged at the rear of the machine. A slewing conveyor is also arranged at the rear of the machine, accepting the asphalt material granulated by the rotating milling drum and discharging it directly onto waiting trucks. This is why small milling machines are also called rear loaders. The compact rear loaders have been designed for one-man operation. In addition, they are usually extremely manoeuvrable machines, and their right-hand rear wheel can be pivoted in front of the milling drum.
• WIRTGEN levelling technology: WIRTGEN levelling technology controls height, depth and slope to achieve results of maximum precision. In the process, the system continuously reconciles the actual values with a preselected target value, correcting any deviations by means of proportional control. State-of-the-art machine engineering ensures levelling results of consistently high quality while at the same time relieving the machine operator of a significant part of his workload. WIRTGEN offers customers reliable hardware and software developed in-house. Different systems are used depending on the construction project to be completed and local conditions on site. WIRTGEN levelling technology controls height, depth and slope to achieve results of maximum precision. In the process, the system continuously reconciles the actual values with a preselected target value, correcting any deviations by means of proportional control. State-of-the-art machine engineering ensures levelling results of consistently high quality while at the same time relieving the machine operator of a significant part of his workload. WIRTGEN offers customers reliable hardware and software developed in-house. Different systems are used depending on the construction project to be completed and local conditions on site.

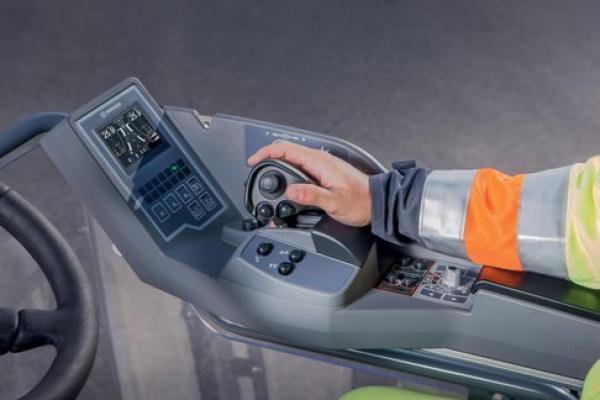

• Control technology: WIRTGEN machines are fitted with a machine control system of the highest quality, in which the large proportion of software developed in-house plays the decisive role. WIRTGEN puts a special focus on continuous improvement, which has the added effect of significantly increasing the operational reliability of the machines. In addition, many years of experience in software and hardware development allow for higher and more flexible machine functionality in terms of applications and meeting specific customer requirements. WIRTGEN machines are fitted with a machine control system of the highest quality, in which the large proportion of software developed in-house plays the decisive role. WIRTGEN puts a special focus on continuous improvement, which has the added effect of significantly increasing the operational reliability of the machines. In addition, many years of experience in software and hardware development allow for higher and more flexible machine functionality in terms of applications and meeting specific customer requirements.

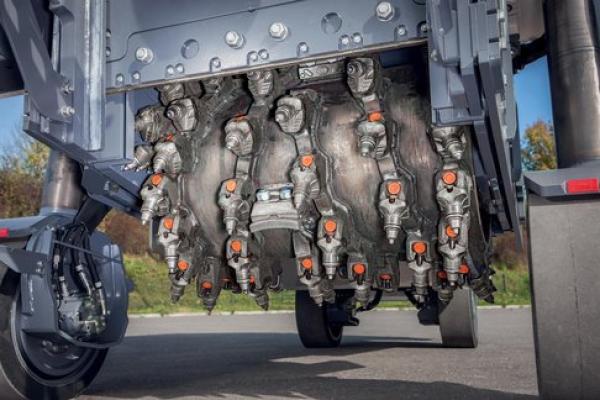

• WIRTGEN cutting technology: Results of high quality are the main goal of every construction project. This applies to road rehabilitation using cold milling machines and cold recyclers as well as to soil stabilization and the extraction of useful minerals using surface miners. Optimum interaction between the milling drum, toolholder and pick is essential for precise, efficient paving removal. WIRTGEN is a market leader in cutting technology and offers customers perfectly matched, high-performance cutting systems. WIRTGEN is also constantly developing its cutting technology components further. Such further developments are largely based on practical experience and feedback from our customers. Results of high quality are the main goal of every construction project. This applies to road rehabilitation using cold milling machines and cold recyclers as well as to soil stabilization and the extraction of useful minerals using surface miners. Optimum interaction between the milling drum, toolholder and pick is essential for precise, efficient paving removal. WIRTGEN is a market leader in cutting technology and offers customers perfectly matched, high-performance cutting systems. WIRTGEN is also constantly developing its cutting technology components further. Such further developments are largely based on practical experience and feedback from our customers.
