Wirtgen W250Fi
| Make | Wirtgen |
| Model | W250Fi |
| Type | Large Milling Machines |
How can we help?
Description

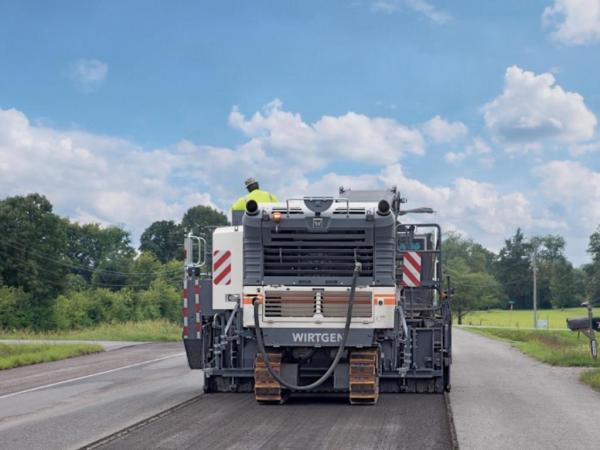

WIRTGEN W250Fi — LARGE COLD MILLING MACHINE
Large milling machines have a milling drum positioned centrally beneath the machine and a two-part front-loading system. Trucks can be loaded quickly and flexibly via the slewing and height-adjustable discharge conveyor. A variety of different milling drums and milling drum assemblies are available to cater to the wide array of milling tasks. They can be exchanged quickly and easily to suit the application. The range of applications extends from wide-scale complete removal down to a depth of 35 cm in a single pass to the rehabilitation of concrete pavements and airport runways as well as fine milling to improve pavement skid resistance.
MAXIMUM PERFORMANCE FOR UNSURPASSED PRODUCTIVITY
• Our most powerful cold milling machine stands out for delivering maximum performance and unsurpassed productivity.
• Rapid milling drum assembly changes and particularly fast milling drum changes for milling widths of 7 ft 3 in (2.2 m), 8 ft 2 in (2.5 m), or 12 ft 6 in (3.8 m) thanks to the MCS (Multiple Cutting System) further expand the machine’s wide range of applications.
• In automatic mode, the innovative MILL ASSIST machine control system always selects the best ratio between performance and costs – in addition, an operating mode can be selected based on cost, performance, or quality.
• The particularly wide front loading conveyor and the high-performance belt drive guarantee maximum material loading capacity.
• The new LEVEL PRO ACTIVE leveling system built directly into the machine control system optimizes precision in height control and machine positioning.
FEATURES
OPERATION
EXCEPTIONAL COMFORT ON THE OPERATOR'S PLATFORM
• Excellent view of important working areas
• High-performance LED lighting
• Generously sized storage space
• Powerful heater for operator's platform
• Variable, vertically adjustable weather canopy
• SMART KEY to save user-specific machine parameters
INTUITIVE MMI - MAN MACHINE INTERFACE
• Flexible control panel concept for maximum machine control
• 2” control panel with favorites buttons
• 5” control panels for leveling
• 7” control panels conveniently display important information
• Heavy-duty, high-quality camera / monitor system with 10” control panel
QUALITY
HIGH-PRECISION, VERSATILE LEVEL PRO ACTIVE LEVELING SYSTEM
• New, easy-to-use LEVEL PRO operating concept
• Numerous additional and automatic functions
• Optimized 3D and laser leveling
• Leveling boom with Sonic-Ski sensor on both sides
• Optimized multiplex system
HIGH RELIABILITY
• Groundbreaking diagnostic concept
• Redundant machine control
• Robust, reliable CAN network
• Reliable vandalism protection
• Time-saving service and maintenance concept
MILLING
ONE-OF-A-KIND CUTTING TECHNOLOGY
• Rapid milling drum changes thanks to MCS BASIC
• Simple milling drum assembly changes
• Optimized protection against milling drum assembly wear
• Extremely wear-resistant HT22 quick-change toolholder system
• New HT22 PLUS toolholder upper part with increased service life
INNOVATIVE MILL ASSIST
• MILL ASSIST automatic mode for maximum cost efficiency
• One-of-a-kind dual engine control for maximum performance and efficiency
• Additional pre-selection of an operating strategy in automatic mode
• Clear pre-selection of constant milling pattern quality
• Innovative efficiency indicator
PERFORMANCE
MAXIMUM MILLING PERFORMANCE
• ACTIVE DUAL POWER Dual engine drive system for a massive power spectrum
• Large scraper lift with high setting depth
• Flexible and powerful loading of milled material
• ACTIVE CONVEYOR for swinging the discharge conveyor relative to the steering angle
INFORMATIVE WPT- WIRTGEN PERFORMANCE TRACKER
• Field-tested WITOS FleetView telematics system
• Optional additional equipment WPT for clear documentation of milling performance
• Automatically generated measurement reports
• Job site tracking via satellite map display
• Documentation of consumables to calculate operating costs
COST-EFFECTIVENESS
REDUCED DIESEL CONSUMPTION
• Unmatched engine control solutions for maximum diesel savings
• Dual feature automatic stop feature
• Maximum performance and cost-effectiveness at low speeds
• Dual fan concept for optimum cooling
ENVIRONMENTALLY FRIENDLY MACHINE TECHNOLOGY
• Maximum exhaust gas purification for low exhaust emissions
• Reduced noise emissions during relocation
• Optimized VCS extraction system
• Start-stop engine function via external control panel
• Efficient water management
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Specifications
- Crawler Units - :
- Crawler Units - Crawler Units Front/Back (L x W x H): 7 ft 3 in x 15 in x 2 ft 7 in (2,200 x 370 x 790 mm)
- Driving Performance - :
- Driving Performance - Maximum Travel and Milling Speed: 0-288.7 ft/min (3.3 mph) (0-88 m/min (5.3 km/h))
- Electrical System - :
- Electrical System - Voltage Supply: 24 V
- Engine - Cooling: Water
- Engine - Displacement: 6.3 gal (24 l)
- Engine - Emission Standards: US EPA Tier 4f
- Engine - Fuel Consumption at Rated Power | during a mixture of jobs site operations: 51.5 gal/h | 20.6 gal/h (195 l/h | 78 l/h)
- Engine - Manufacturer: Cummins
- Engine - Maximum Power at 1,900 rpm: 753 kW / 1,100 HP / 1,024 PS
- Engine - Number of Cylinders: 6 + 6
- Engine - Rated Power at 2,100 rpm: 742 kW / 995 HP / 1,009 PS
- Engine - Type: L9 + X15
- Loading Of The Milled Material - Belt Width of Discharge Conveyor: 3 ft 7 in (1,100 mm)
- Loading Of The Milled Material - Belt Width of Primary Conveyor: 3 ft 7 in (1,100 mm)
- Loading Of The Milled Material - Theoretical Capacity of Discharge Conveyor: 873.7 yd³/h (668 m³/h)
- Milling Drum - Cutting Diameter: 3 ft 9 in (1,140 mm)
- Milling Drum - Milling Depth *1: 0 - 14 in (0 - 350 mm)
- Milling Drum - Milling Width: 7ft 3 in (2,200 mm )
- Milling Drum - NOTE: *1 = The maximum milling depth may deviate from the value indicated due tolerances and wear.
- Operator And Tools - 5 Pick Containers: 276 lbs (125 kg)
- Operator And Tools - Machine Operator: 165 lbs (75 kg)
- Operator And Tools - Vehicle Tool Kit: 66 lbs (30 kg)
- Optional MCS Milling Drums In Lieu Of Standard - Milling Drum MCS BASIC FB2200 HT22 LA15 with 18 standard picks and 180 PKD cutting tools: 331 lbs (150 kg)
- Optional MCS Milling Drums In Lieu Of Standard - Milling Drum MCS BASIC FB2200 HT22 LA15 with 182 Picks: 221 lbs (100 kg)
- Optional MCS Milling Drums In Lieu Of Standard - Milling Drum MCS BASIC FB2500 HT22 LA15 with 196 Picks: 860 lbs (390 kg)
- Optional MCS Milling Drums In Lieu Of Standard - Milling Drum MCS EXTEND FB3500 HT22 LA15 multi-part with 294 picks: 4,453 lbs (2,020 kg)
- Optional MCS Milling Drums In Lieu Of Standard - Milling Drum MCS EXTEND FB3800 HT22 LA15 multi-part with 314 picks: 5,401 lbs (2,450 kg)
- Optional Milling Drum Units In Lieu Of Standard - Milling Drum Assembly MCS BASIC FB2200: 1,433 lbs (650 kg)
- Optional Milling Drum Units In Lieu Of Standard - Milling Drum Assembly MCS BASIC FB2500: 3,638 lbs (3,500 kg)
- Optional Milling Drum Units In Lieu Of Standard - Milling Drum Assembly MCS EXTEND FB3500: 7,716 lbs (3,500 kg)
- Optional Milling Drum Units In Lieu Of Standard - Milling Drum Assembly MCS EXTEND FB3800: 9,921 lbs (4,500 kg)
- Optional Milling Drums In Lieu Of Standard - :
- Optional Milling Drums In Lieu Of Standard - Extension of LEVEL PRO ACTIVE with Four Ultrasonic Sensors For Multiplex Scanning: 176 lbs (80 kg)
- Optional Milling Drums In Lieu Of Standard - Extension of LEVEL PRO ACTIVE with Leveling Booms and a Sonic-Ski sensor: 176 lbs (80 kg)
- Optional Milling Drums In Lieu Of Standard - Extension of LEVEL PRO ACTIVE with Two Ultrasonic Sensors For Multiplex Scanning: 88 lbs (40 kg)
- Optional Milling Drums In Lieu Of Standard - Extension of MCS BASIC with a Hydraulically Opening Side Panel for FB2200/FB2500: 110 lbs (50 kg)
- Optional Milling Drums In Lieu Of Standard - Large Storage Compartment on Rear of Machine for 72 Pick Buckets: 441 lbs (200 kg)
- Optional Milling Drums In Lieu Of Standard - Milling Drum FB2200 HT22 LA18 with 156 Picks: -463 lbs (-210 kg)
- Optional Milling Drums In Lieu Of Standard - Operator's Platform Including a Hight-Quality Comfort Cabin: 1,874 lbs (850 kg
- Optional Milling Drums In Lieu Of Standard - Operator's Platform with Functional Stand-up Seat and Large Storage Compartment: 176 lbs (80 kg)
- Optional Milling Drums In Lieu Of Standard - Operator's Platform with Functional Stand-up Seat, a Large Storage Compartment and Weather Canopy: 1,323 lbs (600 kg)
- Optional Milling Drums In Lieu Of Standard - Two-Piece Additional Weight with a Total Weight of 3,307 lbs (1,500 kg): 3,307 lbs (1,500 kg)
- Optional Milling Drums In Lieu Of Standard - VCS Extraction System: 309 lbs (140 kg)
- Tank Capacities - AdBlue®/DEF : 35.7 gal (135 l)
- Tank Capacities - Fuel: 343.4 gal (1,000)
- Tank Capacities - Hydraulic Oil: 31.7 gal (120 l)
- Tank Capacities - Water: 1,188.8 gal (4,500 l)
- Weight Of Standard Machine - Empty Weight of Machine Excluding Operating Fluid: 86,642 lbs (39,000 kg)
- Weight Of Standard Machine - Maximum Operating Weight (Full Tanks, Full Range of Equipment), in FB2200: 108,027 lbs (49,000 kg)
- Weight Of Standard Machine - NOTE: *2 = Machine weight, half-full tanks, vehicle tool kits, machine operator, excluding optional equipment.
- Weight Of Standard Machine - Operating Weight, CE *2: 93,256 lbs (42,300 kg)
- Weight Of Tank Contents - AdBlue®/DEF (9.2 lbs/gal (1.1 kg/l)): 331 lbs (150 kg)
- Weight Of Tank Contents - Fuel (6.9 lbs/gal (0.83 kg/l)): 2,381 lbs (1,080 kg)
- Weight Of Tank Contents - Water: 9,921 lbs (4,500 kg)
