Wirtgen W207Fi
| Make | Wirtgen |
| Model | W207Fi |
| Type | Large Milling Machines |
How can we help?
Description

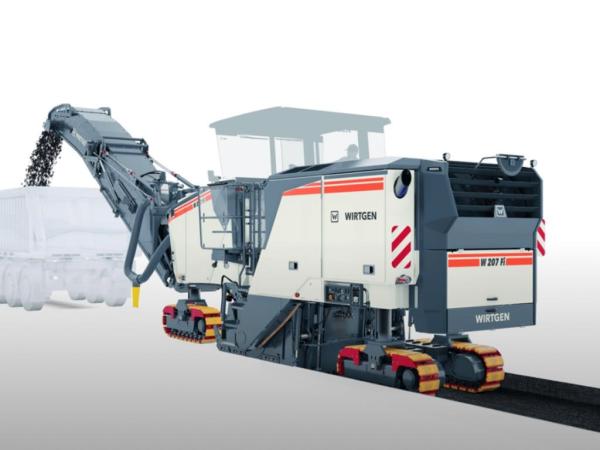

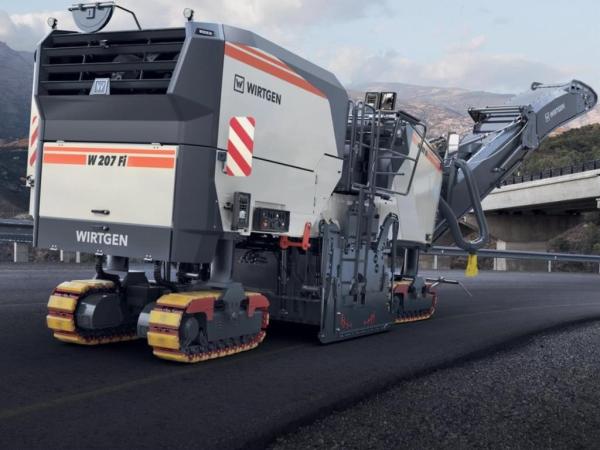

WIRTGEN W207Fi — LARGE COLD MILLING MACHINE
Large milling machines have a milling drum positioned centrally beneath the machine and a two-part front-loading system. Trucks can be loaded quickly and flexibly via the slewing and height-adjustable discharge conveyor. A variety of different milling drums and milling drum assemblies are available to cater to the wide array of milling tasks. They can be exchanged quickly and easily to suit the application. The range of applications extends from wide-scale complete removal down to a depth of 35 cm in a single pass to the rehabilitation of concrete pavements and airport runways as well as fine milling to improve pavement skid resistance.
ROBUST PROFESSIONAL MACHINE WITH EXTENDED PERFORMANCE RANGE
• The easy-to-operate, compact cold milling machine is suitable for a wide range of applications, from surface layer rehabilitation to complete pavement removal and fine milling.
• The innovative MILL ASSIST machine control system enables efficient machine operation in automatic mode, with high output and user-friendly handling.
• Thanks to the LEVEL PRO ACTIVE advanced leveling system, the machine completes milling jobs with maximum precision.

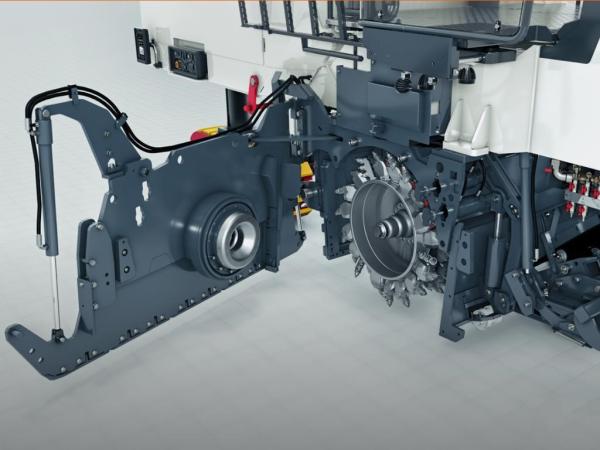

• The innovative MCS BASIC system makes it possible to change milling drums extremely quickly and offers tremendous flexibility in use for greater machine utilization.
• Large track units and maximum conveyor capacity with conveyor swing angles of up to 65° to the left and right ensure high productivity.
FEATURES
OPERATION

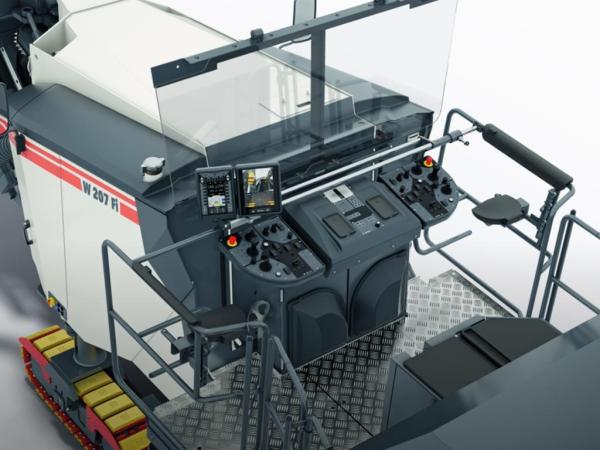

FULLY EQUIPPED OPERATOR’S PLATFORM
• Perfect view of important areas of the operation

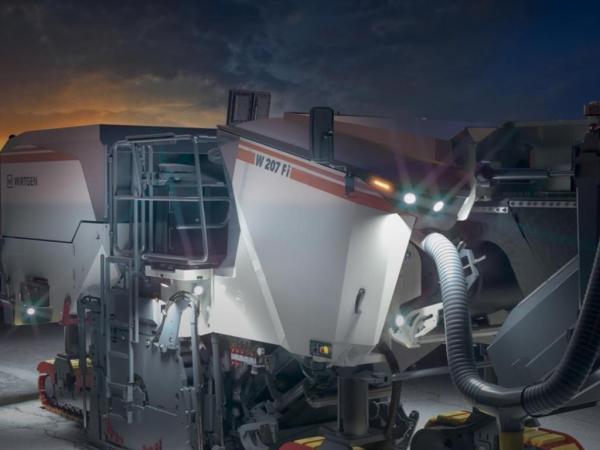

• Exceptionally powerful LED lighting system
• Ample storage space
• Flexible, vertically adjustable weather canopy
INTUITIVE MMI – MAN-MACHINE INTERFACE
• Flexible control panel concept for maximum machine control
• 7” control panel for the convenient display of important parameters
• Robust, high-quality camera system including 10” control panel
QUALITY
VERSATILE, HIGH-PRECISIONLEVEL PRO ACTIVE LEVELING SYSTEM
• New, easy-to-operate LEVEL PRO ACTIVE operating concept
• New complementary and automated features
• Optimized 3D and laser leveling
• Leveling boom, right, or leveling boom, right and left, including Sonic Ski sensor
• Optimized Multiplex system
HIGH RELIABILITY
• Pioneering diagnostic concept
• Redundant machine control system
• Dual CAN network
• Reliable protection against vandalism
• Efficient servicing and maintenance concept
MILLING
UNMATCHED CUTTING TECHNOLOGY

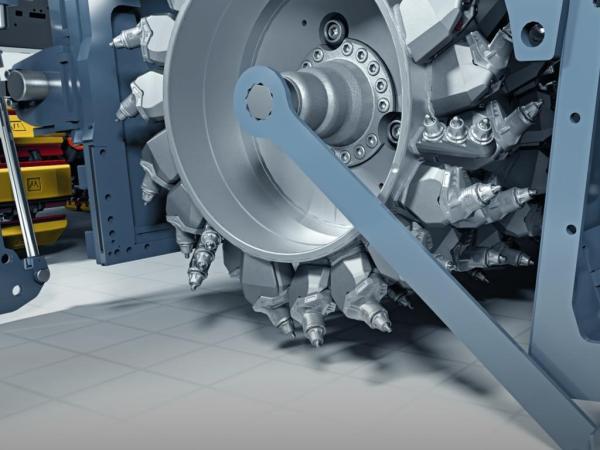

• Easy exchange of milling drums in record time
• Quick exchange of milling drum units
• Optimized wear protection for the milling drum unit
• Extremely hard-wearing quick-change toolholder system HT22
• New upper toolholder part HT22 PLUS with extended lifespan
INNOVATIVE MILL ASSIST
• MILL ASSIST automatic mode
• Additional pre-selection of operating strategy in automatic mode
• Clear pre-selection of consistent quality of the milling pattern
• Innovative efficiency display
PERFORMANCE
MAXIMUM MILLING PERFORMANCE
• High-powered diesel engine
• Increased ballasting flexibility
• Large scraper lift>
• Flexible and efficient material loading
• “Boost” feature to increase the discharge trajectory
INFORMATIVE WPT – WIRTGEN PERFORMANCE TRACKER
• Tried-and-tested WITOS FleetView telematics system with optional WPT feature
• Clear documentation of milling performance
• Automatically generated measurement reports
• Assignment to site by means of satellite map display
• Direct display of actual milling width
ECONOMY
REDUCED DIESEL CONSUMPTION
• Extended range of usable milling drum speeds
• Maximum use of engine power in the low engine speed range
• Start-stop engine feature via exterior control panel
• Intelligent dual fan concept
ENVIRONMENTALLY SUSTAIN-ABLE MACHINE TECHNOLOGY
• Maximum exhaust gas purification for low exhaust emissions
• Reduced noise emissions during repositioning
• Optimized VCS extraction system
• Efficient water management
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Specifications
- Additional Addon Weights Operator And Tools - 5 Pick Container: 275 lbs (125 kg)
- Additional Addon Weights Operator And Tools - On-Board Tools: 65 lbs (30 kg)
- Additional Addon Weights Operator And Tools - Operator: 165 lbs (75 kg)
- Driving Performance - :
- Driving Performance - Max. Travel and Milling Speed: 0 to 330 ft/min (3.7 mph) | 0 to 100 m/min (6 km/h)
- Electrical System - :
- Electrical System - Voltage Supply: 24 V
- Engine - Cooling: water
- Engine - Displacement: 4 gal (15 l)
- Engine - Exhaust Emission Standard: US EPA Tier 4f
- Engine - Fuel Consumption at Rated Power | Fuel Consumption, Field Mix: 32.5 gal/h (123 l/h) | 12.5 gal/h (49 l/h)
- Engine - Manufacturer: CUMMINS
- Engine - Maximum Power at 1,900 rpm: 470 kW | 630 HP | 639 PS
- Engine - Number of Cylinders: 6
- Engine - Rated Power at 2,100 rpm: 470 kW | 630 HP | 639 PS
- Engine - Sound Power Level in Accordance with DIN EN 500-2 Engine | Operator’s Stand: ≤ 111 dB(A) | ≥ 80 dB(A)
- Engine - Type: QSX 15
- Filling Capacities - AdBlue®/DEF *2: 25 gal (95 l)
- Filling Capacities - Fuel: 317 gal (1,200 l)
- Filling Capacities - Hydraulic Oil: 22.5 gal (85 l)
- Filling Capacities - NOTE: *2 = AdBlue® is a registered trademark of Verband der Automobilindustrie (VDA) e. V. (German Association of the Automotive Industry).
- Filling Capacities - Water: 865 gal (3,270 l)
- Loading Of The Milled Material - Belt Width of Discharge Conveyor: 2 ft 9 in (850 mm)
- Loading Of The Milled Material - Belt Width of Primary Conveyor: 2 ft 9 in (850 mm)
- Loading Of The Milled Material - Theoretical Capacity of Discharge Conveyor: 490 yd³/h (375 m³/h)
- Milling Drum - Cutting Diameter: 3 ft 4 in (1,020 mm)
- Milling Drum - Milling Depth *1: 0 to 1 ft 1 in (0 to 330 mm)
- Milling Drum - Milling Width, optional 1: 4 ft 11 in (1,500 mm)
- Milling Drum - Milling Width, optional 2: 6 ft 7 in (2,000 mm)
- Milling Drum - Milling Width, standard: 7 ft 3 in (2,200 mm)
- Milling Drum - NOTE: *1 = The maximum milling depth may deviate from the value indicated due to tolerances and wear.
- Optional Additional Equipment - Extension of LEVEL PRO ACTIVE with levelling booms and one Sonic Ski sensor: 100 lbs (75 kg)
- Optional Additional Equipment - Extension of LEVEL PRO ACTIVE with one hydraulic sensor mounted on the right: 140 lbs (65 kg)
- Optional Additional Equipment - Extension of LEVEL PRO ACTIVE with two hydraulic sensors mounted on the right and left: 250 lbs (110 kg) US standard
- Optional Additional Equipment - Extension of MCS BASIC with a hydraulically opening side door for FB2000 or FB 2200: 300 lbs (140 kg) US standard
- Optional Additional Equipment - Large storage compartment at the rear of the machine for 69 pick containers: 330 lbs (150 kg)
- Optional Additional Equipment - Two-piece additional weight with a total weight of 3,500 lbs (1,600 kg): 3,500 lbs (1,600 kg) US standard
- Optional Additional Equipment - VCS extraction system: 300 lbs (140 kg) US standard
- Optional MCS Milling Drums In Lieu Of Standard - Milling Drum MCS BASIC FB2000 HT22 LA15 with 162 Picks: 550 lbs (250 kg)
- Optional MCS Milling Drums In Lieu Of Standard - Milling Drum MCS BASIC FB2000 HT22 LA18 with 146 Picks: 500 lbs (225 kg)
- Optional MCS Milling Drums In Lieu Of Standard - Milling Drum MCS BASIC FB2200 HT22 LA15 with 176 Picks: 1,050 lbs (470 kg) US standard
- Optional MCS Milling Drums In Lieu Of Standard - Milling Drum MCS BASIC FB2200 HT22 LA18 with 155 Picks: 750 lbs (340 kg)
- Optional Milling Drum Units In Lieu Of Standard - Quick-Change Milling Drum Unit FB2000 MCS BASIC: 1,500 lbs (670 kg)
- Optional Milling Drum Units In Lieu Of Standard - Quick-Change Milling Drum Unit FB2200 MCS BASIC: 2,000 lbs (920 kg) US standard
- Track Units - :
- Track Units - Track Units, Front and Rear (L x W x H): 5 ft 8 in x 11.8 in x 2 ft | 1,730 x 300 x 610 mm
- Weight Of Machine – Basic - Empty Weight of Machine Excluding Operating Fluids: 58,100 lbs (26,400 kg)
- Weight Of Machine – Basic - Maximum Operating Weight (Full Tanks, Full Range of Equipment) in FB2200: 77,200 lbs (35,100 kg)
- Weight Of Machine – Basic - NOTE: *3 = Weight of machine, half weight of all operating materials, machine operator, on-board tools, no optional equipment features
- Weight Of Machine – Basic - Operating Weight, CE *3: 63,150 lbs (28,700 kg)
- Weight Of Machine – US Standard - Empty Weight of Machine Excluding Operating Fluids: 65,500 lbs (29,800 kg) US standard
- Weight Of Machine – US Standard - Shipping Weight, US Standard (Full Fuel Tanks, Without Water): 68,300 lbs (31,100 kg)
- Weights Of Operating Fluids - AdBlue®/DEF *2 9.2 lbs/gal (1.1 kg/l): 230 lbs (105 kg)
- Weights Of Operating Fluids - Fuel 6.9 lbs/gal (0.83 kg/l): 2,200 lbs (1,000 kg)
- Weights Of Operating Fluids - Water: 7,200 lbs (3,270 kg)
