Wirtgen W100Fi
| Make | Wirtgen |
| Model | W100Fi |
| Type | Compact Milling Machines |
How can we help?
Description

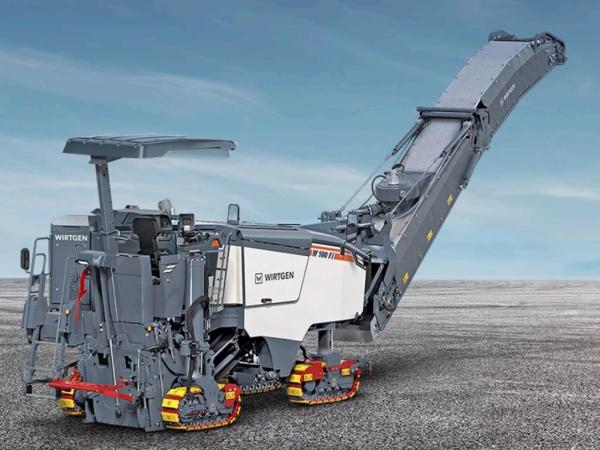

WIRTGEN W100Fi — COMPACT COLD MILLING MACHINES
COMPACT MILLING MACHINES
The highly flexible compact milling machines combine the advantages of the small and large milling machine classes. The maneuverable front-loaders are easy to transport and are ideal for use on confined job sites. These powerful machines can mill off entire asphalt pavements cost-effectively. A wide range of different milling drums is available, greatly extending the possible range of applications so that the milling of individual layers and fine milling operations are also among the everyday tasks of these machines.
INNOVATION AND SUSTAINABILITY FOR A WIDE RANGE OF MILLING JOBS
The front loader in the one-meter class is characterized by its outstanding performance and flexibility at working widths of 3 ft 3 in (1.0 m), 3 ft 11 in (1.2 m), or 4 ft 3 in (1.3 m). Compact dimensions and optimized machine weight make ideal for a wide range of applications – including on job sites with limited space, such as in urban areas. Switching FCS milling drums with different tool spacings and different working widths allows the milling machine to be used for a wide range of additional applications. The cutting-edge LEVEL PRO ACTIVE leveling system, the intuitive operating concept, and additional digital assistance systems enable efficient handling and precise milling results with only one operator. The innovative MILL ASSIST machine control system ideally combines sustainable and efficient machine operation with high productivity.
FEATURES

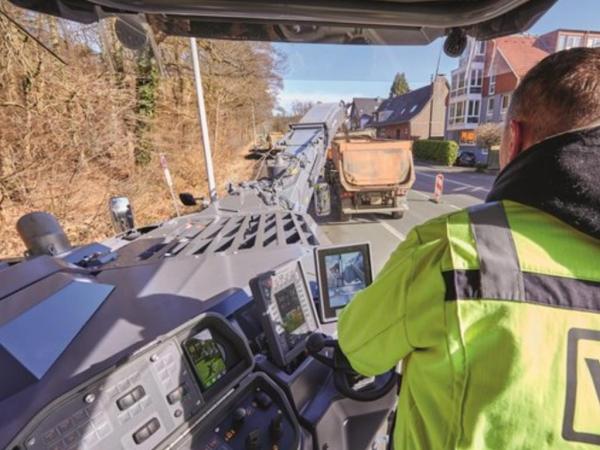

COMFORT AND VISIBILITY
Second-To-None Visibility
• High-quality camera / monitor system with two or five cameras
• Powerful complete LED lighting package
• Operator’s platform with lateral shift function for optimal vision along the zero side
Perfect Comfort and Ergonomics
• Platform design with perfect ergonomics for a high level of operator comfort and well-being
• State-of-the-art operator’s cabin for highest levels of comfort and productivity (optional)
• The large 5-inch control screen in the multi-functional armrest displays essential information
• Ergonomic access with automatic height adaptation
• External control panel with frequently used machine functions
• Ample storage space
• Smart vandalism protection concept for control units
ASSISTANCE AND LEVELING SYSTEMS
Precise Leveling with LEVEL PRO ACTIVE
• Innovative LEVEL PRO ACTIVE leveling system
• Optimized multiplex system
• Optimized 3D and laser leveling
• Leveling boom with Sonic Ski sensor on one or both sides
• Copy Slope Sensor – active transverse leveling via front lifting columns
Informative WPT – WIRTGEN PERFORMANCE TRACKER
• Field-tested WITOS FleetView telematics system with optional WPT
• Direct display of truck loading
• Clear site documentation
• Quick and exact site accounting
Intuitive Assistance Systems
• MILL ASSIST automatic mode with additional pre-selection of operating strategy
• Automatic raising of scraper blade and side plates when necessary
• Automatic front pendulum stroke control
• Active Conveyor
• Active Lift Up
• Active Transport Control

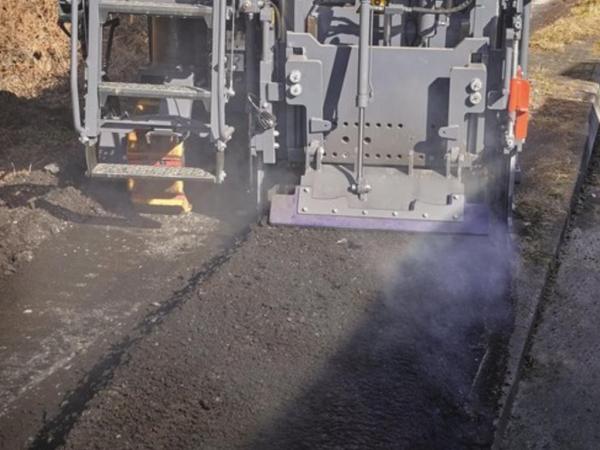

MILLING AND LOADING
Superior Cutting Technology Boosts Performance
• Extremely hard-wearing HT22 quick-change toolholder system with field-proven HT22 PLUS upper part
• Optimized side plate control at right by two hydraulic cylinders
• New type of material scraper for optimal milling without full or partial loading of material
• Program for protection of edge rings when milling in bends
• Quick pick changing

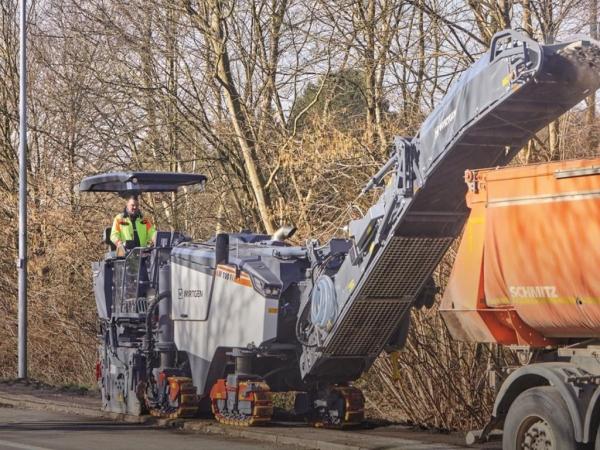

Maximum Loading Capacity
• Extremely large conveyor slewing angle of 65° to the left and right
• Two conveyor slewing speeds
• Higher belt cleat profile for increased conveyor capacity
• “Booster” function for temporarily increased discharge trajectory
PERFORMANCE AND SERVICE
Performance Meets Efficiency
• State-of-the-art John Deere engine with specially optimized torque curve for cold milling
• Extended milling drum rotation speed range for a wide range of cost-efficient milling applications
• Wide-opening hydraulic engine cowling for easy maintenance
• Rugged electrics concept with CAN bus reserve circuits

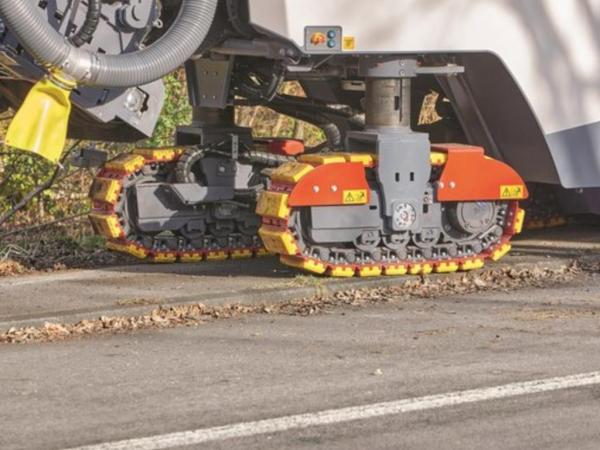

DRIVING AND STEERING
Fast and Dynamic Maneuvering
• ISC – intelligent speed control for minimal track slip
• Fast machine height adjustment
• Dynamic maneuvering at travel speeds of up to 4.7 mph (7.5 km/h)
• Easily mounted 1,036 lbs (470 kg) additional weight
ENVIRONMENT AND SUSTAINABILITY
Minimal Environmental Impact for the Future
• Dynamic engine control assistant for low Co2 emissions
• Two-part water spray bar with performance-dependent injection for minimal water consumption
• Fuel-saving, low-noise dual fan concept
• Optimized, effective VCS extraction system
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Specifications
- Additional Weight Operator And Tools - 5 Pick Containers: 276 lbs (125 kg)
- Additional Weight Operator And Tools - Machine Operator: 165 lbs (75 kg)
- Additional Weight Operator And Tools - Vehicle Tool Kit: 66 lbs (30 kg)
- Additional Weight Optional Milling Drum Units Instead Of Standard - Milling Drum Housing FB1000 (3 ft 3 in) FCS : 617 lbs (280 kg)
- Additional Weight Optional Milling Drum Units Instead Of Standard - Milling Drum Housing FB1200 (3 ft 11 in) FCS :
- Additional Weight Optional Milling Drum Units Instead Of Standard - Milling Drum Housing FB1300 (4 ft 3 in) FCS :
- Additional Weight Optional Milling Drums Instead Of Standard - FCS Milling Drum FB1000 (3 ft 3 in) HT22 PLUS LA15 with 95 picks: -176 lbs (-80 kg)
- Additional Weight Optional Milling Drums Instead Of Standard - FCS Milling Drum FB1200 (3 ft 11 in) HT22 PLUS LA15 with 109 picks:
- Additional Weight Optional Milling Drums Instead Of Standard - FCS Milling Drum FB1300 (4 ft 3 in) HT22 PLUS LA15 with 115 picks:
- Additional Weight Optional Milling Drums Instead Of Standard - Milling Drum FB1000 (3 ft 3 in) HT22 PLUS LA18 with 88 picks: 132 lbs (-60 kg)
- Additional Weight Optional Milling Drums Instead Of Standard - Milling Drum FB1200 FCS (3 ft 11 in) HT22 PLUS LA18 with 100 picks:
- Additional Weight Optional Milling Drums Instead Of Standard - Milling Drum FB1300 FCS (4 ft 3 in) HT22 PLUS LA18 with 105 picks:
- Driving Performance - Max. Milling Speed: 0-197 ft/min (0-2.2 mph) (0-60 m/min (0-3.6 km/h))
- Driving Performance - Max. Transport Speed : 0-410 ft/min (0-4.7 mph) (0-125 m/min (0-7.5 km/h))
- Electrical System - :
- Electrical System - Power Supply: 24 V
- Engine - Cooling: Water
- Engine - Displacement: 549 in³ (9.0 l)
- Engine - Emission Standards: EU Stage 5 / US EPA Tier 4f
- Engine - Fuel Consumption at Rated Power | at a mixture of job site operations: 16.6 gal/h (62.7 l/h) | 6.6 gal/h (25.1 l/h)
- Engine - Manufacturer: John Deere
- Engine - Maximum Power at 1,900 rpm: 265 kW / 355 HP / 360 PS
- Engine - Number of Cylinders: 6
- Engine - Rated Power at 2,100 rpm : 260 kW / 349 HP / 354 PS
- Engine - Sound power level in accordance with DIN EN 500-2 engine | operator's platform: ≤ 107 dB(A) | ≥ 90 dB(A)
- Engine - Type: 6090HD-S5-PVR
- Loading Of Milled Material - Belt Width of Discharge Conveyor: 2 ft (600 mm)
- Loading Of Milled Material - Belt Width of Primary Conveyor: 2 ft 2 in (650 mm)
- Loading Of Milled Material - Theoretical Capacity of Discharge Conveyor: 230.2 yd³/h (176 m³/h)
- Milling Drum - Cutting Diameter: 3 ft 3 in (980 mm)
- Milling Drum - Milling Depth*1: 13 in (0-330 mm)
- Milling Drum - Milling Width: 3 ft 3 in (1,000 mm)
- Optional Additional Equipment - 4 Motorized Wheeled Chassis Instead of Crawler Units: 3,087 lbs (-1,400 kg)
- Optional Additional Equipment - Additional Weights : 1,036 1bs (470 kg)
- Optional Additional Equipment - Air Compressor System: 99 lbs (45 kg)
- Optional Additional Equipment - Foldable Signal Lights: 88 lbs (40 kg)
- Optional Additional Equipment - Hydraulically Lowering Weather Canopy Instead of Standard: 562 lbs (255 kg)
- Optional Additional Equipment - Leveling Boom Including Sensor for LEVEL PRO ACTIVE Leveling System: 106 lbs (48 kg)
- Optional Additional Equipment - Operator's Platform with Air-Conditioned Comfort Cabin Instead of Standard: 937 lbs (425 kg)
- Optional Additional Equipment - Powerful High-Pressure Water Cleaner, 2,176 psi (150 bar), 4 gal/min (15 l/min): 93 lbs (42 kg)
- Optional Additional Equipment - Shortened Discharge Conveyor, 6,500 mm long, 600 mm wide, with Hydraulic Folding Device: -99 lbs (-45 kg)
- Optional Additional Equipment - Upgrade of LEVEL PRO ACTIVE with Two Leveling Booms and One Sonic-Ski Sensor: 170 lbs (77 kg)
- Optional Additional Equipment - VCS Extraction System: 165 lbs (75 kg)
- Tank Capabilities - AdBlue/DEF: 11.6 gal (44 l)
- Tank Capabilities - Fuel: 161.1 gal (610 l)
- Tank Capabilities - Hydraulic Oil: 30.4 gal (115 l)
- Tank Capabilities - Water: 369.8 gal (1,400 l)
- Track Units - Tire Size, front / rear (D x W): 2 ft 2 in x 11 in (660 x 280 mm)
- Track Units - Track Chains, front/back (L x W x H): 4 ft 6 in x 10 in x 23 in (1,360 x 260 x 584 mm)
- Weight Of Standard Machine - Empty weight of Machine without Fluids: 41,667 lbs (18,900 kg)
- Weight Of Standard Machine - Maximum Operating Weight (full tanks, full range of equipment): 50,155 lbs (22,750 kg)
- Weight Of Standard Machine - Operating Weight CE*2: 44,093 lbs (20,000 kg)
- Weight Of Tank Contents - AdBlue/DEF (9.2 lbs/gal (1.1 kg/l)): 106 lbs (48 kg)
- Weight Of Tank Contents - Fuel (6.9 lbs / (0.83 kg/l)): 1,116 lbs (506 kg)
- Weight Of Tank Contents - Water: 3,087 lbs (1,400 kg)
