Hamm HP 180i
| Make | Hamm |
| Model | HP 180i |
| Type | Series HP |
How can we help?
Description
Highlights
-
Intelligent ballasting concept for flexible adjustment of the machine weight to the application
-
Excellent view of tires, machine and construction site
-
Simple, intuitive and language-neutral control
-

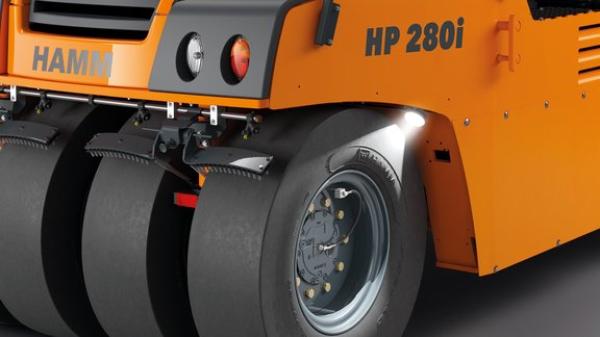

High compaction and surface quality due to even weight distribution and tire overlap of the front and rear wheel pairs
-

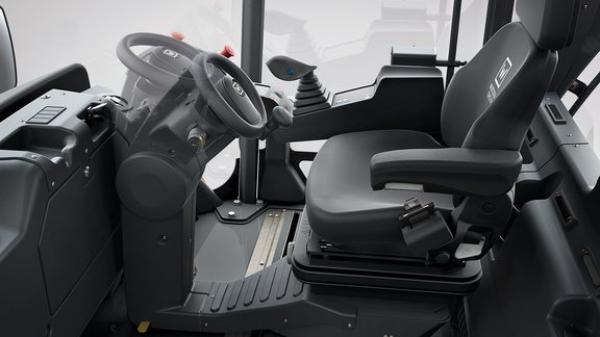

Seat-operating unit can be moved and rotated
Models

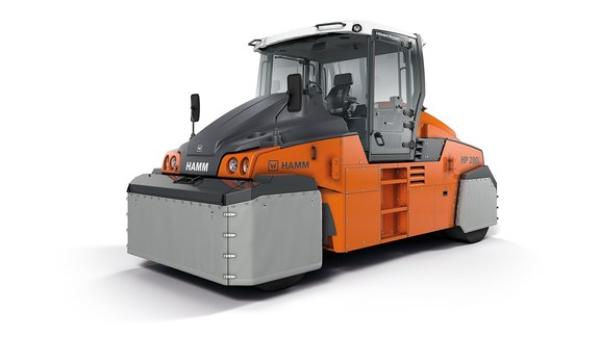

Ballasting
For pneumatic tire rollers in the HP series, HAMM offers a flexible ballasting concept that can be used quickly and easily on construction sites. Two large ballast chambers between the wheel sets provide a foundation for ballasting. Here, pre-made ballast bodies made of steel, heavy concrete or concrete can be inserted or removed using a forklift truck, for instance. The different ballasting variants therefore allow for a high degree of flexibility when selecting the wheel load, which, alongside the inner tire pressure and roller speed, is key to compaction force and depth.
Easy Drive
Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardized operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tire rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.
HAMMTRONIC
HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.
Specifications
- BASIC DATA - Description: Pneumatic-tire roller
- BASIC DATA - Exhaust emissions category: EU Stage V / EPA Tier 4
- BASIC DATA - Name: HP 180i
- BASIC DATA - Series: HP
- DIESEL ENGINE - Cylinders, quantity: 4
- DIESEL ENGINE - Exhaust emission standard: EU Stage V / EPA Tier 4
- DIESEL ENGINE - Exhaust gas after-treatment: DOC-DPF
- DIESEL ENGINE - Manufacturer: DEUTZ
- DIESEL ENGINE - Model: TCD 3.6 L4
- DIESEL ENGINE - Power ISO 14396, HP: 75.3 HP
- DIESEL ENGINE - Power ISO 14396, kW: 55.4 kW
- DIESEL ENGINE - Power ISO 14396, rpm: 2,000 rpm
- MACHINE DIMENSIONS - Center distance: 153.5 in
- MACHINE DIMENSIONS - Ground clearance, center: 11.8 in
- MACHINE DIMENSIONS - Maximum working width: 82 in
- MACHINE DIMENSIONS - Total height with cab: 118.1 in
- MACHINE DIMENSIONS - Total height with ROPS: 117.6 in
- MACHINE DIMENSIONS - Total length: 195.7 in
- MACHINE DIMENSIONS - Total width with cab: 85.3 in
- MACHINE DIMENSIONS - Turning radius, inside: 244.1 in
- SOUND LEVEL - Acoustic power LW(A), measured: 97 db(A)
- SOUND LEVEL - Sound power level L(WA), guaranteed: 100
- STEERING - Oscillation angle +/-: 2 °
- STEERING - Steering, type: Two-point steering
- TANK CAPACITY/FILLING CAPACITY - Additive tank, capacity: 7.4 gal
- TANK CAPACITY/FILLING CAPACITY - Fuel tank, capacity: 62.1 gal
- TANK CAPACITY/FILLING CAPACITY - Water tank, capacity: 171.7 gal
- TIRE DIMENSIONS - Number of tires, front: 4
- TIRE DIMENSIONS - Number of tires, rear: 4
- TIRE DIMENSIONS - Tire size, front: 11.00-R20
- TIRE DIMENSIONS - Tire size, rear: 11.00-R20
- TIRE DIMENSIONS - Width over tires, front: 72 in
- TIRE DIMENSIONS - Width over tires, rear: 72 in
- TRAVEL DRIVE - Climbing ability, with ballast: 25 %
- TRAVEL DRIVE - Climbing ability, without ballast: 35 %
- TRAVEL DRIVE - Regulation, infinitely variable: HAMMTRONIC
- TRAVEL DRIVE - Speed, infinitely variable: 0,0-9,3
- WATER-SPRINKLING SYSTEM - Water sprinkling, type: Pressure
- WEIGHTS - Empty weight without cab, without ROPS: 16,085 lbs
- WEIGHTS - Max. wheel load per tire, front: 4,763 lbs
- WEIGHTS - Max. wheel load per tire, rear: 4,342 lbs
- WEIGHTS - Min. wheel load per tire, front: 2,205 lbs
- WEIGHTS - Min. wheel load per tire, rear: 2,489 lbs
- WEIGHTS - Operating weight with cab: 18,776 lbs
- WEIGHTS - Operating weight with ROPS: 18,224 lbs
