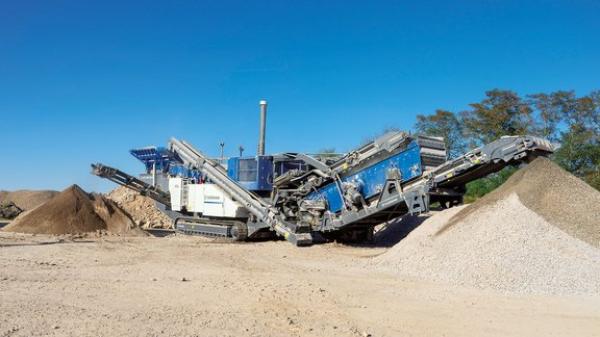

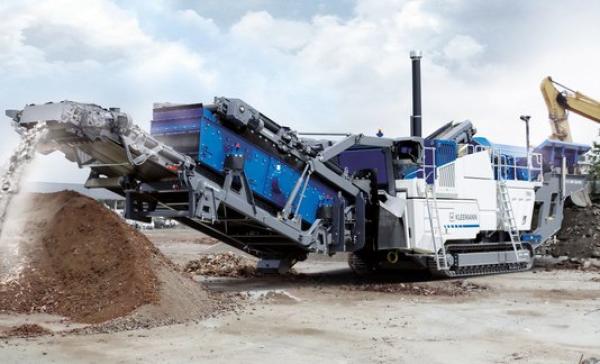

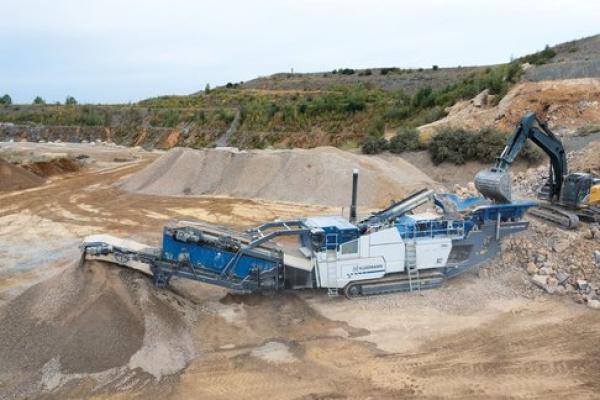

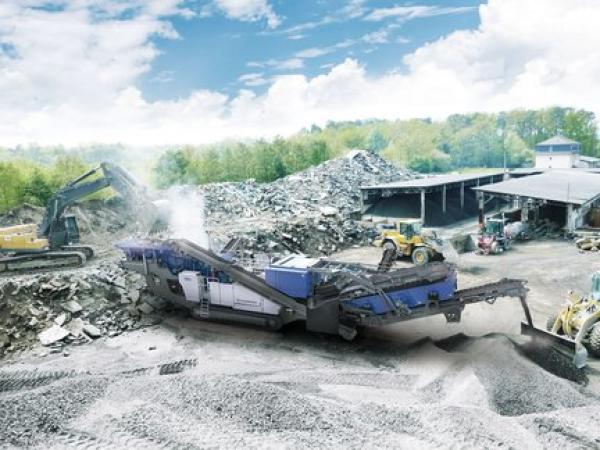

Intuitive control concept SPECTIVE - for simple operation

The easy-to-operate control concept SPECTIVE allows the machines to be operated at a touch panel. All components and functions can be controlled comfortably from the ground.

SPECTIVE guides the operator step by step through the starting procedure. The start screen provides a graphical view of the plant with all adjustable functions at a glance. When the desired function is selected, clear instructions guide users through all operating steps. If a fault occurs, a fault diagnosis appears on the display. Fault localization, the description and remedy tips result in reduced downtimes. The 12" touch panel is resistant to dust and always easy to read thanks to the light intensity and high contrast. It reacts to fingers, pen or gloves.

Innovative diesel-electric drive concept - impressive performance with the best possible consumption values

The crushing plants are equipped with efficient, powerful diesel-electric drives. They ensure environmentally friendly operation combined with low fuel consumption.

Efficient and powerful diesel-electric drive (A) for low fuel consumption (crusher and all conveyor belts are driven electrically)

External power supply (B) for even more cost-effective use in quarries

Continuous Feed System (CFS)

Uniform loading is indispensable for a good product, optimum throughput and low wear.

To ensure that the crushing chamber is always evenly filled, the Continuous Feed System (CFS) monitors the crusher level (jaw crusher and cone crusher) or the load at the rocker and rotor as well as the motor utilization (impact crusher).

Independently of this, the CFS regulates the frequency of the vibrating feeder and prescreen. A backlog on the prescreen is thus avoided and crusher utilization is optimized. When the crushing chamber is free again after overloading, material transport is continued without a delay.

The CFS facilitates the work of the operator because the machine automatically guarantees a homogeneous material flow, thus ensuring optimum loading of the crusher.

SPECTIVE CONNECT

All relevant data at a glance
> Dashboard
> Camera live image
> Reporting
> Messages and troubleshooting aids
> Overview of all plants in the train

The operator can remain in the excavator/wheel loader
> No interruption to the work process
> Increase in work safety

Specifications

• CRUSHER - Crusher capacity: 335 hp
• CRUSHER - Crusher drive type: electric
• CRUSHER - Crusher inlet (W x H): 52 in x 36 in
• CRUSHER - Crusher inlet width: 52 in
• CRUSHER - Crusher weight (approx.): 37,500 lbs
• CRUSHER - Impact crusher type: SHB130-090
• CRUSHER - Rotor diameter: 47 in
• CRUSHER - Type of impact toggle adjustment: stepless, fully hydraulic
• CRUSHER DISCHARGE CONVEYOR - Crusher discharge conveyor length: 39 ft 8 in
• CRUSHER DISCHARGE CONVEYOR - Discharge height approx.: 14 ft 5 in
• CRUSHER DISCHARGE CONVEYOR - Width: 56 in
• CRUSHING CAPACITY - Crushing capacity for demolished asphalt up to approx.: 243 US t/hr
• CRUSHING CAPACITY - Crushing capacity for demolished concrete up to approx.: 441 US t/hr
• CRUSHING CAPACITY - Crushing capacity for limestone up to approx.: 441 US t/hr
• CRUSHING CAPACITY - Crushing capacity for mixed rubble up to approx.: 496 US t/hr
• DOUBLE-DECK POST SCREENING UNIT - Fine grain conveyor discharge height [Imperial]: 12 ft x 6 in
• DOUBLE-DECK POST SCREENING UNIT - Length: 18 ft 1 in
• DOUBLE-DECK POST SCREENING UNIT - Oversize grain return conveyor width inches [Imperial]: 26 in
• DOUBLE-DECK POST SCREENING UNIT - Return conveyor length [Imperial]: 36 ft 9 in
• DOUBLE-DECK POST SCREENING UNIT - Side discharge conveyor (medium grain) discharge height: 11 ft x 2 in
• DOUBLE-DECK POST SCREENING UNIT - Side discharge conveyor (medium grain) length: 22 ft x 4 in
• DOUBLE-DECK POST SCREENING UNIT - Side discharge conveyor (medium grain) width: 26 in
• DOUBLE-DECK POST SCREENING UNIT - Type: Double-deck light-piece screen
• FEEDING UNIT - Feed height: 14 ft 8 in
• FEEDING UNIT - Feed height with extension: 15 ft 11 in
• FEEDING UNIT - Hopper length: 12 ft 2 in
• FEEDING UNIT - Hopper length with extension: 12 ft 2 in
• FEEDING UNIT - Hopper volume: 6.5 yd³
• FEEDING UNIT - Hopper volume with extension: 11.8 yd³
• FEEDING UNIT - Hopper width: 7 ft 5 in
• FEEDING UNIT - Hopper width with extension: 9 ft 10 in
• FEEDING UNIT - Max. feed size: 41 in x 26 in x 16 in
• POWER SUPPLY UNIT - Drive concept: E-DRIVE (Diesel-electric)
• POWER SUPPLY UNIT - Generator: 550 kVA
• POWER SUPPLY UNIT - Power pack manufacturer: Scania
• POWER SUPPLY UNIT - Power supply unit output: 641 hp - 2100 hp
• POWER SUPPLY UNIT - Rated speed: 2,100 rpm
• PRIMARY SCREENING - Type: Double-deck heavy-piece screen
• PRIMARY SCREENING - Width x length: 3 ft 12 in x 7 ft 10 in
• SIDE DISCHARGE CONVEYOR - Discharge height: 11 ft 9 in
• SIDE DISCHARGE CONVEYOR - Discharge height (hydraulically foldable): 11 ft x 2 in
• SIDE DISCHARGE CONVEYOR - Length: 21 ft 8 in
• SIDE DISCHARGE CONVEYOR - Length (hydraulically foldable) [Imperial]: 19 ft x 8 in
• SIDE DISCHARGE CONVEYOR - Width: 26 in
• TRANSPORT - Transport height approx. (standard value): 12 ft 10 in
• TRANSPORT - Transport length approx.: 68 ft 9 in
• TRANSPORT - Transport length with secondary screening unit approx.: 76 ft 4 in
• TRANSPORT - Transport weight max. configuration approx.: 183,000 lbs
• TRANSPORT - Transport weight of basic plant: 141,150 lbs
• TRANSPORT - Transport weight of screening unit approx.: 28,660 lbs
• TRANSPORT - Transport width approx.: 11 ft 4 in
• TRANSPORT - Transport width with secondary screening unit max.: 11 ft 6 in
• VIBRATING EXTRACTOR - Width x length: 57 in x 8 ft 9 in
• VIBRATING FEEDER - Width x length: 44 in x 8 ft 10 in
