PRINOTH PANTHER T22
| Make | PRINOTH |
| Model | PANTHER T22 |
| Type | Prinoth Tracked Vehicles |
How can we help?
Description

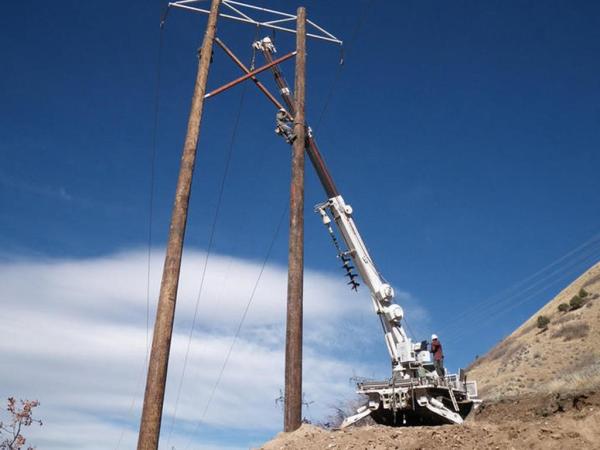

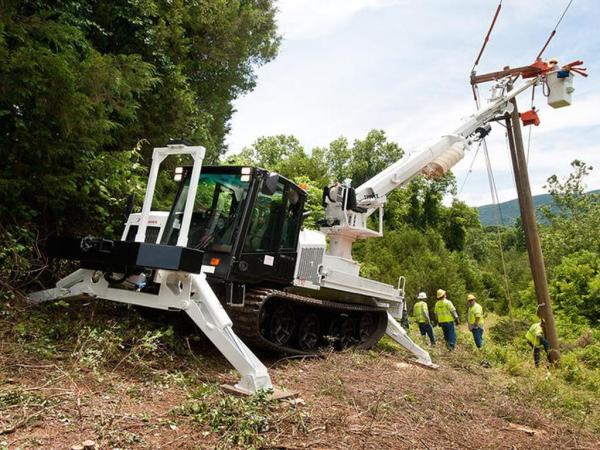

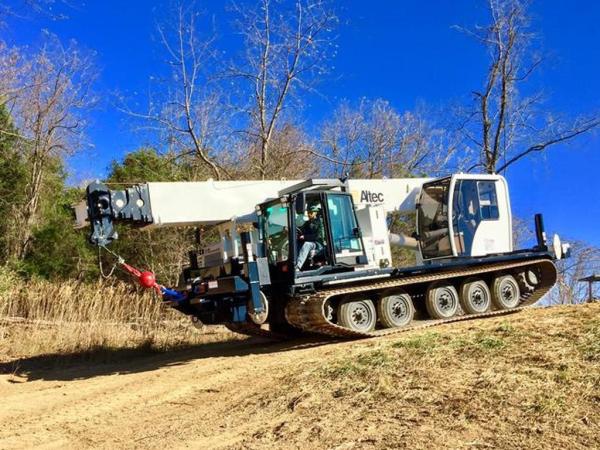

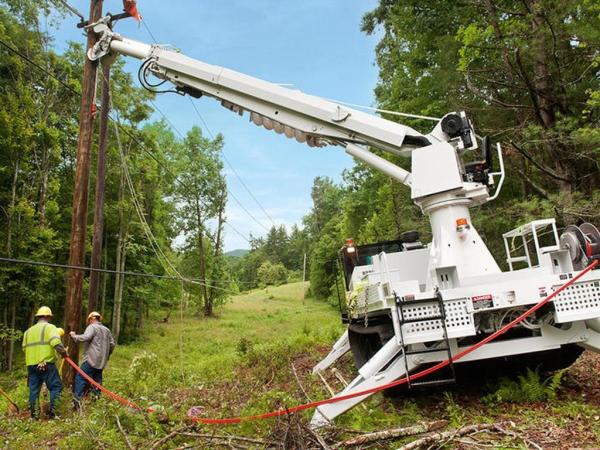

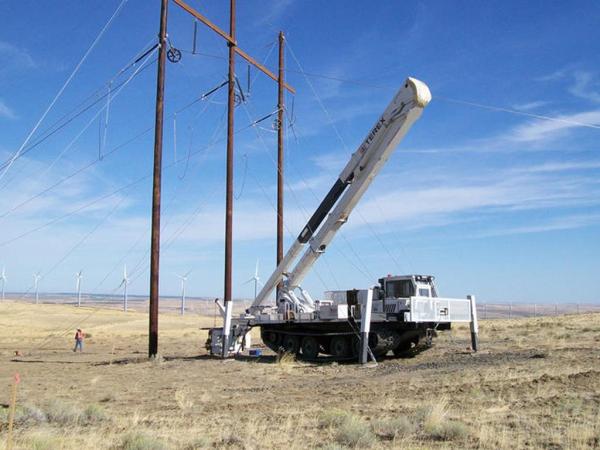

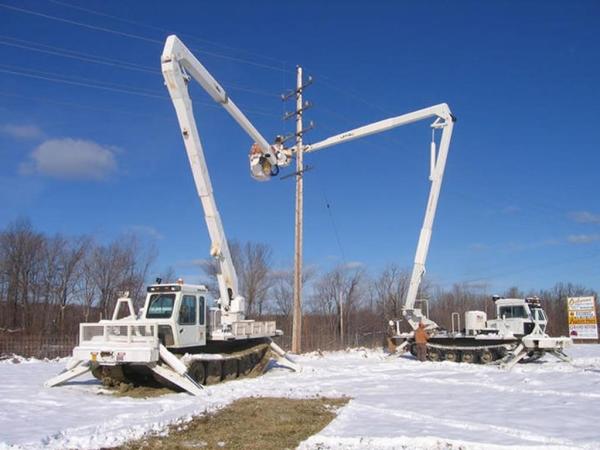

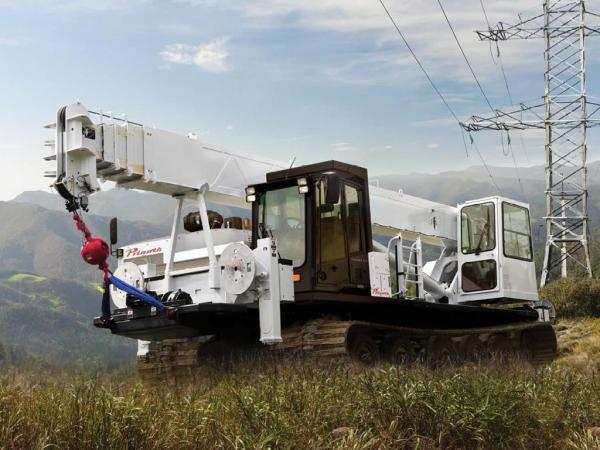

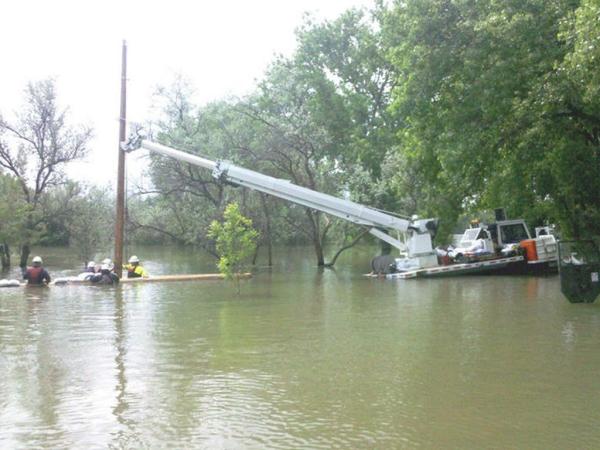

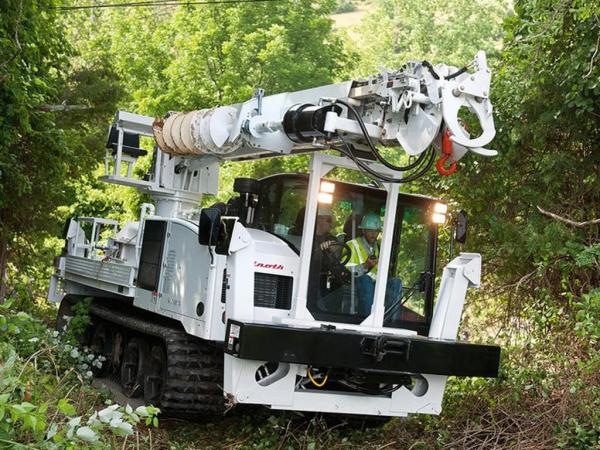

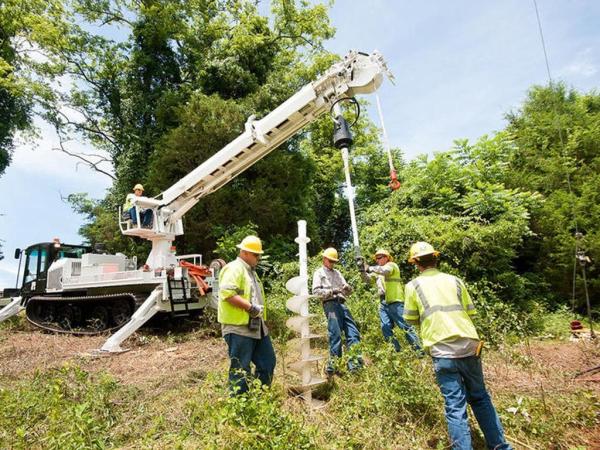

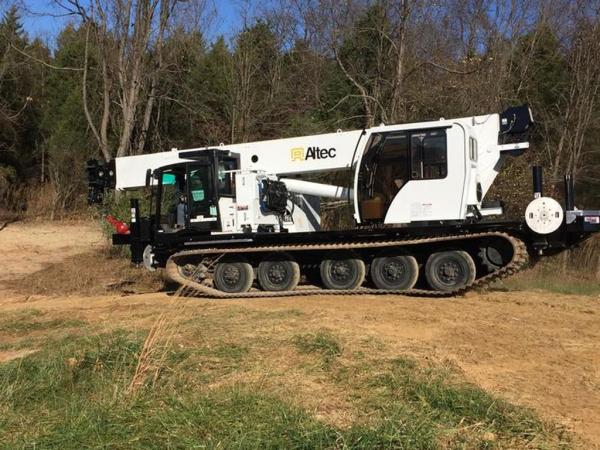

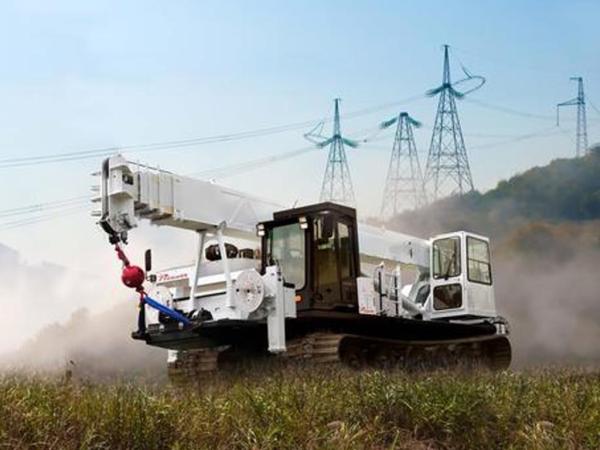

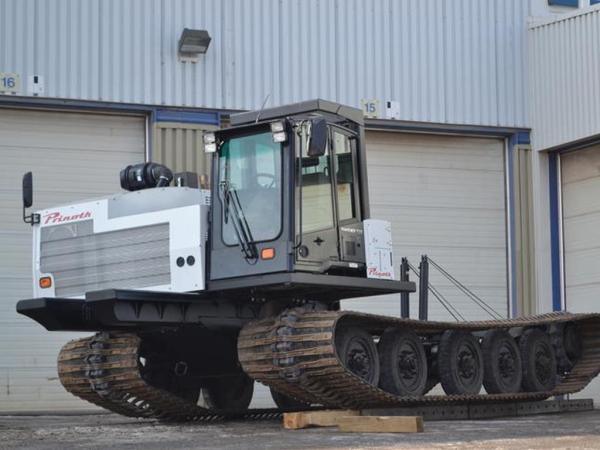

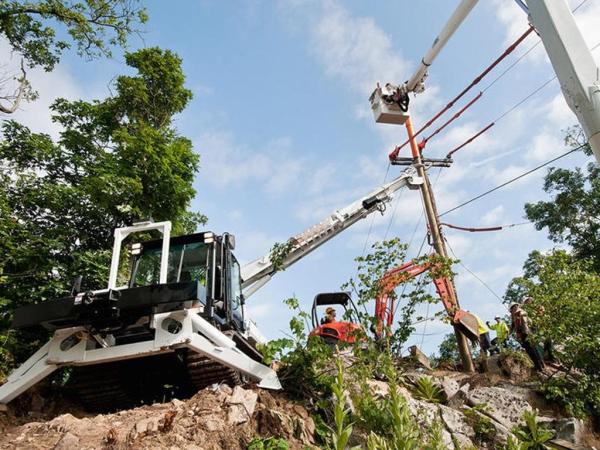

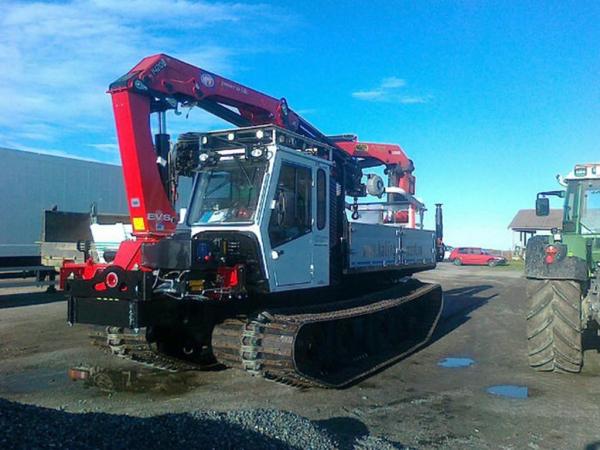

Designed to handle the heaviest loads like cranes with up to 50 tons capacity, man-lift booms up to 52 m (170 feet), large drill rigs, and other heavy utility equipment, the PANTHER T22 tracked carrier has a ground pressure of only 257 g/cm² (4.39 psi) at the maximum GVWR (Gross Vehicle Weight Rating). The PANTHER T22 offers 3.25 m² (35 ft2) more deck space than a PANTHER T16, yet it will fit on a double drop deck trailer and get operators into the most challenging terrain.
Specifications
- ropstype: Enclosed
- TECHNICAL DATA - :
- TECHNICAL DATA - Controls : Microcontroller, steering wheel, progressive speed control
- TECHNICAL DATA - Engine Type / Emission Standard: Turbo diesel, electronic fuel system / EPA Tier 4 Final EU Stage IV
- TECHNICAL DATA - Gradeability - Uphill & Downhill / Sidehill: 60% (31°) / 40% (21°)
- TECHNICAL DATA - Ground pressure basic / loaded vehicle : 138 g/cm² (1.97 psi) / 257 g/cm² (4.39psi)
- TECHNICAL DATA - Maximum speed unloaded : 9.5 km/h (5.9 mph)
- TECHNICAL DATA - Overall Dimensions - mm (inches): Width: 3,479 mm (137 in) / Length: 9,083 mm (357.6 in) / Height: 3,176 mm (125 in)
- TECHNICAL DATA - Payload : 20,865kg (46,000 lb)
- TECHNICAL DATA - Power @ 2200 rpm / Torque @ 1400 rpm : 298 kw (400 hp) / 1,595 N·m (1,777 lb·ft)
- TECHNICAL DATA - Safety features: ROPS & FOPS (option)
- TECHNICAL DATA - Shipping weight : 16,960 kg (37,390 lb)
- TECHNICAL DATA - Track Type: D-dent, hardened steel
